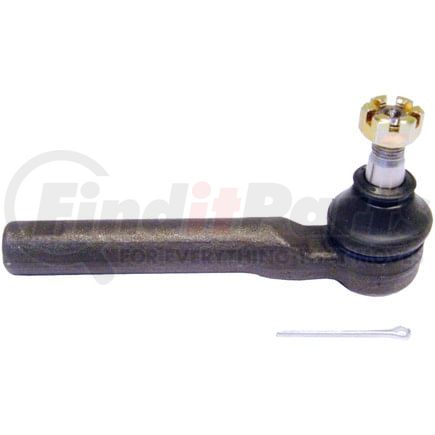

Delphi TA1812 - Tie Rod End
$2399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Front Outer, Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 75.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.827 IN |
| Tube Diameter | 21.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.21 lb |
| Cone Outside Diameter | 15.40 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 5.472 IN |
| Length - Stud Center to End | 139.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.40 MM |
| Stud Length | 15.40 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.606 IN |
| Stud Length | 0.606 IN |
| Cone Outside Diameter | 0.606 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604246160 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-4585
- MOOG Chassis Products ES3712
- Mcquay-Norris ES4251
- Mevotech MES3712
- Deeza SB-T203
- Subaru 34141 AA041
- Subaru 34141 AA042
- Subaru 34161 SA000
- Subaru 34161 SA001
- MAS Industries TO72005
- MAS Industries TO72025
- TRW JTE7575
- Import Direct ER03009
- TRW JTE1322
- 34141 AC0109E
- MES3692
- 534-716
- MS80619
- GES3712
- GES3692
Fits Vehicles
- Saab 9-2X (2005-2006)
- Subaru Ascent (2019-2023)
- Subaru Crosstrek (2016-2023)
- Subaru WRX STI (2013-2021)
- Subaru WRX (2013-2023)
- Subaru XV Crosstrek (2013-2015)
- Subaru Tribeca (2008-2014)
- Subaru B9 Tribeca (2006-2007)
- Subaru Outback (2000-2014, 2020-2023)
- Subaru Legacy (1993-2014, 2020-2023)
- Subaru Impreza (1993-2016)
- Subaru Baja (2003-2006)
- Subaru Forester (1998-2023)
