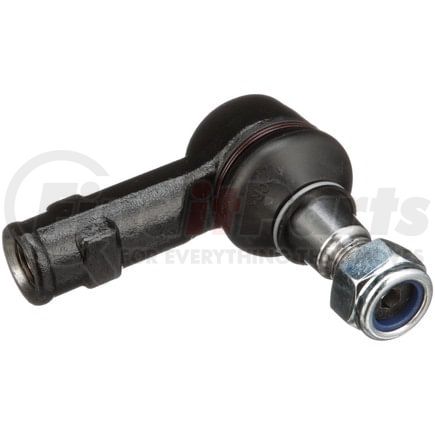

Delphi TA1683 - Tie Rod End
$2099
MSRP: $25.32
Save: $4.33
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 16.00 MM |
| End 2 Thread Diameter | 0.630 IN |
| Height | 86.40 MM |
| Housing Material | Steel |
| Tube Diameter | 23.50 MM |
| Tube Diameter | 0.925 IN |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.16 lb |
| Cone Outside Diameter | 20.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 78.00 MM |
| Length - Stud Center to End | 3.071 IN |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16.00 MM |
| End 1 Thread Diameter | 0.630 IN |
| Shank Length | 20.50 MM |
| Stud Length | 20.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.807 IN |
| Stud Length | 0.807 IN |
| Cone Outside Diameter | 0.807 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604245873 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- MOOG Chassis Products ES3689
- MOOG Chassis Products EV460
- Mcquay-Norris ES4141
- Mevotech MES3689
- Mevotech MEV460
- Chrysler 2D0 422 811
- Chrysler 5104091AA
- Chrysler 901 460 0148
- Chrysler 901 460 0348
- Mercedes-Benz 901 460 0148
- Mercedes-Benz 901 460 0205
- Mercedes-Benz A901 460 0148
- Volkswagen 2D0 422 811
- MAS Industries TO81135
- TRW JAR107
- TRW JTE169
- 534271
- TO81135XL
Fits Vehicles
- Freightliner Sprinter 3500 (2002-2006)
- Freightliner Sprinter 2500 (2002-2006)
- Dodge Sprinter 2500 (2003-2006)
- Dodge Sprinter 3500 (2003-2006)
