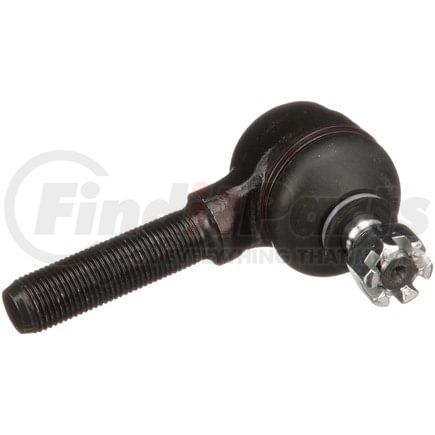

DELPHI TA1544 Tie Rod End

★★★★★ (0)
Delphi TA1544 Steering Tie Rod End Tie Rod End
DELPHI
Tap to view 2 more

MSRP: $19.38

$10.49

Save $8.89

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TA1544 Part Description

Manufacturer

DELPHI

Product Description

Tie Rod End

Features & Benefits

  • Delphi includes the necessary accessories for a complete job
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Delphi tie rods are fatigue tested to avoid failure
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TA1544 Specifications

Product Attributes

Position(s)Left Outer (Steering Arm To Steering Arm), Outer. For the position specific to your vehicle, refer to the Applications.
Item GradeStandard Replacement
ColorBlack
End 1 GenderMale
End 2 GenderMale
Pre-GreasedYes
Grease Fitting IncludedNo
Dust Boot IncludedYes
Width40 MM
TypeStraight
Mounting Hardware IncludedYes
End 2 Thread Diameter0.630 IN
End 2 Thread Diameter16.00 MM
Height67.50 MM
Housing MaterialSteel
Tube Diameter0.630 IN
Tube Diameter16.00 MM
AdjustableNo
GreaseableNo
Weight0.92 lb
Cone Outside Diameter14.00 MM
Bearing MaterialPlastic
End 1 Thread DirectionClockwise (Right)
End 2 Thread DirectionClockwise (Right)
Stud TypeThreaded
End 2 Thread Pitch1.5 MM
Length - Stud Center to End3.622 IN
Length - Stud Center to End92.00 MM
Dust Boot MaterialRubber
Tie Rod MaterialSteel
End 1 Thread Diameter0.472 IN
End 1 Thread Diameter12.00 MM
Shank Length14.00 MM
Stud Length14.00 MM
Grade TypeStandard Replacement
GradePremium
Shank Length0.551 IN
Stud Length0.551 IN
Cone Outside Diameter0.551 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708998175
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708998180
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604245408
VMRS Code015004045
UNSPSC25174205

DELPHI TA1544 Cross References

BrandPart Number
Beck/Arnley101-4773
CORTECO49400646
DORMANT3045, T3045PR, 534-477
General Motors48810-60A00
Import DirectER02013
MAS IndustriesT3045
MOOG Chassis ProductsES3045RL
MevotechMES3045RL
N/A4881077, 48810A60A00, 4881085C00, 534-477, GES3045RL
Suzuki48810-60A00
TRWJTE490

DELPHI TA1544 Fits Vehicles

  • Asuna Sunrunner (1993)
  • Chevrolet Tracker (1989-1991, 1998)
  • GMC Tracker (1989-1991)
  • Geo Tracker (1989-1997)
  • Suzuki Samurai (1986-1995)
  • Suzuki Sidekick (1989-1998)
  • Suzuki Vitara (1999-2002)
  • Suzuki X-90 (1996-1998)
