(888) 312-8812 Login SignupMOOG ES3045RL Steering Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG ES3045RL Part Description
Manufacturer
Product Description

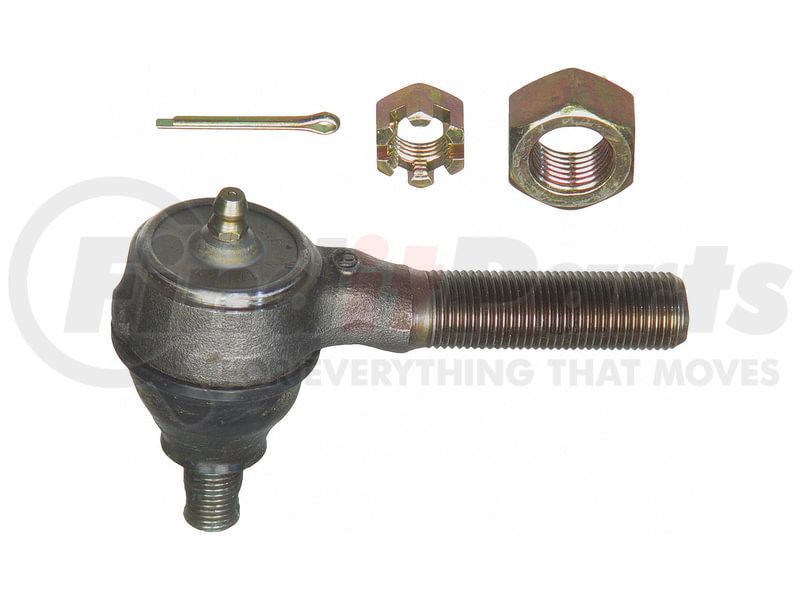

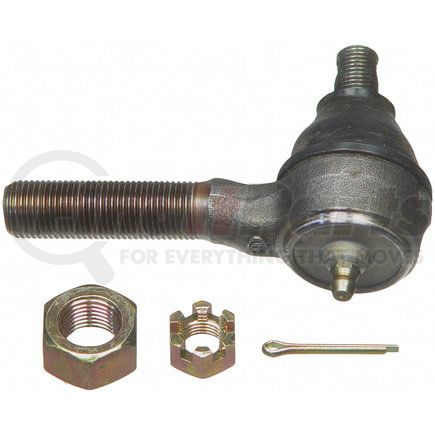

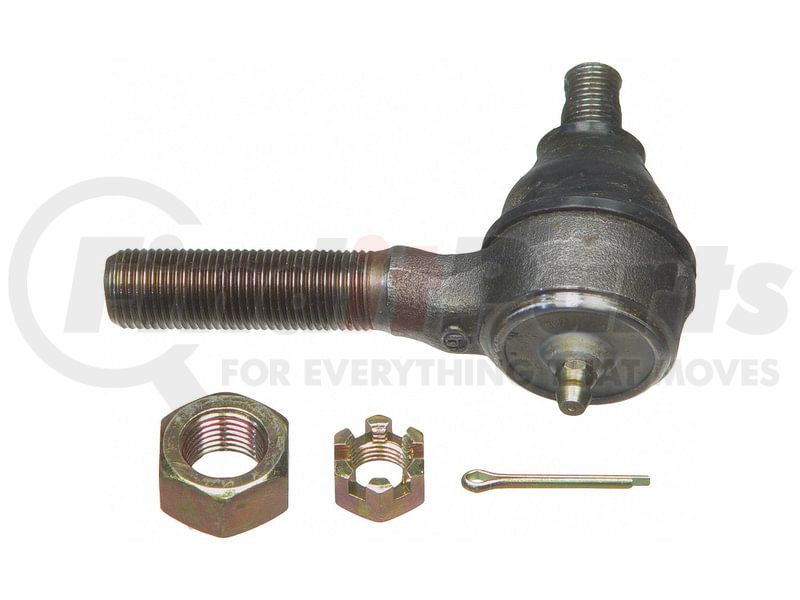

Steering Tie Rod End
Application Summary
1986-1995 Suzuki Samurai (Left Outer (Steering Arm To Steering Arm)); 1989-1998 Suzuki Sidekick (Outer) (Qualifier: Inner and Outer Tie Rod Ends need to be replaced in Pairs, 90 (mm) Long Outer Tie Rod End(s)); 1989-1998 Chevrolet Tracker (Outer) (Qualifier: 90 (mm) Long Outer Tie Rod End(s)); 1989-1991 GMC Tracker (Outer) (Qualifier: 90 (mm) Long Outer Tie Rod End(s)); 1989-1997 Geo Tracker (Outer) (Qualifier: 90 (mm) Long Outer Tie Rod End(s), Inner and Outer Tie Rod Ends need to be replaced in Pairs)
Features & Benefits
- Designed for OE fit and function
- Premium boot keeps out contaminants
- Made of forged alloy steel for durability
- Replacement helps restore vehicle handling
Moog Front Steering, Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, OUTER, SOLD INDIVIDUALLY -- A High Quality Direct Fit OEM Replacement Tie Rod End, Designed To Consistently Produce Just The Right Amount Of Preload To Provide Proper Steering Effort, Housing Is Forged Then Heat-Treated For Strength And Durability, Sealed With A Premium Polychloroprene To Keep Out Dirt, Its Bearings Include Grease Grooves That Ensure Flow Of Lubrication Throughout The PartFront Steering, Outer
MOOG ES3045RL Specifications
Product Attributes
| End 1 Gender | Male |
| End 2 Gender | Male |
| Type | Straight |
| End 2 Thread Diameter | 12.0 MM |
| End 2 Thread Pitch | 1.3 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.580 IN |
| End 1 Thread Diameter | 16.0 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| UPC | 00080066580302 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES3045RL Cross References
| Brand | Part Number |
|---|---|
| 080066195773 | |
| ACDelco | 45A0518, 45A0809 |
| Autospecialty | 03-50009, 350009 |
| Beck/Arnley | 101-3908 |
| DELPHI | TA1544 |
| DORMAN | T3045, T3045PR |
| Dorman | 534-477 |
| Duralast | ES3045R |
| Falcon Steering Systems | ES3045RL |
| Firestone | ES3045RL |
| General Motors | 96058697 , 96058697 |
| MAS Industries | T3045 |
| Mcquay-Norris | ES4038, ES3045R |
| Mevotech | MES3045RL |
| NAPA | ES3045R, 269-2836, 269-3146 |
| Perfect Circle | 269-2836 |
| Raybestos Brakes | 401-1518B, 401-1518, 401-1809 |
| SUSPENSIA | X49TE3897 |
| Sealed Power | 802-3045R |
| Suzuki | 48810-60A00, 48810-88300, 48810-80000, 48810-83300 |
| TRW | ES3045R |
| TRW Steering and Suspension Parts | JTE490, ES3045R |
| VAICO | V640076 |
MOOG ES3045RL Fits Vehicles
- GMC Tracker (1989-1991)
- Geo Tracker (1989-1997)
- Chevrolet Tracker (1989-1991, 1998)
- Suzuki Sidekick (1989-1998)
- Suzuki Samurai (1986-1995)
MOOG ES3045RL Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES3045RL Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG ES3045RL Questions & Answers
No questions yet
Be the first to ask a question about this product!
