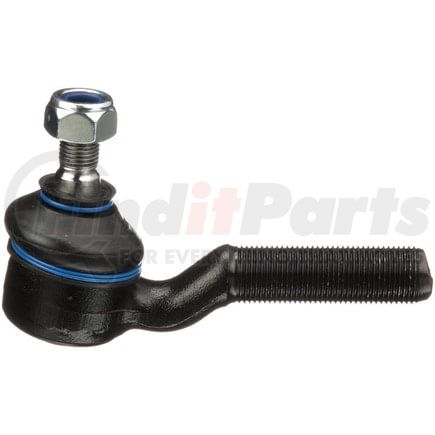

Delphi TA1538 - Tie Rod End
$1999
MSRP: $24.45
Save: $4.46
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 39 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.709 IN |
| End 2 Thread Diameter | 18.00 MM |
| Height | 76.30 MM |
| Housing Material | Steel |
| Tube Diameter | 0.709 IN |
| Tube Diameter | 18.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.03 lb |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.173 IN |
| Length - Stud Center to End | 106.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.00 MM |
| Stud Length | 15.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| Cone Outside Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604245385 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-4037
- MOOG Chassis Products ES2472L
- MOOG Chassis Products ES3052
- Mcquay-Norris ES3052
- Mevotech MES2472L
- Mevotech MES3052
- Deeza NI-S201
- Datsun/Nissan 48520-01G25
- Datsun/Nissan 48520-41W00
- MAS Industries T3052
- TRW JTE692
- Import Direct ER02014
- Import Direct ER02028
- MOOG Chassis Products 101-4037
- 4852001W00
- GES2472L
- GES3052
- T2472
- T2472PR
- TO69345XL
Fits Vehicles
- Nissan 720 (1980-1986)
- Nissan Pickup (1995-1997)
- Nissan D21 (1986-1994)
