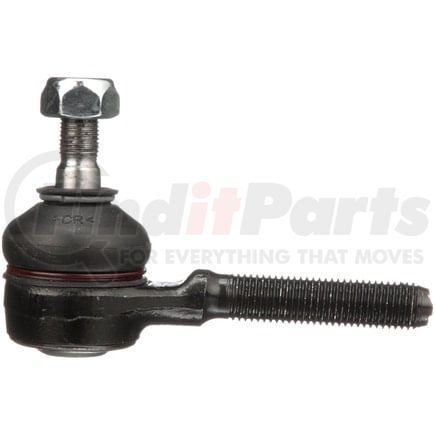

Delphi TA1187 - Tie Rod End
$1699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 34 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 64.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.472 IN |
| Tube Diameter | 12.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.59 lb |
| Cone Outside Diameter | 12.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.346 IN |
| Length - Stud Center to End | 85.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 12.50 MM |
| Stud Length | 12.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.492 IN |
| Stud Length | 0.492 IN |
| Cone Outside Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604244838 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-3778
- MOOG Chassis Products ES3021L
- Mcquay-Norris ES3021L
- Mevotech MES3021L
- Mercedes-Benz 000 338 4310
- Mercedes-Benz 000 338 4510
- Mercedes-Benz 000 338 60 10
- Mercedes-Benz 000 338 6210
- Mercedes-Benz A000 338 4310
- Mercedes-Benz A000 338 4510
- Mercedes-Benz A000 338 6010
- Mercedes-Benz A000 338 6210
- MAS Industries T3021
- TRW JTE132
- Import Direct ER02034
- GES3021L
- T3021PR
Fits Vehicles
- Mercedes-Benz 190E (1984-1993)
- Mercedes-Benz 190D (1984-1989)
