CENTRIC 320.42073 Part Description
Manufacturer
Product Description

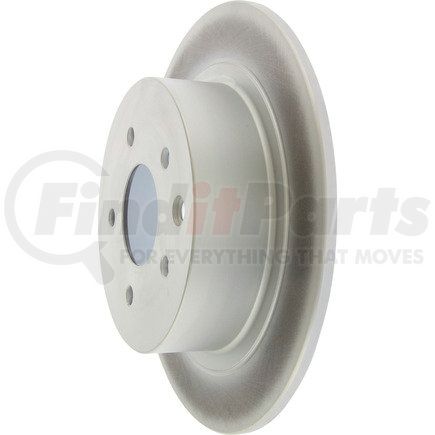

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.42073 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] In | 6.157 |
| Hat Id [cntrc] Mm | 156.400 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.770 |
| Weight [cntrc] Lbs | 10.500 |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.000 MM |
| Nominal Thickness | 0.354 IN |
| Nominal Thickness | 9.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 62.000 MM |
| Overall Height | 2.441 IN |
| Outside Diameter | 291.700 MM |
| Outside Diameter | 11.484 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.800 MM |
| Nominal Drum Diameter | 6.724 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.900 MM |
| Stud/Lug Hole Diameter | 0.508 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250749 |
CENTRIC 320.42073 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980070, 980070FZN, 980070R |
| N/A | 90067050, HC31312X |
CENTRIC 320.42073 Cross References
We have 3 alternatives for the 320.42073 by CENTRIC:
