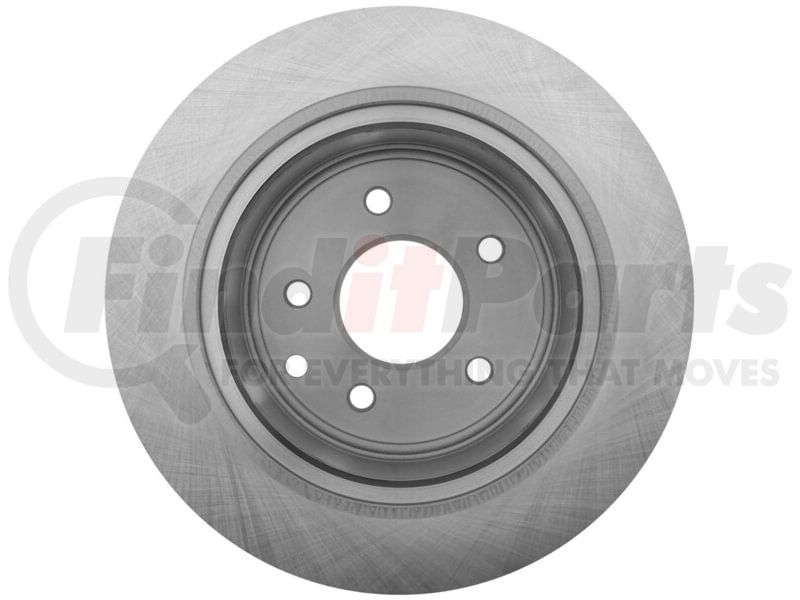

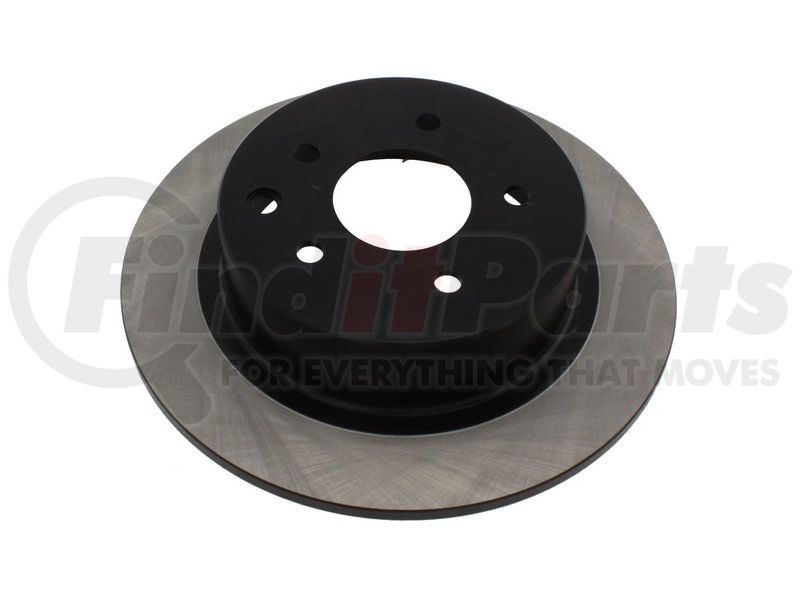

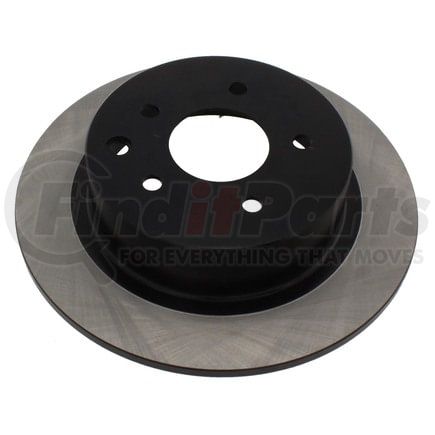

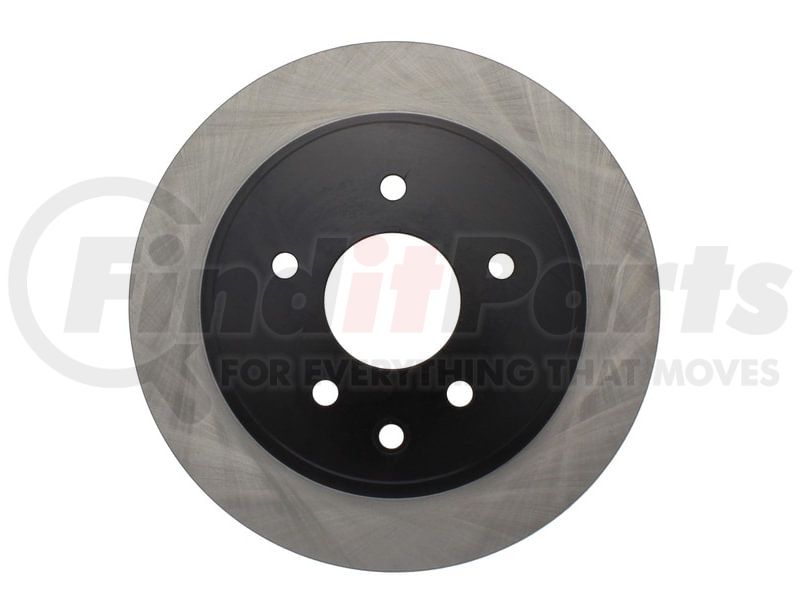

RAYBESTOS 980070R2 Raybestos R-Line+ Brake Rotor

★★★★★ (0)
Raybestos 980070R2 Disc Brake Rotor Raybestos R-Line+ Brake Rotor
RAYBESTOS
Tap to view 2 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980070R2 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line+ Brake Rotor

Features & Benefits

  • Painted Hat and Edges
  • Top-Notch Surface Finish
  • Superior surface finish for consistent braking.
  • OE Vane Design
  • OE vane design and plate thickness for heat capacity and strength.
  • Advanced Metallurgy
  • Advanced metallurgy for structural strength and heat transfer.
  • Low Initial Lateral Run-out
  • Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
  • Precision Balance
  • Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor

RAYBESTOS 980070R2 Specifications

Product Attributes

ABS Tone Ring IncludedNo
Center Hole Diameter2.7 IN
Conventional Or Drum-In-Hat Type RotorDrum-In-Hat
Directional or Non-Directional Brake SurfaceNon-Directional
Discard Thickness0.3 IN
MaterialCast Iron
Mounting Bolt Hole Circle Diameter4.5 IN
Mounting Bolt Hole Diameter0.5 IN
Mounting Bolt Hole Quantity5
Nominal Thickness0.4 IN
Outside Diameter11.5 IN
Overall Height2.4 IN
Solid Or Vented Type RotorSolid
Stud/Lug Hole Quantity5
Harmonize Code8708.30.5030
Salability RestrictionsNo
UNSPSC Code25171715
Center Hole Diameter68.1 MM
Discard Thickness8.0 MM
Mounting Bolt Hole Circle Diameter114.3 MM
Mounting Bolt Hole Diameter12.6 MM
Nominal Thickness9.0 MM
Outside Diameter291.5 MM
Overall Height62.1 MM
Inside Diameter8.4 IN
Inside Diameter213.4 MM
Surface TypeSmooth
Bearings IncludedNo
ConstructionFull Cast
Grade TypeRegular
Maximum Brake Diameter (Discard)291.5 MM
Rust Resistant CoatingYes
Weight [cntrc] Kgs4.6
Weight [cntrc] Lbs10.2

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00887213447859

RAYBESTOS 980070R2 Cross References

BrandPart Number
Advance Auto Parts145398, YH145398, YH145398C, YH145398P
AutoZone31312, 31312DG, DL31312, 31312DL
Autopartsource576840
Autoxtra126003, 80980070, AX31312, AX31312P
Beck/Arnley083-2931
Bendix145398
Bosch40011030
BrakeBest40011030, 81-126003, 980070, 980070FZN, 980070R, 980070RGS, BD126003
Brembo08.A715.10, 25689, 08.A715.11, 08.A715.1X
Casting Numbers211430-C, 325564
Centric Parts120.42073, 120.42073CRY, 121.42073, 125.42073, 125.42073CRY, 126.42073CSL, 126.42073CSR, 126.42073SL, 126.42073SR, 127.42073CL, 127.42073CR, 127.42073L, 127.42073R, 128.42073CL, 128.42073CR, 128.42073L, 128.42073R, 227.42073L, 227.42073R, 320.42073, 321.42073
Dura CorpBR31312, BR3131202
DuraGoBR31312, BR3131202, BR31312-02
Dynamic Friction Company604-67050
GREN85201
Guardian52-126003
Mighty Distributing System31312
Monroe BrakesBD126003
NAPA BRAKESSDK6206
Newtek Automotive USA31312
Nissan4320632600, 432063SC0A, 432063SC0B, 432063Z600, 432067Y000, 432068J100, 432068J102, 432069Y000, 43206JA00A, 43206JA00B, 43206JD00A, 43206JD00B, 43206ZX00A, 43206ZX00B
Pep Boys31312G
PowerStopJBR1102EVC
Promax14-31312, 20-31312
Qualis31312
Qualitee International64-76-840
Quality BrandQ617
Renault43206JE20A
Standard Rotors and Drums31312, GP31312
TopNotchTN980070GEO
TruStar476840, R76840
UAP31312
Ultra BrakeNI-482
VIPAR - Vehicle Indusrty Parts & ManufacturingX51425
WABCO - ArchivedPS126003
WORLDPAC1407-78915, 1427-530220
Wagner BrakeBD126003, BD126003E
Winhere661514

RAYBESTOS 980070R2 Fits Vehicles

  • Nissan Altima (2002-2025)
  • Nissan Juke (2011-2017)
  • Nissan Maxima (2004-2008)
  • Nissan Sentra (2007-2019)
  • Renault Safrane (2010-2015)
