CENTRIC 320.40063 Part Description
Manufacturer
Product Description

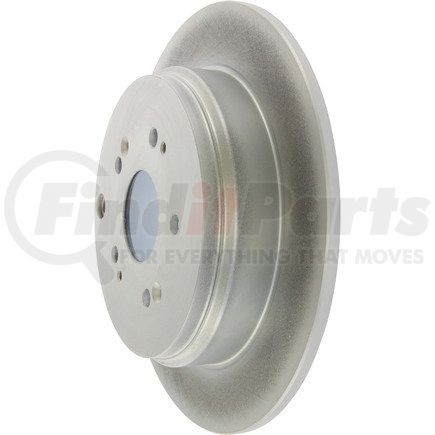

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40063 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 11.000 |
| Misc Holes [cntrc] | 5 |
| Hat Id [cntrc] In | 7.185 |
| Weight [cntrc] Kgs | 5.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] Mm | 182.500 |
| Max Pb Drum Dia [cntrc] In | 7.913 |
| Max Pb Drum Dia [cntrc] Mm | 201.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 7.500 MM |
| Discard Thickness | 0.295 IN |
| Nominal Thickness | 0.354 IN |
| Nominal Thickness | 9.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 60.800 MM |
| Overall Height | 2.394 IN |
| Outside Diameter | 11.988 IN |
| Outside Diameter | 304.500 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 7.870 IN |
| Nominal Drum Diameter | 199.900 MM |
| Bearings Included | No |
| Center Hole Diameter | 64.100 MM |
| Center Hole Diameter | 2.524 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250558 |
CENTRIC 320.40063 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980294, 980294FZN, 980294R |
| N/A | 90059048, HC31372X, 981041FZN |
CENTRIC 320.40063 Cross References
We have 3 alternatives for the 320.40063 by CENTRIC:
