(888) 312-8812 Login SignupRAYBESTOS 980294R Raybestos R-Line Brake Rotor
$6949
Limited availability at this price!
In Stock
Get as soon as Friday, Oct 2
RAYBESTOS 980294R Part Description
Manufacturer
Product Description

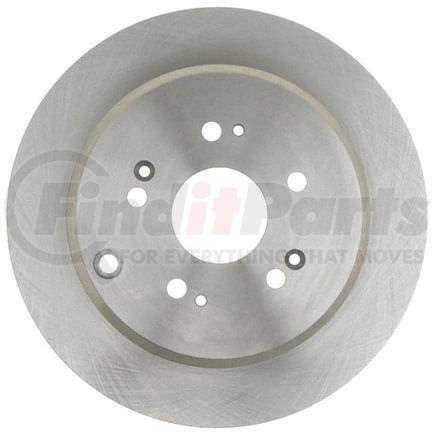

Raybestos R-Line Brake Rotor
Application Summary
2013-2005 Honda CR-V Rear, 2012-2007 Acura RDX Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980294R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.52 IN |
| Center Hole Diameter | 64 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.295 IN |
| Discard Thickness | 7.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.497 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.354 IN |
| Nominal Thickness | 9 MM |
| Outside Diameter | 11.988 IN |
| Outside Diameter | 304.5 MM |
| Overall Height | 2.402 IN |
| Overall Height | 61 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352635483 |
RAYBESTOS 980294R Cross References
| Brand | Part Number |
|---|---|
| CI231741, 829352635483 | |
| ADVANCE AUTO PARTS | YH145678, YH145678C, YH145678P |
| AUTOPARTSOURCE | 571340 |
| AUTOXTRA | AX900390 |
| AUTOZONE | 44317, 44317DG, 44317DL, DL44317 |
| Autoxtra | AX900390P |
| BENDIX | PRT5678 |
| BOSCH | 26011447 |
| BRAKEBEST | 26011447, 980294, 980294FZN, 980294R, 980294RGS |
| BREMBO | 08.A355.10 |
| Brembo | 08.A355.11 |
| CENTRIC | 120.40063, 120.40063CRY, 121.40063, 126.40063CSL, 126.40063CSR, 126.40063SL, 126.40063SR, 127.40063CL, 127.40063CR, 127.40063L, 127.40063R, 128.40063CL, 128.40063CR, 128.40063L, 128.40063R, 320.40063 |
| Casting Numbers | 211679-C, 326311 |
| Centric Parts | 120.40063, 120.40063CRY, 121.40063, 126.40063CSL, 126.40063CSR, 126.40063SL, 126.40063SR, 127.40063CL, 127.40063CR, 127.40063L, 127.40063R, 128.40063CL, 128.40063CR, 128.40063L, 128.40063R, 320.40063 |
| DURA CORP | BR31372, BR900390, BR90039002 |
| DuraGo | 60432, 900390, BR60432, BR900390, BR90039002, BR900390-02 |
| Dynamic Friction Company | 604-59048 |
| HONDA | 42510S9AE50, 42510SCAE50, 42510STKA00, 42510STKA10, 42510SWA000, 42510SWAA00, 42510SXSA00, 42510T0AA00, 42510T0GA02 |
| Honda | 42510T0GA04, 42510TX4A01, 42510TX4A02 |
| MAGMA PRODUCTS | PMR265096 |
| MONROE BRAKES | BD126352 |
| NAPA BRAKES | SDK6284 |
| NEWTEK AUTOMOTIVE | 31372 |
| Newtek Automotive USA | 31372 |
| Omnicraft | QBRR201 |
| POWERSTOP | JBR1158EVC |
| PROMAX | 14-31372, 20-31372 |
| Parts Master | 126352 |
| Qualis | 44317 |
| TRW | 7374 |
| TopNotch | TN980294GEO |
| UAP | 31372 |
| Ultra Brake | HO-5011 |
| WABCO | PS126352 |
| WABCO - Archived | PS126352 |
| WAGNER | BD126352, BD126352E |
| WAGNER BRAKE | BD126352, BD126352E |
| WINHERE | 661712 |
| WORLDPAC | 1407-75235, 1427-530102 |
| Winhere | 6611008 |
RAYBESTOS 980294R Fits Vehicles
- Acura RDX (2007-2018)
- Honda CR-V (2005-2016)
