(888) 312-8812 Login SignupMONROE 5529 OESpectrum Suspension Shock Absorber
Tap to view 3 more
MSRP: $75.49
$5149
Save $24.00
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
MONROE 5529 Part Description
Manufacturer
Product Description

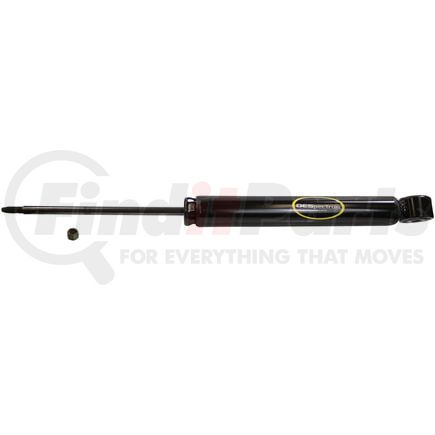

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5529 Specifications
Product Attributes
| Lower Mount Code | LS42 |
| Upper Mount Code | S1 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.75 IN |
| Compressed Length | 13.74 IN |
| Extended Length | 23.32 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.5/16" Sleeve OAL |
| Parts Pack(s) | P01505 |
| Travel Length | 9.58 in |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Compressed Length | 349 MM |
| Extended Length | 592.3 MM |
| Travel Length | 243.3 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 44.4 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS42 |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598178978 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5529 Cross References
| Brand | Part Number |
|---|---|
| Duralast | TS3334942B |
| GABRIEL | G51799 |
| KYB | 344459 |
| MasterPro Shocks and Struts | VW106 |
| Monroe Shocks & Struts | 210011 |
| NAPA Shocks | 5529, NS5529 |
| OEM | 561513049D, 561513049C |
| Volkswagen | 561413031J, 561413031K, 561413031L, 561513049C, 561513049D |
MONROE 5529 Fits Vehicles
- Volkswagen Passat (2012-2022)
MONROE 5529 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 5529 Questions & Answers
No questions yet
Be the first to ask a question about this product!
