FRAM HP18 Part Description
Manufacturer
Product Description

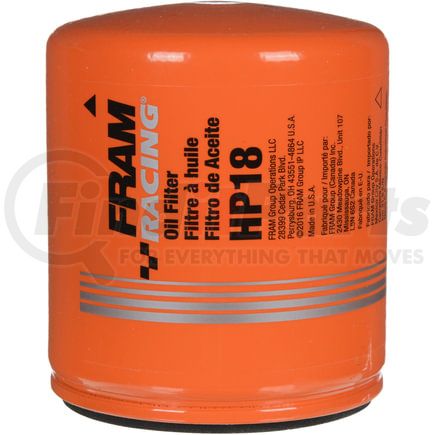

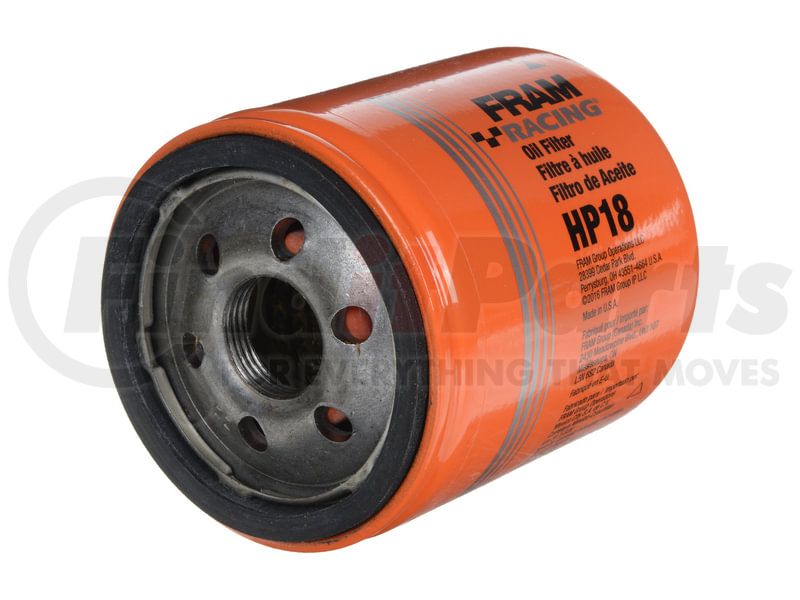

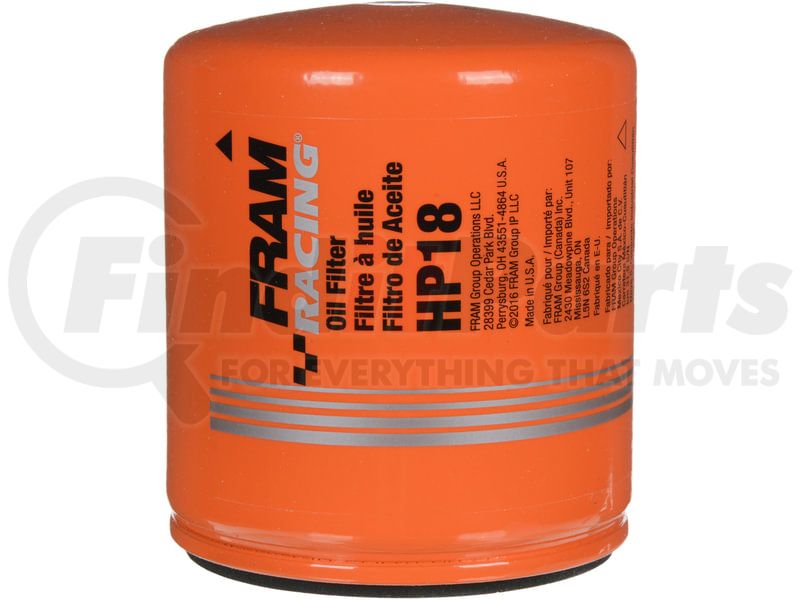

FRAM, HP18, Oil Filter
Features & Benefits
- Low-restriction synthetic blend racing media designed for high oil flow. The media features 94% efficiency @20 microns for excellent engine protection**
- Silicone anti-drain back valve.
- Recommended maximum oil flow: 10-18gpm, depending on model***
- Maximum burst pressure: 350-500psi, depending on model***
- Maximum operating pressure: 200psi on all models***
- Compatible with all oil types, this filter is optimized for racing and high-performance street cars
FRAM HP18 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.370 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.354 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.401 IN |
| Gasket Outside Diameter | 2.755 IN |
| Marine Approved | No |
| Burst Pressure | 390.000 PS |
| Bypass Relief Valve Setting | 16-28 PS |
| Gasket Material | Base |
| Gasket Type | Base |
| Grade | Advanced |
| Inlet Type | Threaded |
| Inside Thread Diameter | 22mm x 1.5mm |
| Outside Diameter | 3.007 IN |
| Thread Size | Metric |
| Burst Pressure | 390.000 PS |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100559821 |
| UNSPSC | 15121501 |
FRAM HP18 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | UPFR48R |
| Amsoil | EA15K50 |
| CASTROL SFX - Archived | CAS10060 |
| EXXON/MOBIL OIL | M1113, M1113A |
| FRAM | M1-113A, M1-113 |
| FRAM Extra Guard | HP-1017, PH10060 |
| FRAM Tough Guard | TG10060 |
| FRAM Ultra Synthetic | XG10060 |
| K&N | HP-1017 |
| LUBER-FINER | PH48R |
| MANN-HUMMEL FILTERS | L12222 |
| MOBIL OIL | M1113A, M1113 |
| Mobil 1 | M1-113, M1-113A |
| PUREPRO | PH48R |
| PUROLATOR | TL12222, TL12222BP, L12222, PL12222, PBL12222 |
| Royal Purple | 10-48 |
| STP Filters | PH48R |
| Service Champ | M1-113 |
| WIX FILTERS | 57060XP, 57060MP, 57060 |
| Warner | PH48R |
| Wix | 57060XP |
FRAM HP18 Fits Vehicles
- Suzuki Aerio (2002)
- Chrysler Cirrus (2007-2010)
- Jeep Wagoneer L (2023-2024)
- Jeep Grand Wagoneer L (2023)
- Dodge Hornet (2023-2025)
- Chevrolet Silverado 2500 (2014)
- Chevrolet Captiva Sport (2008)
- Isuzu NRR (2022)
- Isuzu NQR (2022)
- Isuzu NPR-HD (2016-2020)
- Jeep Wagoneer (2022-2024)
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- Chevrolet Monte Carlo (2007)
- Pontiac Grand Prix (2007-2008)
- Jeep Grand Wagoneer (2022-2023)
- Jeep Wrangler (2018-2024)
- Jeep Grand Cherokee L (2021-2023)
- Ram 1500 Classic (2019-2024)
- GMC Sierra 3500 Classic (2007)
- Jeep Renegade (2015-2021)
- Alfa Romeo Stelvio (2018-2024)
- Chevrolet LCF 3500 (2016-2018)
- Chevrolet Suburban 3500 HD (2016-2019)
- Alfa Romeo Giulia (2017-2024)
- Chevrolet LCF 4500 (2016-2019)
- Fiat 500X (2016-2018)
- Chevrolet Impala Limited (2016)
- Cadillac XTS (2017-2019)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Ram 4500 (2014-2023)
- Dodge Durango (2015-2024)
- Ram ProMaster City (2015-2022)
- Ram 5500 (2014-2024)
- GMC Savana 4500 (2009-2019)
- Jeep Cherokee (2014-2023)
- Jeep Grand Cherokee (2014-2024)
- Saturn Vue (2008-2010)
- Cadillac Escalade ESV (2007-2014)
- Cadillac Escalade EXT (2007-2013)
- Saab 9-4X (2011)
- Ram 2500 (2012-2024)
- Chevrolet W4500 Tiltmaster (2007-2010)
- Chevrolet SS (2014-2016)
- Ram 1500 (2013-2024)
- Dodge Dart (2013-2016)
- Chevrolet Express 4500 (2009-2020)
- Chevrolet Caprice (2011-2017)
- Chrysler 200 (2011-2017)
- Cadillac SRX (2010)
- Ram 3500 (2011-2024)
- GMC W4500 Forward (2007-2010)
- Dodge Challenger (2009-2010, 2019-2023)
- Dodge Grand Caravan (2009-2010)
- Dodge Charger (2009-2010, 2017-2023)
- GMC Sierra 3500 HD (2007-2019)
- Saturn Outlook (2007-2010)
- Chevrolet Equinox (2008-2010)
- Chevrolet W3500 Tiltmaster (2007-2009)
- Chrysler 300 (2009-2010, 2017-2023)
- Hummer H3T (2009-2010)
- Suzuki Grand Vitara (2009-2010)
- Chevrolet Colorado (2009-2012)
- Pontiac Torrent (2008-2009)
- Dodge Nitro (2009-2011)
- Chevrolet Express 3500 (2007-2020)
- Chevrolet Traverse (2009-2010)
- Chevrolet Camaro (2010-2015)
- Volkswagen Routan (2009-2010)
- GMC W3500 Forward (2007-2008)
- Hummer H3 (2008-2010)
- Chrysler Town & Country (2009-2010)
- Pontiac G8 (2008-2009)
- Chevrolet Malibu (2008-2012)
- GMC Canyon (2009-2012)
- Buick LaCrosse (2008-2010)
- Dodge Journey (2009-2020)
- Dodge Avenger (2008-2014)
- Buick Allure (2008-2010)
- Chrysler Sebring (2007-2010)
- GMC Envoy (2007-2009)
- Chevrolet Express 1500 (2007-2014)
- Chevrolet Silverado 3500 HD (2007-2019)
- Cadillac CTS (2007, 2009-2015)
- Chevrolet Suburban 2500 (2007-2013)
- GMC Acadia (2007-2010)
- Buick Enclave (2008-2010)
- Saturn Aura (2007-2009)
- Suzuki XL-7 (2007-2009)
- GMC Sierra 2500 HD (2007-2019)
- GMC Savana 1500 (2007-2014)
- Chevrolet Impala (2007-2009, 2012)
- Jeep Patriot (2007-2017)
- Chevrolet Avalanche (2007-2013)
- Cadillac Escalade (2007-2014)
- Hummer H2 (2007-2009)
- Saab 9-7x (2007-2009)
- GMC Savana 2500 (2007-2020)
- Chevrolet Express 2500 (2007-2020)
- GMC Savana 3500 (2007-2020)
- Jeep Compass (2007-2024)
- Pontiac G6 (2007-2009)
- GMC Sierra 1500 (2007-2013)
- Chevrolet Trailblazer (2007-2009)
- Buick Rainier (2007)
- Chevrolet Silverado 2500 HD (2007-2019)
- Chevrolet Silverado 1500 (2007-2013)
- Chevrolet Suburban 1500 (2007-2014)
- GMC Yukon XL 2500 (2007-2013)
- GMC Yukon XL 1500 (2007-2014)
- Chevrolet Tahoe (2007-2014)
- Dodge Caliber (2007-2012)
- GMC Yukon (2007-2014)
- Chevrolet Corvette (2006-2013)
