BENDIX part description

Product Description


Features & Benefits

  • Primarily used on the front or steering axle of a vehicle to limit brake applications
  • Designed as a dual function (limiting and quick release) valve that's controlled by a TW-1 control valve
  • Releases air directly from the front axle chambers as a quick release valve
  • All Bendix valves are designed to enhance and improve vehicle performance

Courtesy of Bendix – All rights reserved

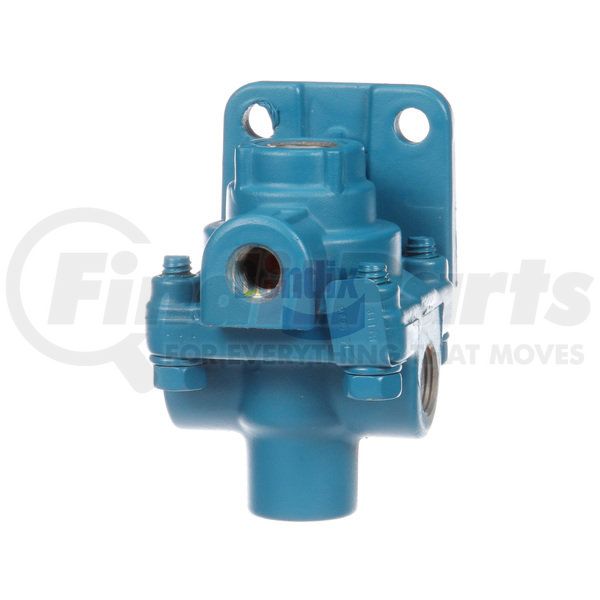

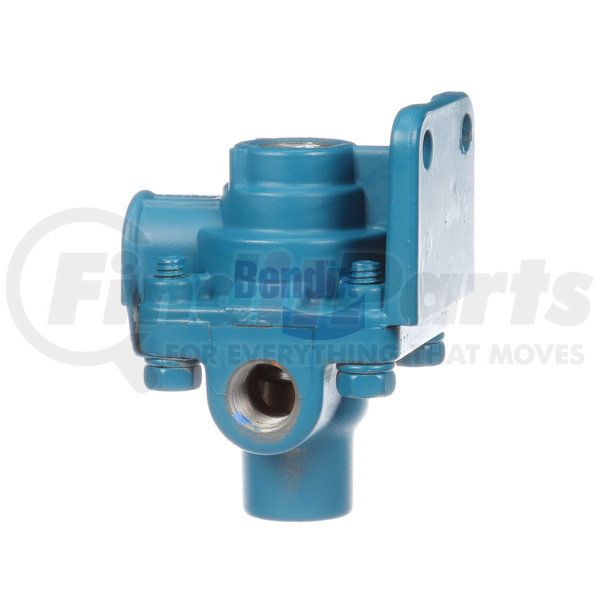

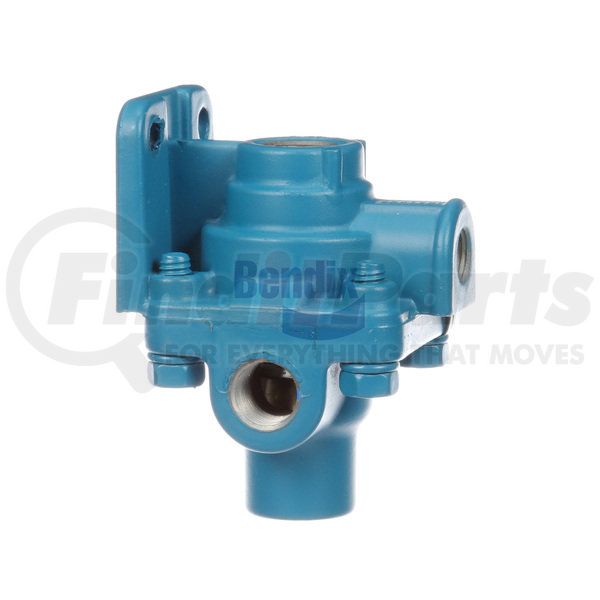

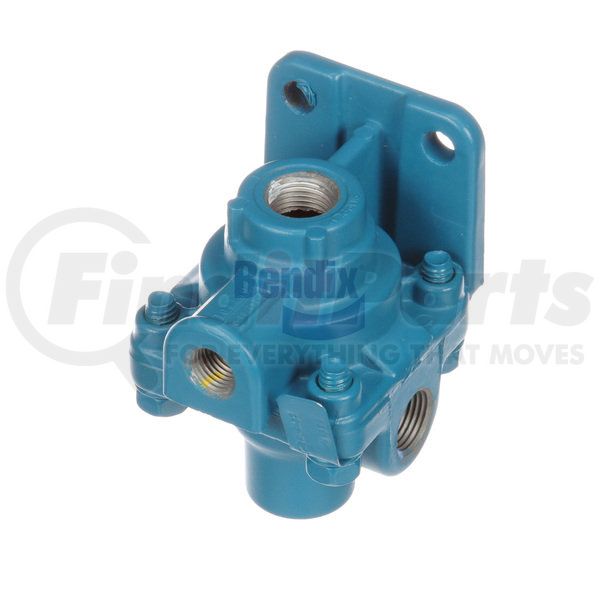

Bendix LQ-2 Air Brake Control Valve

A part of Bendix's comprehensive range of coreless valves, the Bendix LQ-2 air control valve is a genuine Bendix remanufactured valve, but it does not require the return of the old valve core. It goes through stringent remanufacturing processes to meet or exceed OEM specifications in form, fit, and function.

Product Attributes

Control Port Diameter 1/4-18 in. NPT
Delivery Port Diameter 3/8-18 in. NPT
Maximum Operating Temperature 200 °F (93 °C)
Minimum Operating Temperature -40 °F (-40 °C)
Mounting Hole Diameter 0.34 in.
Mounting Hole Quantity 2
New Or Remanufactured Remanufactured
Notes CORELESS; Limiting Ratio: 50% Limited Delivery; Delivery Port Orientation: 90° / 270°
Recommended Use Standard
Series LQ-2™
Supply Port Diameter 3/8-18 in. NPT

Additional Information

Core Class 7A
Core Group 74
Country of Origin (Primary) MX
Harmonized Tariff Code (HTS) 8481200070
VMRS Code 013010010

Part Interchanges

A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
