(888) 312-8812 Login SignupCENTRIC 120.52001 Centric Premium Brake Rotor
Tap to view 4 more
$17649
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 30
CENTRIC 120.52001 Part Description
Manufacturer
Product Description

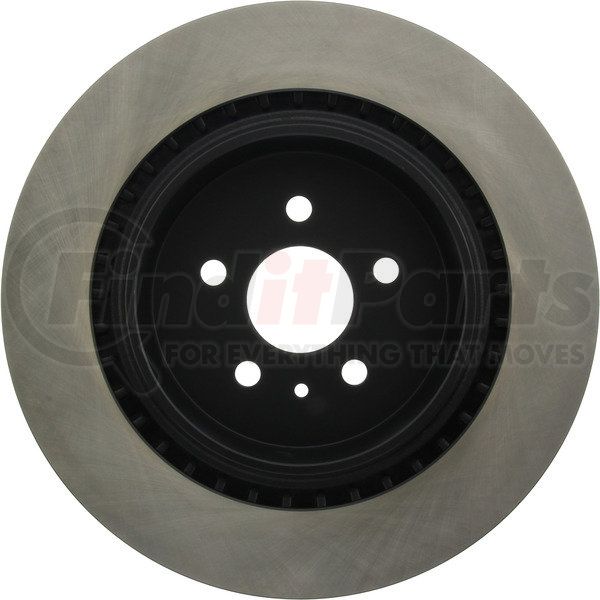

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.52001 Specifications
Product Attributes
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] In | 6.516 |
| Weight [cntrc] Lbs | 29.010 |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 165.500 |
| Weight [cntrc] Kgs | 13.160 |
| OEM Vane Count [cntrc] | 111 |
| Product Grade [cntrc] | Premium |
| Stud/Lug Hole Diameter | 16.600 MM |
| Stud/Lug Hole Diameter | 0.654 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Center Hole Diameter | 70.200 MM |
| Center Hole Diameter | 2.764 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 14.370 IN |
| Outside Diameter | 365.000 MM |
| Overall Height | 2.618 IN |
| Overall Height | 66.500 MM |
| Hat Finish | Painted |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890972990 |
CENTRIC 120.52001 Cross References
CENTRIC 120.52001 Fits Vehicles
- Tesla S (2012-2016)
