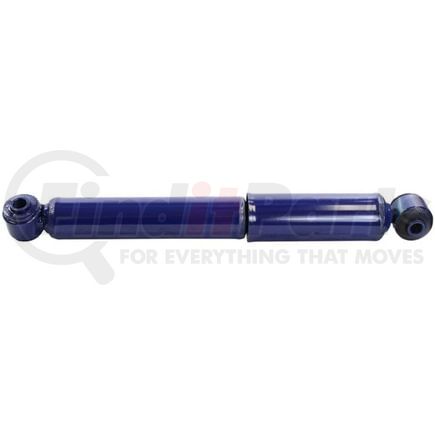

(888) 312-8812 Login SignupMONROE 33183 Monro-Matic Plus Rear Suspension Shock Absorber
Tap to view 3 more
$44.15
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 33183 Part Description
Manufacturer
Product Description
Monro-Matic Plus Rear Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 33183 Specifications
Product Attributes
| Compressed Length | 10.49 IN |
| Compressed Length | 266.4 MM |
| Extended Length | 16.04 in |
| Extended Length | 407.4 MM |
| Travel Length | 5.55 in |
| Travel Length | 141 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS92 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 47.63MM Sleeve OAL |
| Upper Mount Code | LS30 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 1.78 IN |
| Body Diameter | 45.2 MM |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598172341 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 33183 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 530456, 560569 |
| AUTOZONE | TS32-30012B |
| AutoZone | TS3230012B |
| Chevrolet | 10368516, 15247243, 15247244, 15247245, 15247246, 15780243, 15798897, 15798898, 15798899, 15798900, 15806888, 15876215, 15876216, 15876217, 15876218, 19181043, 19181044, 19181251, 19181631, 20794267, 20794268, 20794269, 20795223, 20795225, 20795226, 22696400, 22703791, 22728821, 22728822, 25793745, 88964331, 88964332 |
| Duralast | TS3230012B |
| FCS | 342546 |
| FCS AUTO PARTS | 342546 |
| GABRIEL | 69587 |
| GMC | 22696400, 25793745 |
| General Motors | 22696400, 25793745 |
| KYB | 349043 |
| MasterPro Shocks and Struts | GM116 |
| Monroe Shocks & Struts | 55779 |
| NAPA Proformer | SH69587 |
| NAPA Response | 94330 |
| OEM | 22696400, 25793745 |
| Pontiac | 10368516, 15876215, 15876216, 20795223, 20795224, 20795225, 20795226, 22696400 |
| Saturn | 93178640, 93178641, 93179397, 93179398, 93179692, 93179693 |
| Sensen | 12130299 |
| Ultra Shock | 69587 |
| VAICO | V400692 |
MONROE 33183 Fits Vehicles
- Saturn Astra (2008-2009)
- Pontiac G5 (2007-2010)
- Pontiac Pursuit (2005-2006)
- Chevrolet HHR (2006-2011)
- Chevrolet Cobalt (2005-2010)
MONROE 33183 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 33183 Questions & Answers
No questions yet
Be the first to ask a question about this product!
