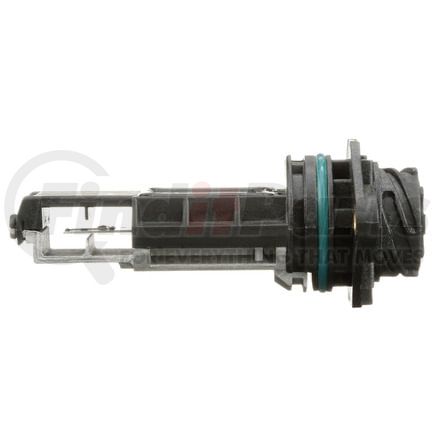

(888) 312-8812 Login SignupDELPHI AF10341 Mass Air Flow Sensor
$20449
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Feb 5
DELPHI AF10341 Part Description
DELPHI AF10341 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Round |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 69 MM |
| Sensor Casing Width | 45.7 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 52.20 MM |
| Mounting Hole Diameter | 5.6 MM |
| Seal Outside Diameter | 41 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.7 IN |
| Sensor Casing Width | 1.7 IN |
| Bolt Hole Center To Bolt Hole Center | 2.00 IN |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 1.6 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604241950 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10341 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 213-4211 |
| BWD | 221167, MA1221 |
| Beck/Arnley | 157-0333 |
| Bosch | 0280217100 |
| CARDONE Reman | 74-10112 |
| Dorman | 917-868 |
| Duralast | DL-3038 |
| Echlin | XTP410112 |
| GLOBAL PARTS DISTRIBUTORS | 1813112 |
| Mercedes-Benz | 000 094 00 48, 000 094 00 48 80 |
| N/A | 245-1214, MF21167N, 245-2214, DL-6032 |
| NAPA Reman Computers | XTP410112 |
| OMEGA ENVIRONMENTAL TECHNOLOGIES | MAF0120 |
| STANDARD IGNITION | MAS0389 |
| Spectra Premium | MA107 |
| Standard Motor Products | MAS0389, MF21167 |
| VEMO | V30720004 |
DELPHI AF10341 Fits Vehicles
- Mercedes-Benz C220 (1994-1996)
