RAYBESTOS 781109 Part Description
Manufacturer
Product Description

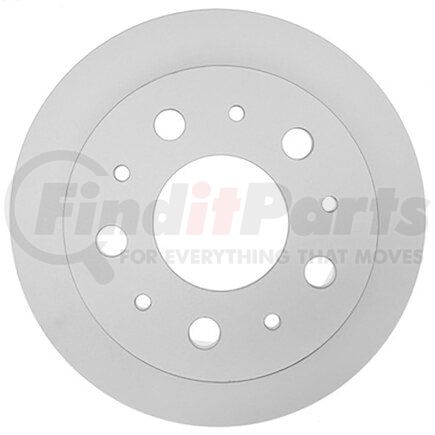

Raybestos Specialty - Truck Brake Rotor
Application Summary
2021-2014 Ram ProMaster 2500 Rear, 2021-2014 Ram ProMaster 1500 Rear, 2021-2014 Ram ProMaster 3500 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 781109 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.11 IN |
| Center Hole Diameter | 79 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.559 IN |
| Discard Thickness | 14.2 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.579 IN |
| Inside Diameter | 192.5 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.693 IN |
| Mounting Bolt Hole Diameter | 17.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.63 IN |
| Nominal Thickness | 16 MM |
| Outside Diameter | 11.012 IN |
| Outside Diameter | 279.7 MM |
| Overall Height | 3.228 IN |
| Overall Height | 82 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213136968 |
RAYBESTOS 781109 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | G15619SD, YH516901, YH516901C, YH516901P |
| AUTOZONE | 72117, 72117DG |
| AutoZone | 72117DL |
| Autoxtra | AX901280, AX901280P |
| BRAKEBEST | 71497RGS, 781109, 781109FZN, 781109R |
| CENTRIC | 120.67077, 121.67077, 320.67077F |
| CHRYSLER | 68193434AA, 68193434AB, 68193434AB001, 68193434AC |
| CITROEN | 1607880580, 4249K8, 4249K9 |
| Centric Parts | 120.67077, 121.67077, 320.67077F |
| DURA CORP | BR901280 |
| DuraGo | BR901280, BR901280-02 |
| Dynamic Friction Company | 600-40115 |
| FIAT | 51856411 |
| MAGMA PRODUCTS | PSR145208 |
| NAPA BRAKES | SDK6566 |
| NEOTEK | 1070117GF |
| NEWTEK AUTOMOTIVE | R1280 |
| Newtek Automotive USA | R1280 |
| Qualis | 43193 |
| TopNotch | TN781109GEO |
| UAP | 2901280 |
| Ultra Brake | 53168 |
| WAGNER | BD180700E |
| WORLDPAC | 1407-516901, 1427-712962 |
| Wagner Brake | BD180700E |
| Winhere | 661497 |
RAYBESTOS 781109 Fits Vehicles
- Ram ProMaster 2500 (2014-2021)
- Ram ProMaster 3500 (2014-2021)
- Ram ProMaster 1500 (2014-2021)
