CENTRIC 320.67077F Part Description
Manufacturer
Product Description

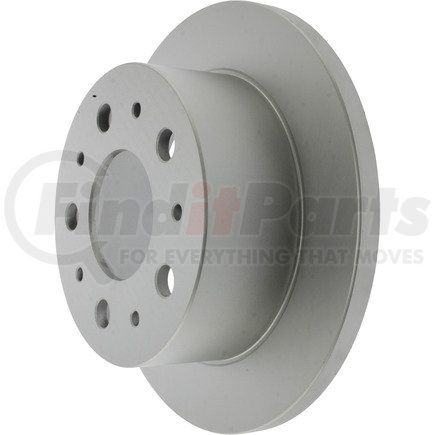

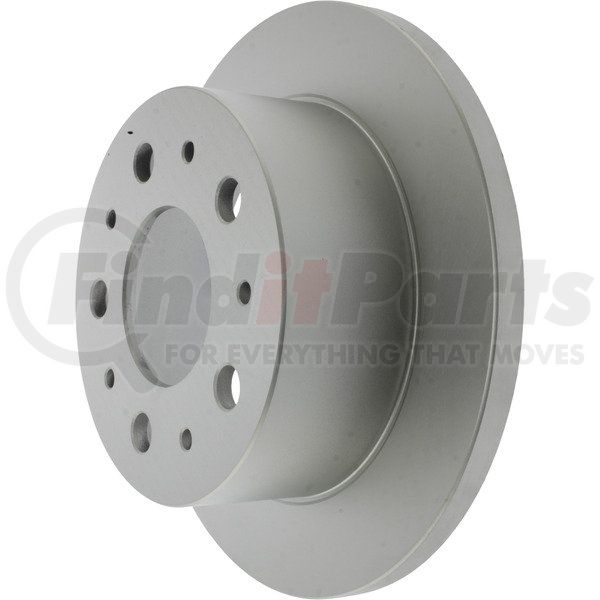

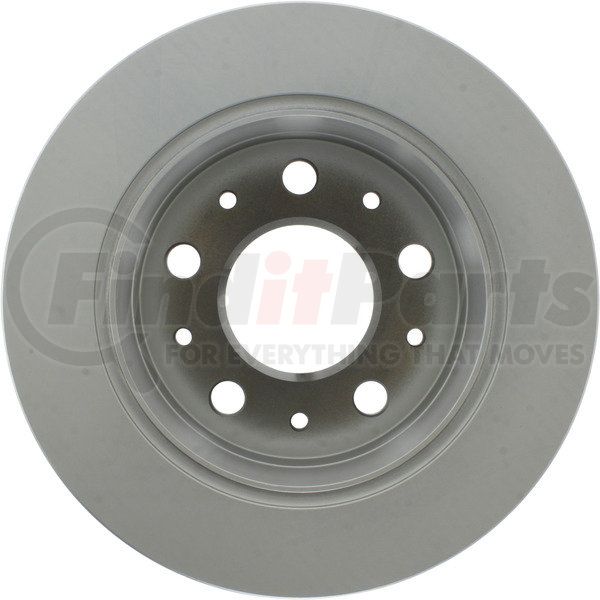

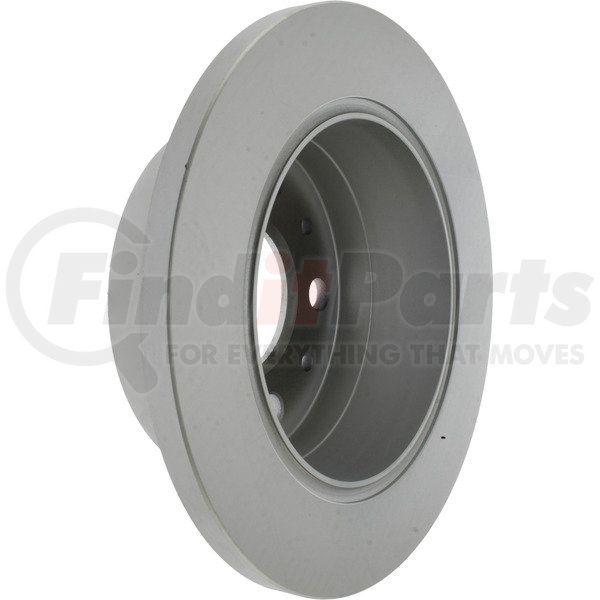

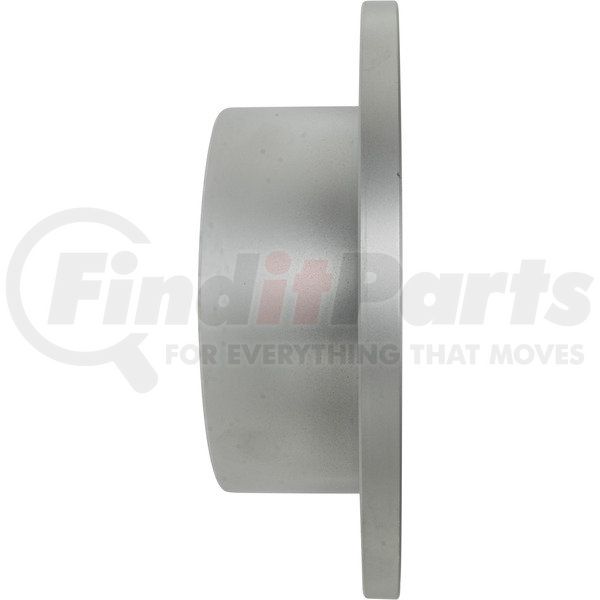

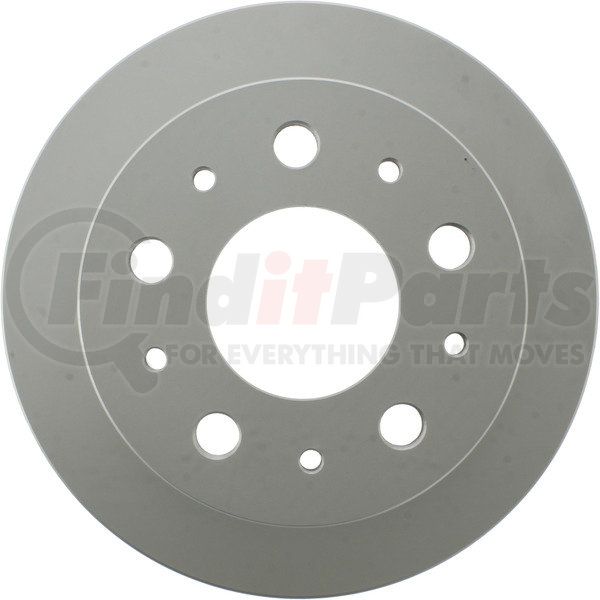

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.67077F Specifications
Product Attributes
| Weight [cntrc] Lbs | 16.800 |
| Hat Id [cntrc] In | 6.768 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 5 |
| Hat Id [cntrc] Mm | 171.900 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 7.620 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 14.200 MM |
| Discard Thickness | 0.559 IN |
| Nominal Thickness | 16.000 MM |
| Nominal Thickness | 0.630 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 82.100 MM |
| Overall Height | 3.232 IN |
| Outside Diameter | 11.020 IN |
| Outside Diameter | 279.900 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 171.600 MM |
| Nominal Drum Diameter | 6.756 IN |
| Bearings Included | No |
| Center Hole Diameter | 79.000 MM |
| Center Hole Diameter | 3.110 IN |
| Mounting Bolt Hole Circle Diameter | 130.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 17.400 MM |
| Stud/Lug Hole Diameter | 0.685 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590394009 |
CENTRIC 320.67077F Cross References
CENTRIC 320.67077F Fits Vehicles
- Ram ProMaster Rapid (2017)
- Ram ProMaster 3500 (2014-2020)
- Ram ProMaster 2500 (2014-2020)
- Ram ProMaster 1500 (2014-2020)
- Peugeot Manager (2009-2017)
