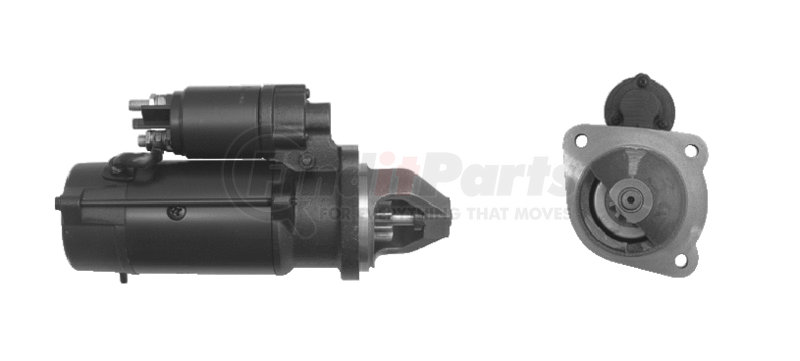

(888) 312-8812 Login SignupLETRIKA MS168 Starter 12V, 10T, CW, PLGR, Letrika/MAHLE AZF42, 4.2kW, New
$540.54
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
LETRIKA MS168 Part Description
Manufacturer
Technical Data
| Product | Starter |
| Letrika P/N | IS1109 |
| Voltage | 12 V |
| Power | 4.2 kW |
| OEM P/N | 11.132.260 |
| MAHLE P/N | MS 168 |
| Description | AZF4346 |
| No. of pinion teeth | 10 |
| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 39.6 mm |
| Notes | With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1109 | 11.132.260 AZF4346 12V 4,2kW | MS 168 | Available |
| IS1109 | 11.131.920 AZF4251 12V 4,2kW | MS 677 | Superseded unit, see available P/N IS1109 |
| IS1109 | 11.131.352 AZF4591 12V 4,2kW | Superseded unit, see available P/N IS1109 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.908.336 | MSX 1225 | Brush holder | 13 |
| 16.915.853 | MSX 1482 | Switch | 4 |
| 16.285.783 | MSX 1706 | Rear-end bracket | 15 |
| 16.908.335 | MSX 192 | Lever | 7 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.904.832 | MSX 609 | Reduction gear | 8 |
| 16.282.438 | MSX 673 | Stator | 12 |
| 15.120.243 | MSX 684 | Bearing | 2 |
| 16.902.835 | MSX 766 | Pinion with clutch | 6 |
| 16.908.339 | MSX 786 | Armature | 9 |
| 16.908.341 | MSX 787 | Fixing set | 11 |
| 16.908.337 | MSX 79 | Set of brushes | 14 |
| 16.283.303 | MSX 9 | Drive end bracket | 1 |
LETRIKA MS168 Cross References
| Brand | Part Number |
|---|---|
| IS1109, MS 168 | |
| BOSCH | 0001230020, 0001230021, 0001250002, 0001250003, 0001262020, 0001262021, 0001262022 |
| CARRARO | 394677 |
| CASE | 2852178, 2859528 |
| CLAAS | 11383370 |
| CNH/FIAT AGRI | 47137534, 47137538, 84208903, 87337538 |
| DELCO REMY | DRS0026 |
| FIAT | 84208903 |
| IVECO | 285217, 2859527, 323019050, 504031929, 504357109, 504357110, 50436476, 5801577137, 5801577138 |
| LESTER | 19792, 19861 |
| LUCAS | LRS02407 |
| SPARE | X36220 |
| STEYR | 471 32 888, 471 37 534 |
