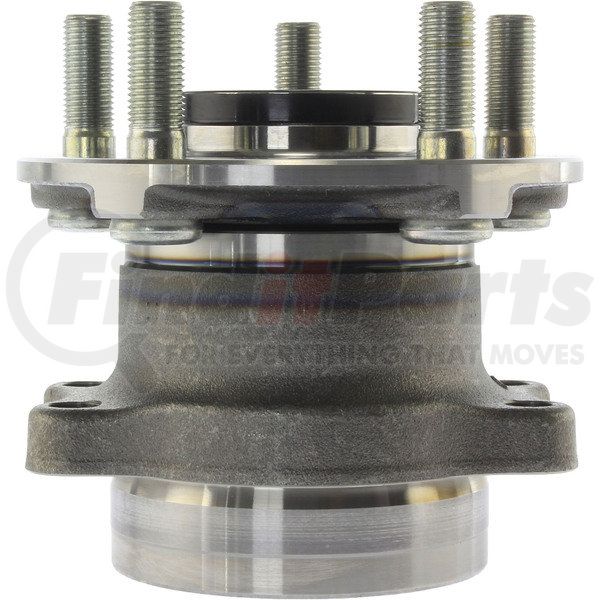

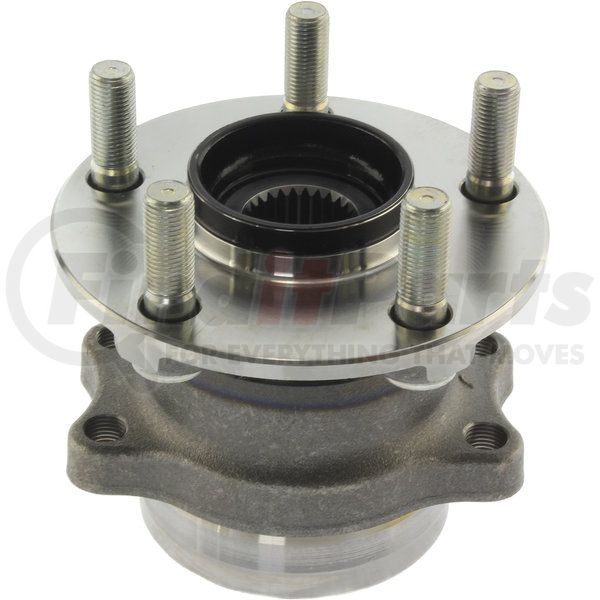

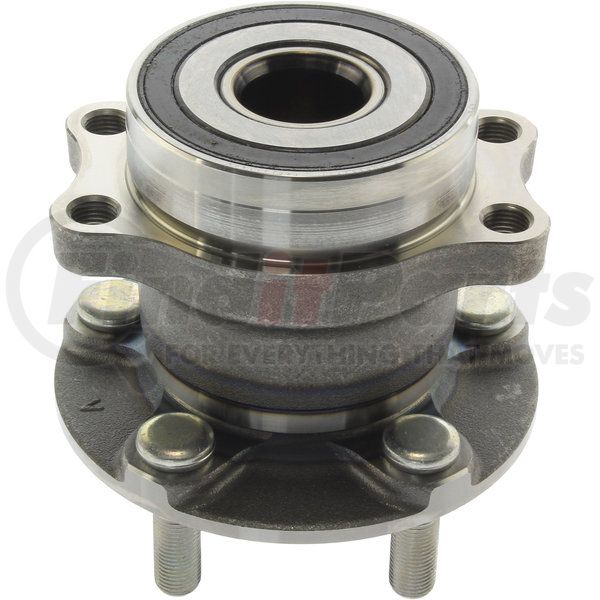

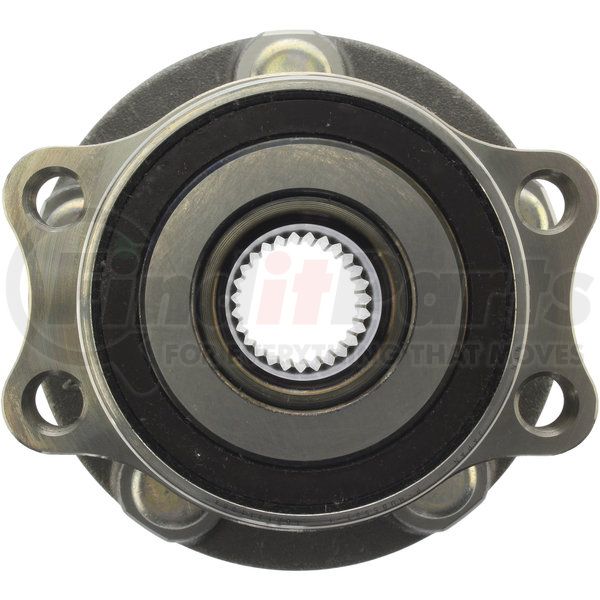

(888) 312-8812 Login SignupCENTRIC 401.47005 Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Tap to view 4 more
$260.02
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 401.47005 Part Description
Manufacturer
Product Description
Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 401.47005 Specifications
Product Attributes
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Off-set [cntrc] In | 66.450 |
| Off-set [cntrc] Mm | 2.616 |
| Inner Mount Pilot [cntrc] In | 3.304 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.250 |
| Inner Mount Pilot [cntrc] Mm | 83.920 |
| Notes [cntrc] | Magnetic ABS Encoder - From April 2011 |
| Spline Quantity | 27 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 56.030 MM |
| Wheel Pilot Diameter | 2.206 IN |
| Brake Pilot Diameter | 57.940 MM |
| Brake Pilot Diameter | 2.281 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 4.880 IN |
| Flange Diameter | 123.950 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890885498 |
CENTRIC 401.47005 Cross References
CENTRIC 401.47005 Fits Vehicles
- Subaru Crosstrek (2016-2023)
- Subaru Forester (2014-2018)
- Subaru XV Crosstrek (2013-2015)
- Subaru Impreza (2012-2023)
