CENTRIC part description

Make Ford
Model EcoSport
Year 2013

Product Description

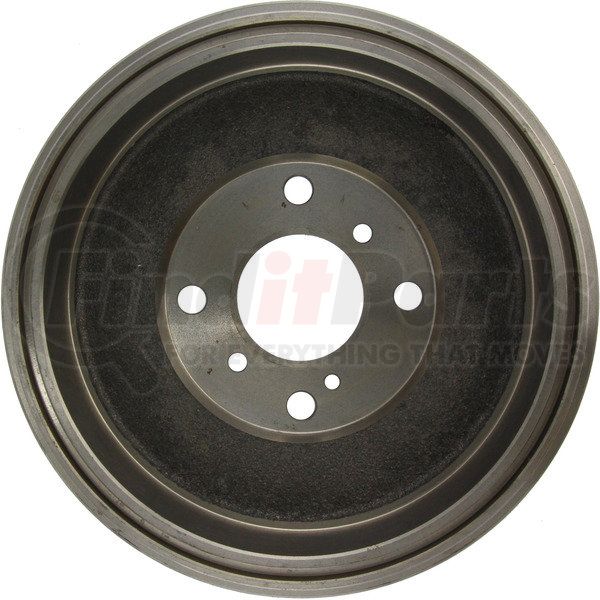

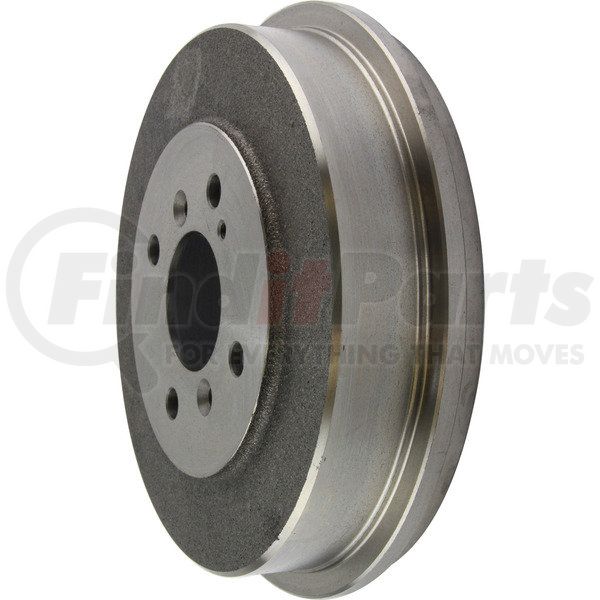

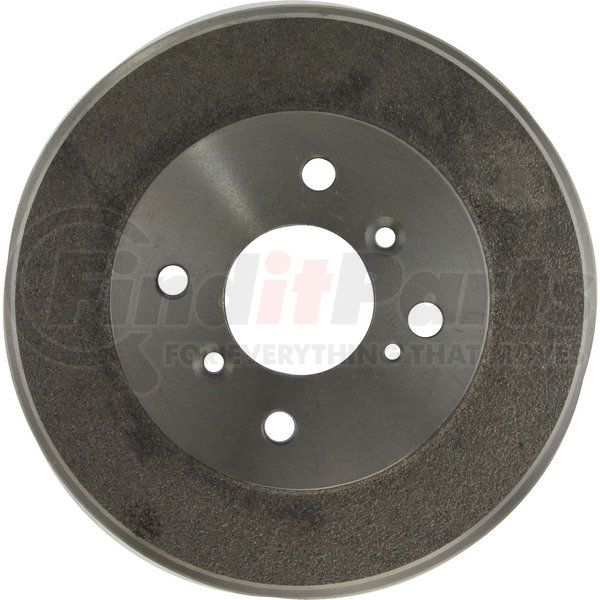

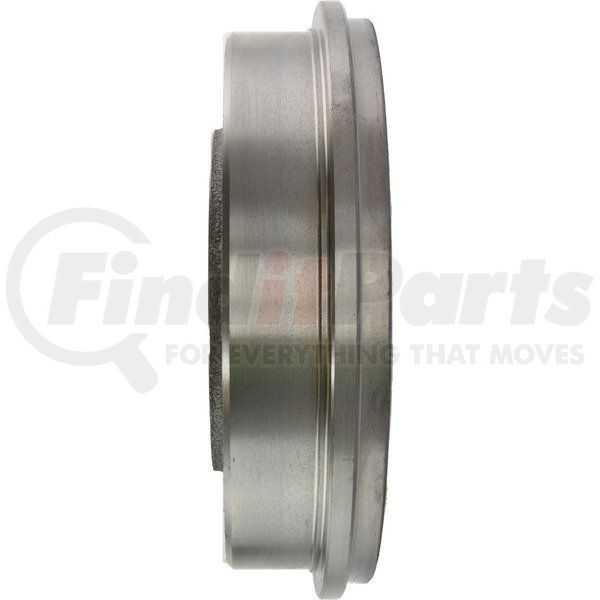

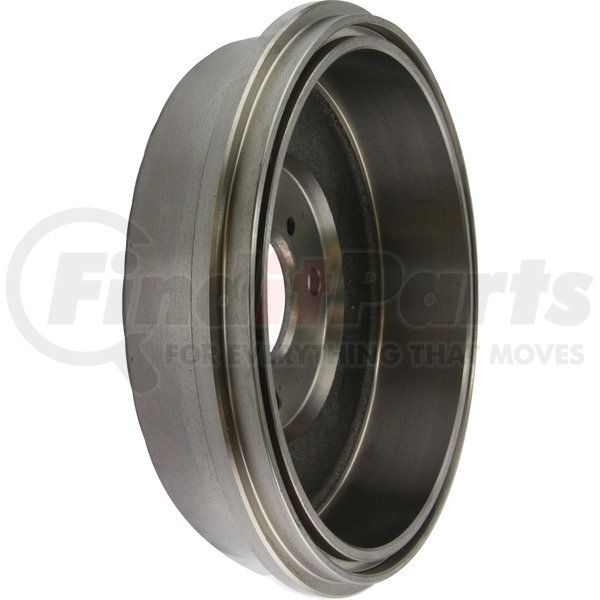

C-Tek Standard Brake Drum

Application Summary

Ford EcoSport 2017-2013

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum

Product Attributes

Maximum Brake Diameter (Discard) 230.100 MM
Bolt Hole Quantity 4
Outside Diameter 273.000 MM
Outer Cooling Fins No
Mounting Hole Diameter 13.900 MM
Nominal Drum Diameter 228.000 MM
Bolt Circle Diameter [cntrc] In 4.250
Bolt Circle Diameter [cntrc] Mm 107.950
Friction Surface Width [cntrc] In 1.941
Friction Surface Width [cntrc] Mm 49.300
Height [cntrc] In 2.764
Height [cntrc] Mm 70.200
Hub Hole / Register [cntrc] In 2.496
Hub Hole / Register [cntrc] Mm 63.400
Misc Holes [cntrc] 3
Mounting Type [cntrc] Floating
Weight [cntrc] Kgs 6.727
Weight [cntrc] Lbs 14.800

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00889590001891

Fits Vehicles

  • Ford EcoSport (2013-2017)
