(888) 312-8812 Login SignupFIRESTONE W013588033 Air Spring Triple Convoluted 38D
Tap to view 1 more
SHIPS TODAY
$28299
Limited availability at this price!
In Stock
Get as soon as Monday, Nov 16
FIRESTONE W013588033 Part Description
Manufacturer
Features & Benefits
- Three stacked convolutions give the spring a long stroke from a compact height
- Expands and compresses along a straight vertical stroke
- 38D designation marks the exact Firestone convoluted style
- Holds load on air pressure in place of a steel spring
Firestone Air Spring
Where a suspension or equipment application uses a triple convoluted bellows, the Firestone Air Spring supplies Firestone's 38D style. Designed with three convolutions stacked between its end plates, the Firestone W013588033 works without a rolling piston. Reversible sleeve springs, by contrast, need a piston underneath to operate, so the two spring designs are not interchangeable. This triple-convoluted bellows operates between its end plates rather than rolling across a separate piston.

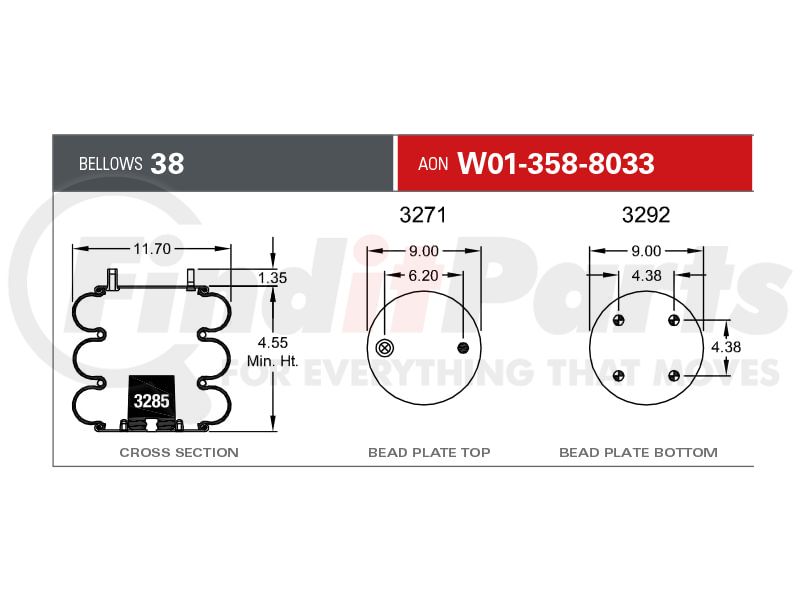

Truck/Trailer Heavy Duty Airsprings/Components 38R (38D)RB BT&3/4CF
- Compressed Height: 4.55
- Top Plate Number:3271
- Top Plate Width:9.00
- Piston Number:3292
- Piston Width:9.00
- Firestone Bellows Number:38
- Goodyear Part Number:3B12-312
- Goodyear Bellows Number:578-93-3-100
- Triangle Part Number:4525
- Triangle Bellows Number:6334
- Hendrickson Auxiliary Number:003316 / S-14487
- Manufacturers Part Number:W01-358-8033
FIRESTONE W013588033 Cross References
| Brand | Part Number |
|---|---|
| W014557991, W014557997, W014558033, 578933100, 6334, FIW013588033 | |
| AIRTECH AIR SPRINGS | W11-5076 |
| CONTITECH | FT33029525, AS8033, 64571, 67904 |
| FIRESTONE | 38D |
| GOODYEAR | 3B12312 |
| GOODYEAR BELLOWS | 578-93-3-100 |
| GOODYEAR PART | 3B12-312 |
| HD VALUE | HDV8033, HDV8033 |
| HENDRICKSON | 003316, S14487, S-14487 |
| HENDRICKSON AUXILLARY | 3316 |
| MERITOR | FS8033, MAF8033 |
| PISTON | 3292 |
| STEMCO | 3B12-301, 3B12-303, 3B12-304, 3B12-305, 3B12-310, 3B12-312 |
| TOP PLATE | 3271 |
| TORQUE PARTS | TR8033 |
| TRIANGLE | 4508, 4525 |
| TRIANGLE BELLOWS | 6334 |
| TRIANGLE PART | 4525 |
| TRIANGLE SUSPENSION | AS-4525 |
| WORLD AMERICAN | WA01-8033C |
