(888) 312-8812 Login SignupFIRESTONE W013589586 Airide Air Spring Reversible Sleeve 1T15TQ-1
Tap to view 1 more
$57549
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
FIRESTONE W013589586 Part Description
Manufacturer
Features & Benefits
- Handles suspension load using compressed air inside the chamber
- Reversible sleeve configuration accommodates suspension articulation
- 1/2 NPT connection port attaches to the vehicle air supply line
- Bellows assembly flexes with axle movement over uneven surfaces
- Steel plate mounts hold the spring in the suspension bracket position
- Re-establishes air ride support in heavy-duty truck suspensions

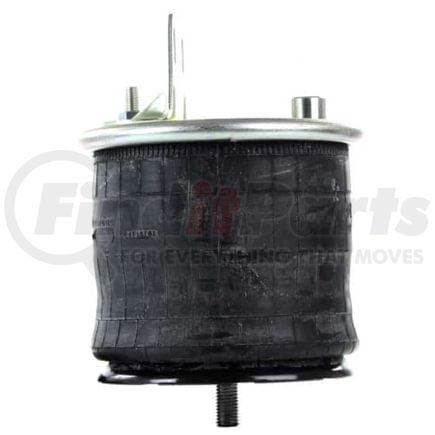

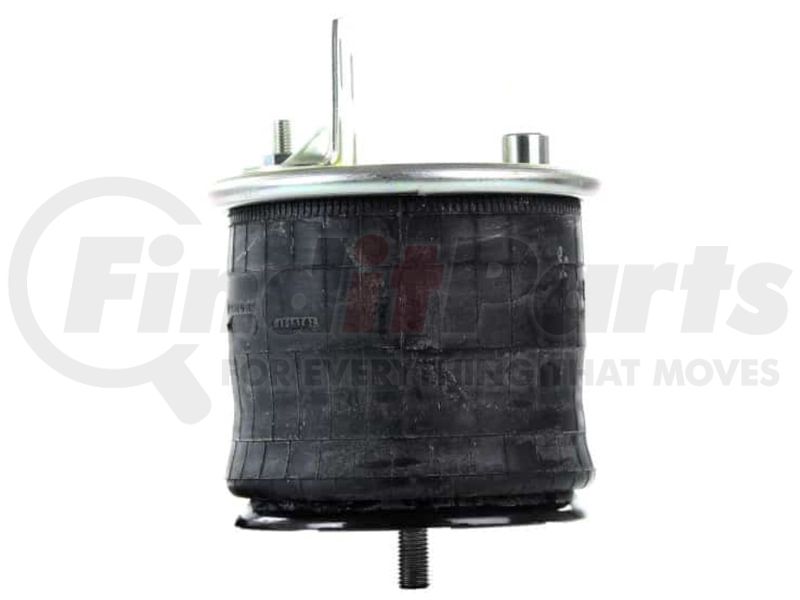

Firestone Airride Air Spring Reversible Sleeve
The Firestone Airride Air Spring Reversible Sleeve serves as the flexible chamber that supports vehicle weight in air ride suspension systems. Pressurized air entering the reversible sleeve expands the bellows and lifts the vehicle frame above the axle assembly. As the truck travels across rough pavement or uneven terrain, the spring compresses and rebounds to absorb vertical movement. This action cushions road input and helps keep the suspension operating within its designed travel range. Whenever suspension assemblies require a 1T15TQ-1 reversible sleeve configuration with a 1/2 NPT port bracket, the Firestone W013589586 suspension air spring kit provides that setup.

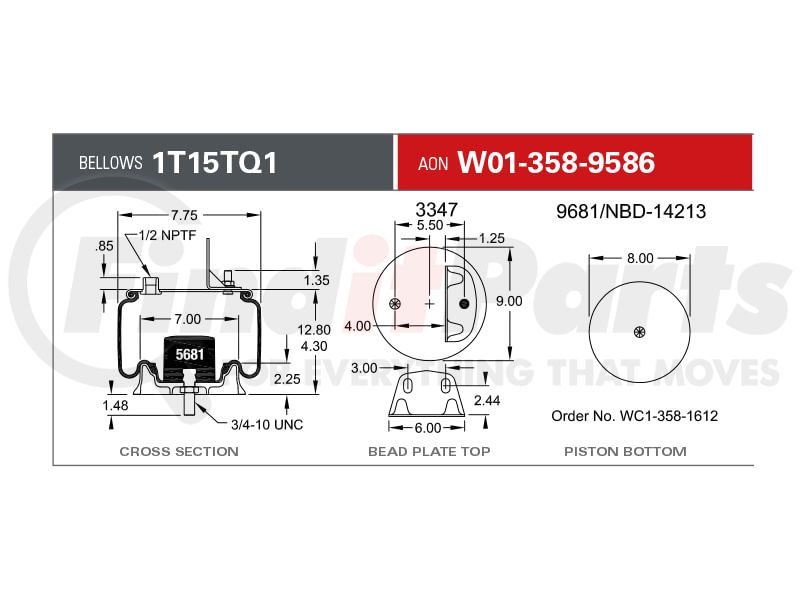

FIRESTONE W013589586 Cross References
| Brand | Part Number |
|---|---|
| FIW013589586, 90557249 | |
| FIRESTONE | 1T15TQ-1 |
| HOLLAND (NEWAY) | 905-57-221, 905-57-249 |
| PISTON | 9681 |
| TOP PLATE | 3347 |
FIRESTONE W013589586 Customer Reviews
No reviews yet
Be the first to review this product!
FIRESTONE W013589586 Manufacturer Information
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
FIRESTONE W013589586 Questions & Answers
Q:
by Scott on January 31, 2026
Hi. I am searching for replacement Firestone Airide air springs for my 2006 Winnebago Journey on a Freightliner chassis. The Firestone part numbers on the original bags are w016759586 (front) and w016758184 (rear). I located a cross reference online that comes up with w013589586 (front) and w013588184 (rear) I am seeking verification of correct fit for these new numbers. The last 6 digits of the VIN, if this can help, are W26611.
Thank you for any assistance you can provide.
Scott
A:
by Ed Staff on February 02, 2026
I have reached out to you via email with a quote for what the vin calls for
