FIRESTONE W013589921 Part Description
Manufacturer
Features & Benefits
- Bellows construction uses thick rubber to prevent air leaks under heavy cargo weight
- Absorbs the impact from road bumps to protect the frame and the suspension
- Assembly hardware matches the original mounting holes for a fast and simple installation
- Prevents the trailer from leaning by keeping the air pressure even across axles
Firestone Air Spring
The Firestone Air Spring absorbs road vibrations to protect the vehicle chassis and cargo from impact damage. This heavy-duty air bag uses reinforced rubber bellows to carry the vertical load of the trailer axle. Those flexible walls expand under air pressure to create a cushion that prevents the frame from bottoming out on the suspension. This cushioning effect results in a level ride height that keeps the trailer stable during high-speed transit. The steel mounting plates on this Firestone W013589921 air bag unit match factory bolt holes to provide a secure foundation for the pressurized air.

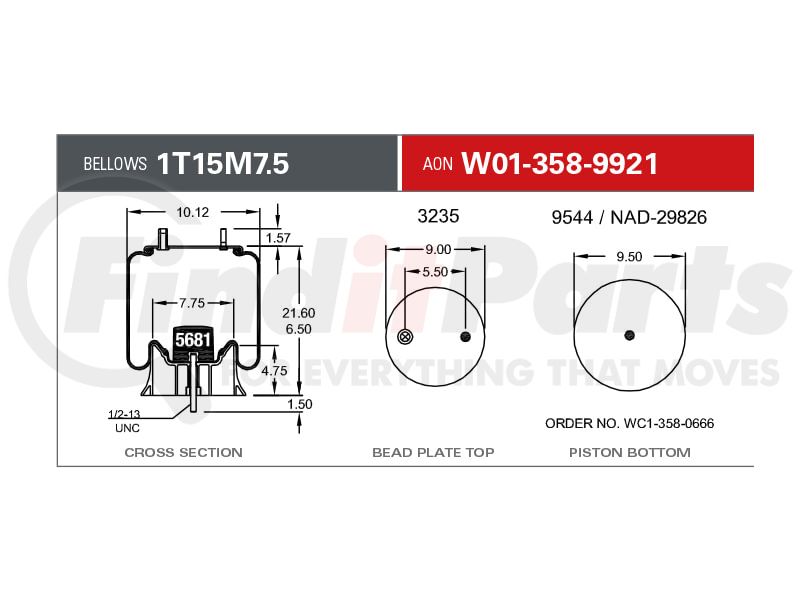

TECHNICAL DATA:
- Order Number: W01-358-9921
- Bellows #: 1T15M-7.5
- Assembly Weight: 13.6 lbs
- Design Height: 13.5-15.5 inches
- Minimum Jounce Height: 6.5 inches
- Maximum Rebound Height: 20.9 inches
- Loading Capacity at 20 psig: 1,440 lbsf
- Loading Capacity at 60 psig: 4,320 lbsf
- Loading Capacity at 90 psig: 6,480 lbsf
- Natural Frequency: Hz
- Maximum Diameter: 12.7 inches
- Material Type: Natural Rubber
- Operating Temperature: 57Cº to-54Cº
FIRESTONE W013589921 Cross References
| Brand | Part Number |
|---|---|
| AS9921, 1R12-502, W016759921, 566243097, 6391, FIW013589921 | |
| CONTITECH | 910175P443, AS9921 , AS9921, 64402 |
| DAYTON PARTS | 452-9921L |
| FIRESTONE | 1T15M-7, 1T15M-7.5 |
| GOODYEAR | 1R12502, 1R12909 |
| GOODYEAR PART | 1R12-502 |
| HD VALUE | HDV9921, HDV9921 |
| HOLLAND (NEWAY) | 905-57-117 |
| MERITOR | FS9921, MAF9921 |
| NEWAY | 90557117 |
| PISTON | 9544 |
| POWER10 PARTS | AB-1R12-502 |
| SAF-HOLLAND | 90557117 |
| TOP PLATE | 3235 |
| TORQUE PARTS | TR9921 |
| TRIANGLE | 8443 |
| TRIANGLE BELLOWS | 6391 |
| TRIANGLE PART | 8443 |
| TRIANGLE SUSPENSION | AS-8443 |
| WATSON | CH AS0090 |
| WATSON & CHALIN | AS0090 |
| WORLD AMERICAN | WA01-9921C |
FIRESTONE W013589921 Customer Reviews
No reviews yet
Be the first to review this product!
FIRESTONE W013589921 Manufacturer Information
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
