FIRESTONE W013589471 Part Description
Manufacturer
Features & Benefits
- Reinforced rubber bellows carry suspension load through air pressure
- Crimped end plates help secure the air chamber during operation
- Cushions road shock to help protect cargo and suspension components
- Responds to ride-height changes for steadier loaded trailer posture
Firestone Air Spring
The Firestone Air Spring provides pneumatic suspension support for compatible tandem trailer and heavy-duty suspension setups. This air spring is associated with Firestone style 1T15V-8 and several SAF-Holland cross references, so suspension position and mounting details should be checked before ordering. Its rubber bellows and end-plate construction work together to carry load while cushioning road movement. The Firestone W013589471 gives suspension service a genuine air spring option for applications that use this single-stud style.

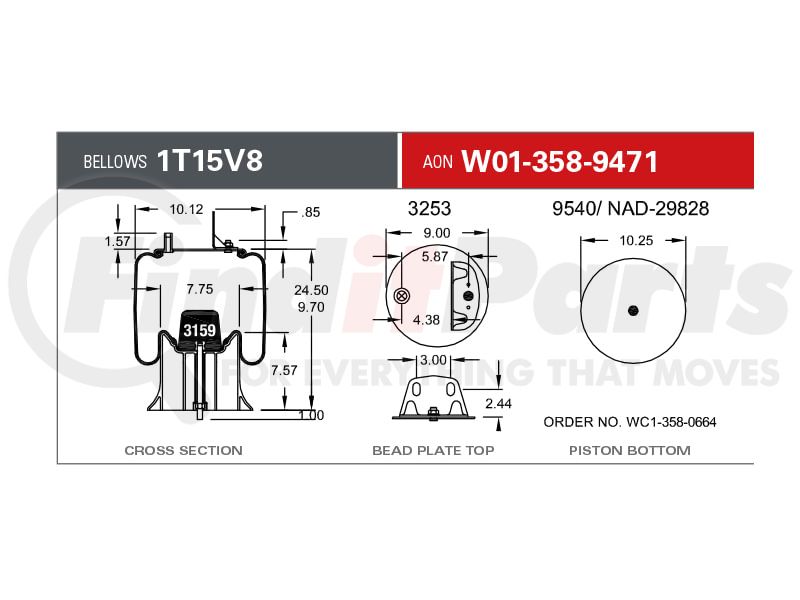

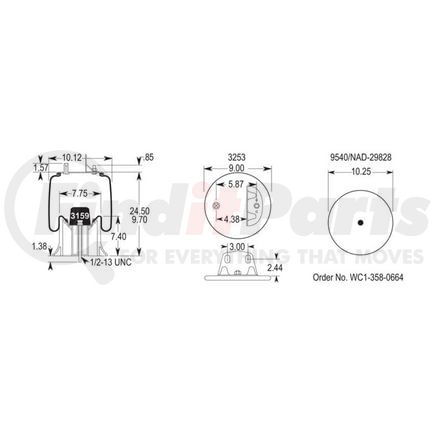

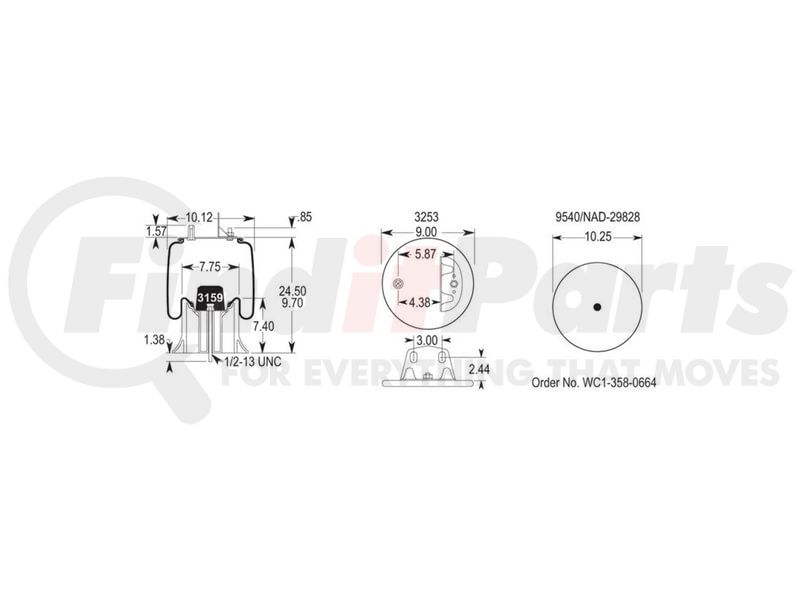

TECHNICAL DATA -
|
Order Number: |
W01-358-9471 |
|
Bellows #: |
1T15M-6 BKT |
|
Assembly Weight: |
N/A lbs |
|
Design Height: |
12-15 inches |
|
Minimum Jounce Height: |
7.88 inches |
|
Maximum Rebound Height: |
N/A inches |
|
Loading Capacity at 20 psig: |
1,408 lbsf |
|
Loading Capacity at 60 psig: |
4,224 lbsf |
|
Loading Capacity at 90 psig: |
6,336 lbsf |
|
Natural Frequency: |
Hz |
|
Maximum Diameter: |
12.6 inches |
|
Material Type: |
Natural Rubber |
|
Operating Temperature: |
57Cº to-54Cº |
|
Remarks: M-6 ON M-9 FRP PISTON |
|
|
TR: A-8730 |
FIRESTONE W013589471 Cross References
| Brand | Part Number |
|---|---|
| W016759471, W016759487, W016759490, 566243038, 566243066, FIW013589471 | |
| CONTITECH | AS9471 |
| DAYTON PARTS | 452-9471L |
| FIRESTONE | 1T15V-8 |
| GOODYEAR | 1R12372, 1R12504 |
| GOODYEAR BELLOWS | 566-24-3-038 |
| GOODYEAR PART | 1R12-485, 1R12-504 |
| HOLLAND (NEWAY) | 905-57-146, 905-57-177, 905-57-182, 905-57-212, 905-57-214 |
| MERITOR | FS9471, MAF9471 |
| NEWAY | 90557146, 90557177 |
| PISTON | 9540 |
| SAF-HOLLAND | 90557177, 90557182 |
| TOP PLATE | 3253 |
| TORQUE PARTS | TR9471 |
| TRIANGLE BELLOWS | 6369 |
| TRIANGLE PART | 8445 |
| TRIANGLE SUSPENSION | AS-8502 |
| WORLD AMERICAN | WA01-9471C |
