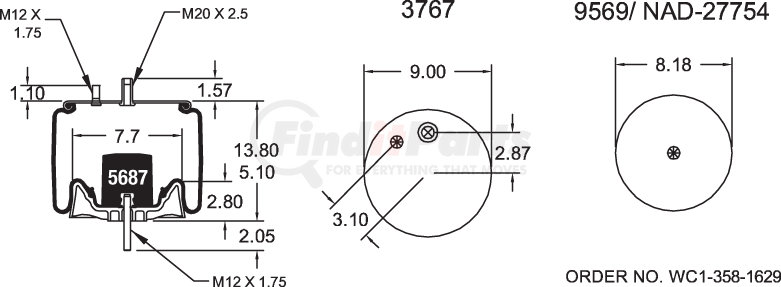

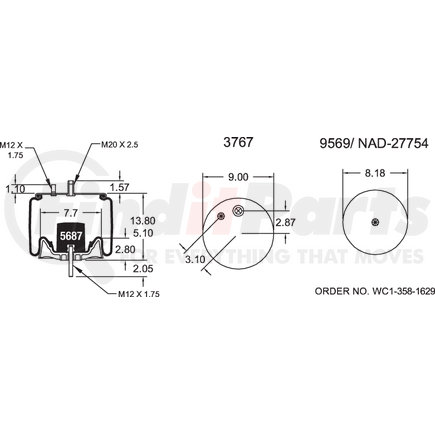

FIRESTONE W013589554 Airide Air Spring Reversible Sleeve 1T15LP-2

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

FIRESTONE W013589554 Part Description

Manufacturer

FIRESTONE

TECHNICAL DATA -

Order Number:

W01-358-9554

Bellows #:

1T15LP-2

Assembly Weight:

11.2 lbs

Design Height:

7.5-8.5 inches

Minimum Jounce Height:

5.1 inches

Maximum Rebound Height:

14.1 inches

Loading Capacity at 20 psig:

1,260 lbsf

Loading Capacity at 60 psig:

3,780 lbsf

Loading Capacity at 90 psig:

5,670 lbsf

Natural Frequency:

Hz

Maximum Diameter:

10.8 inches

Material Type:

N/A

Operating Temperature:

57Cº to-54Cº

Remarks:

FIRESTONE W013589554 Cross References

BrandPart Number
W014559554, FIW013589554
CONTITECH68608
FIRESTONE1T15LP2, 1T15LP-2
HENDRICKSON607162, 60716-2
HENDRICKSON TRUCK607162
PISTON9569
TOP PLATE3767
