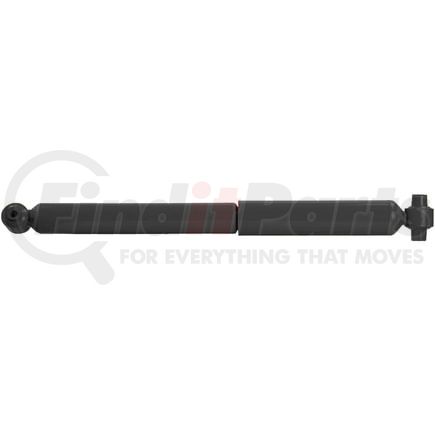

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | LS30 |
| Upper Mount Code | LS106 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 15.93 IN |
| Extended Length | 25.96 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.7/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 10.03 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14mm Sleeve ID X 2 15/16" Sleeve OAL |
| Compressed Length | 404.6 MM |
| Extended Length | 659.4 MM |
| Travel Length | 254.8 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598156648 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 66451MM, GA1Z5804608CE | |
| BILSTEIN | 19255576 |
| FCS | 347078, F347078 |
| Ford | BK3Z18124A, BK3Z18124B, BK3Z18124C, CK4Z18124D, CK4Z18124E, CK4Z18124F, CK4Z18124G, CK4Z18125G, CK4Z18125H, CK4Z18125J, CK4Z18125K, CK4Z18125L, CK4Z18125M, CK4Z18125Q, CK4Z18125S, CK4Z18125T, FK3Z18125C, FK4Z18125E, FK4Z18125F, FK3Z18125E, FK4Z18125B, FK4Z18125C, FK4Z18125D, LK4Z18125C, MK3Z18125A, FK4Z18125D , FK4Z18125B , LK4Z18125C |
| Gabriel | G64177 |
| MOTORCRAFT | ASH24692, ASH24600, ASH24690, ASH24598, ASH24729 |
| Motorcraft | ASH24723, ASH24724, ASH24726, ASH24728, ASH866072 |
| NAPA Shocks | 66451 |
| OEM | CK4Z18125Q, CK4Z18125H, CK4Z18125S, CK4Z18125K, FK4Z18125F |
| PM Auto | PM6001547 |
| PRT HD | 170257 |
| SENSEN | 1214-0439 |
| Sachs | 316961 |
| Sensen | 12140439 |
| TRW | JGT6282S |
| Unity | 252190 |
