(888) 312-8812 Login SignupWAGNER BD125752E Wagner Brake BD125752E Disc Brake Rotor
Tap to view 2 more
MSRP: $86.86
$6799
Save $18.87
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9
WAGNER BD125752E Part Description
Manufacturer
Product Description

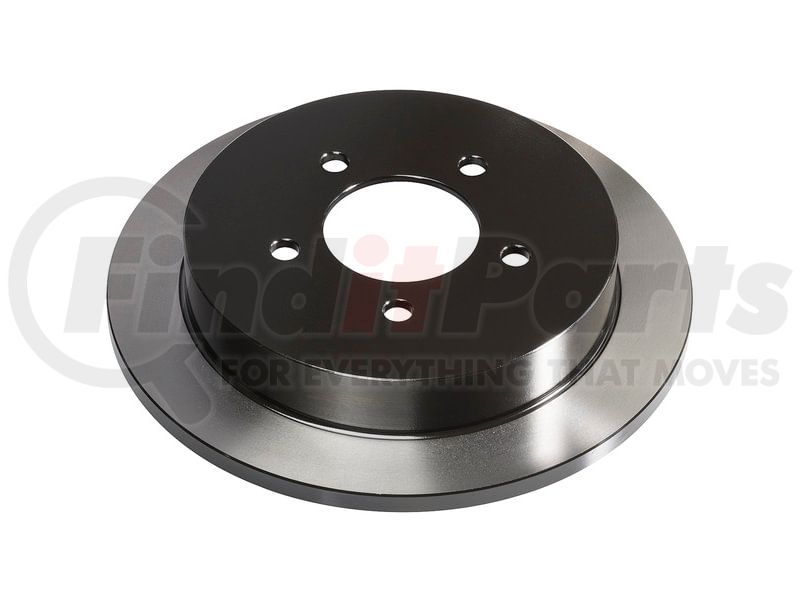

Disc Brake Rotor
Application Summary
2004 Ford F-150 Heritage (Rear) (Qualifier: Except 7,700 (lb) GVW, Eleventh Digit of VIN is C;M, 5 Stud Wheel, with 334 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1997-2002 Ford Expedition (Rear) (Qualifier: 5 Stud Wheel, with 334 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1997-2003 Ford F-150 (Rear) (Qualifier: 5 Stud Wheel, with 334 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, Except 7,700 (lb) GVW); 2002 Lincoln Blackwood (Rear) (Qualifier: 5 Stud Wheel, with 334 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1998-2002 Lincoln Navigator (Rear) (Qualifier: 5 Stud Wheel, with 334 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125752E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 14.0 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 334.0 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Height | 56.0 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 0.551 IN |
| Outside Diameter | 13.140 IN |
| Height | 2.204 in |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 2.204 IN |
| Overall Height | 56.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536933762 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125752E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1107, 18A1107A, 18A1107AC |
| Aimco | 54090 |
| Autospecialty | AR-8559, AR8559, AR8582 |
| Bendix | 145140, 145299 |
| Bosch | 20010322 |
| BrakeBest Select Drum/Rotor | 66670RGS |
| Brembo | 27145 |
| CENTRIC | 120.65085 |
| Carquest | 54047, 54090 |
| Carquest Wearever | YH145140 |
| Centric Parts | 120.65059, 120.65085, 121.65085, 12065059, 12065085, 12165085, 121.65059, 320.65059F, 320.65085F |
| DuraGo | BR54090, BR54090-01, BR54090-02 |
| Duralast | 54047 |
| Dynamic Friction Company | 604-54173, 600-54173 |
| Ford | F75Z2C026BC, XL1Z2C026AA, XL3Z2C026DA, YL1Z2C026AA, YL3Z2C026AA, 2U2Z1V125AB, YL7Z1V125A |
| NAPA | 4886670, 4886947, 86670, 86947 |
| NAPA BRAKES | 86670CR, 4886670, 24886670 |
| PowerStop | AR8582, AR8582EVC, AR8559 |
| Pro-Series | C25752 |
| RAYBESTOS | 66947, 66947R |
| Raybestos Brakes | 66670, 66670R, 66947, 66947R, 66947FZN, 66947R2, 66670FZN |
| Winhere | UR000142 |
WAGNER BD125752E Fits Vehicles
- Ford F-150 Heritage (2004)
- Lincoln Navigator (1998-2002)
- Lincoln Blackwood (2002)
- Ford F-150 (1997-2003)
- Ford Expedition (1997-2002)
