(888) 312-8812 Login SignupRAYBESTOS 66670 Raybestos Specialty - Truck Brake Rotor
$102.17
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 66670 Part Description
Manufacturer
Product Description

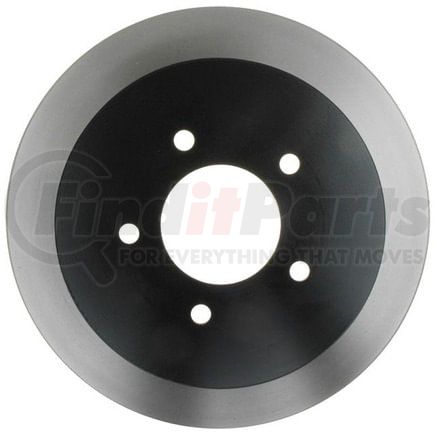

Raybestos Specialty - Truck Brake Rotor
Application Summary
2000-1997 Ford F-150 Rear, 2002-1997 Ford Expedition Rear, 2002-1998 Lincoln Navigator Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 66670 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.44 IN |
| Center Hole Diameter | 87.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.472 IN |
| Discard Thickness | 12 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.56 IN |
| Mounting Bolt Hole Diameter | 14.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.556 IN |
| Nominal Thickness | 14.1 MM |
| Outside Diameter | 13.15 IN |
| Outside Diameter | 334 MM |
| Overall Height | 2.21 IN |
| Overall Height | 56.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730215921 |
RAYBESTOS 66670 Cross References
| Brand | Part Number |
|---|---|
| 610-0014, 747730215921 | |
| ADVANCE AUTO PARTS | 145140, YH145140, YH145140C, YH145140P |
| AMERICAN REMANUFACTURED | 789-42059, 89-42059, 89-42085 |
| AUTOSPECIALTY | AR8559, AR8559E |
| AUTOXTRA | AX54090 |
| AUTOZONE | 54047, 54047B, 54047DG, 54047DL, DL54047 |
| Autoxtra | AX54090P |
| BENDIX | 145140 |
| BOSCH | RBR54047 |
| BRAKE HEADQUARTERS | BR54702 |
| BRAKEBEST | 20010330, 66670, 66670FZN, 66670R, 66670RGS |
| BREMBO | 08.8445.85, 27168, 08.8994.81 |
| Brembo | 08.8445.80 |
| Bridgestone | 7005023 |
| CALIFORNIA DRUM & ROTOR | 125526 |
| CENTRIC | 120.65059, 121.65059, 125.65059, 126.65059CSL, 126.65059CSR, 126.65059SL, 126.65059SR, 127.65059L, 127.65059R, 128.65059CL, 128.65059CR, 128.65059L, 128.65059R, 227.65059L, 227.65059R, 320.65059, 320.65059F, 321.65059 |
| CONTINENTAL-CONTITECH | CW14702 |
| Casting Numbers | 325218, 540471 |
| Centric Parts | 120.65059, 121.65059, 125.65059, 126.65059CSL, 126.65059CSR, 126.65059SL, 126.65059SR, 127.65059L, 127.65059R, 128.65059CL, 128.65059CR, 128.65059L, 128.65059R, 227.65059L, 227.65059R, 320.65059, 320.65059F, 321.65059 |
| DELPHI | RB585 |
| DURA CORP | BR54047 |
| Dura Corp | BR54090 |
| DuraGo | BR54047, BR54090 |
| FORD | F75Z2C026BC, XL3Z2C026DA, XL1Z2C026AA |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12570064 |
| GREN | 649501 |
| GUARDIAN | 52-125526 |
| MAGMA PRODUCTS | PSR205177 |
| MIDAS | BR2048 |
| MIGHTY DISTRIBUTING SYSTEM | 54047 |
| MOTORCRAFT | BRR65 |
| NEOTEK | 107176GF |
| NEWTEK AUTOMOTIVE | 54047 |
| Newtek Automotive USA | 54047 |
| PARTS MASTER | P125526 |
| POWERSTOP | AR8559EVC |
| PROMAX | 14-54047 |
| PRONTO | BR54090 |
| QUALIS | 54047 |
| QUALITEE INTERNATIONAL | 64-92-310 |
| QUALITY BRAND | 54047, Q4129 |
| STANDARD ROTORS AND DRUMS | 54047 |
| THE UNIVERSAL GROUP | 102561 |
| TRUSTAR | 492310, R92310 |
| TopNotch | TN66670GEO |
| UAP | 54047 |
| Ultra Brake | 54211 |
| Universal | 102561 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51204 |
| WAGNER | BD125752E, BD125752 |
| WAGNER BRAKE | BD125526 |
| WINHERE | 661185, YH1185 |
| WORLDPAC | 1407-25649 |
RAYBESTOS 66670 Fits Vehicles
- Lincoln Navigator (1998-2002)
- Ford F-150 (1997-2003)
- Ford Expedition (1997-2002)
