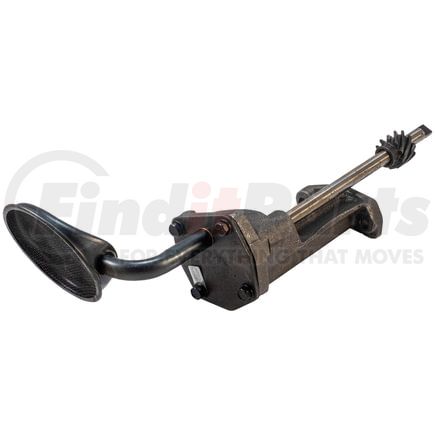

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M-28GS M-28GS Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M-28GS Part Description
MELLING ENGINE PRODUCTS M-28GS Specifications
Product Attributes
| Title | Engine Oil Pump |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Oil Pump Type | Gear |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Gears Included | Yes |
| Pickup Screen Included | Yes |
| Intermediate Shaft Included | Yes |
| Inlet Size (in) | 0.630 |
| Inlet Size (mm) | 16.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | Yes |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Steel |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Alternate Pressure Springs Included | No |
| Mounting Hole Diameter | 0.375 IN |
| Gear Type | Spur Gear |
| Drive Shaft Included | Yes |
| Adjustable Pickup Screen | No |
| Width | 3.250 IN |
| Height | 11.50 IN |
| Width | 82.55 MM |
| Height | 292.10 MM |
| Mounting Hole Diameter | 10.00 MM |
| Drive Type | Drive Shaft |
| Gear Material | Powdered Metal |
| Adjustable Bypass Pressure | No |
| Pickup Screen Diameter | 95.25 MM |
| Pickup Tube Diameter | 15.875 MM |
| Pickup Tube Diameter | 0.652 IN |
| Pickup Screen Diameter | 3.75 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295100362 |
MELLING ENGINE PRODUCTS M-28GS Cross References
| Brand | Part Number |
|---|---|
| Balkamp | 601-1129 |
| Dynagear | DM-28GS |
| Elgin | EM-28GS |
| Enginetech | N/A |
| Federated | DM-28GS |
| Hoof | HM28GS |
| ITM Engine Components | N/A |
| International Harvester (IHC) | 398073-R93 |
| MAHLE | 601-1129 |
| MELLING ENGINE PRODUCTS | M-28GS |
| Melling | M-28GS |
| N/A | N/A |
| Perfect Circle | 601-1129 |
| Pioneer | OP-28-GS |
| Safety Auto Parts Corp | N/A |
| Sealed Power | N/A |
| Topline | N/A |
