(888) 312-8812 Login SignupMONROE 65167 Magnum Front Suspension Shock Absorber
Tap to view 11 more
$9299
Limited availability at this price!
In Stock
Get it by Monday, Jul 20
MONROE 65167 Part Description
Manufacturer
Product Description

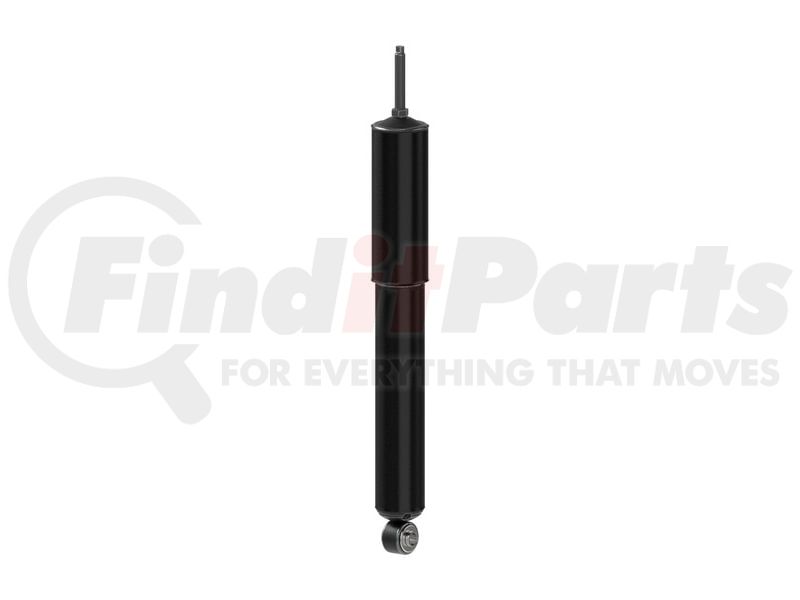

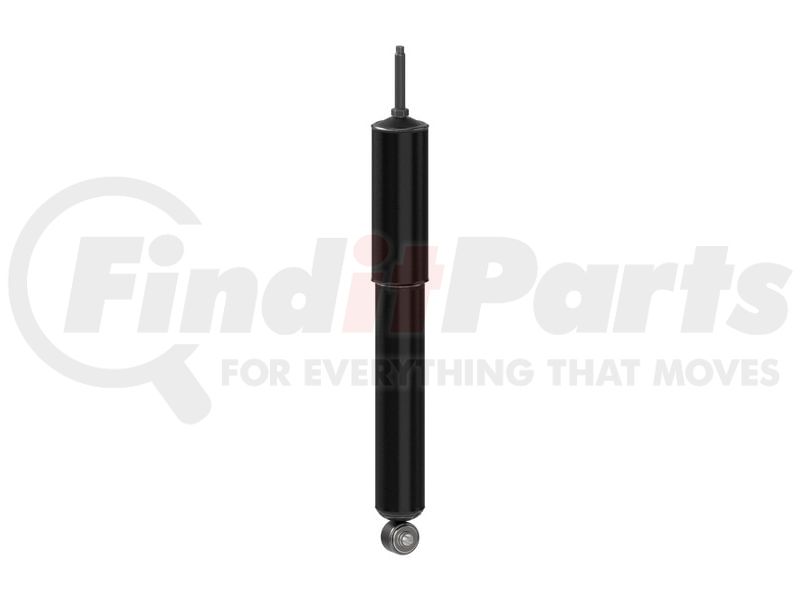

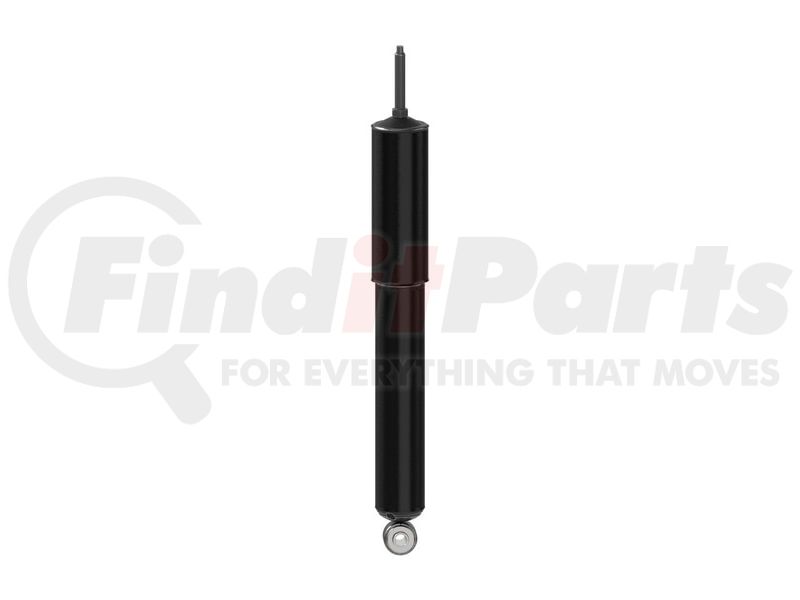

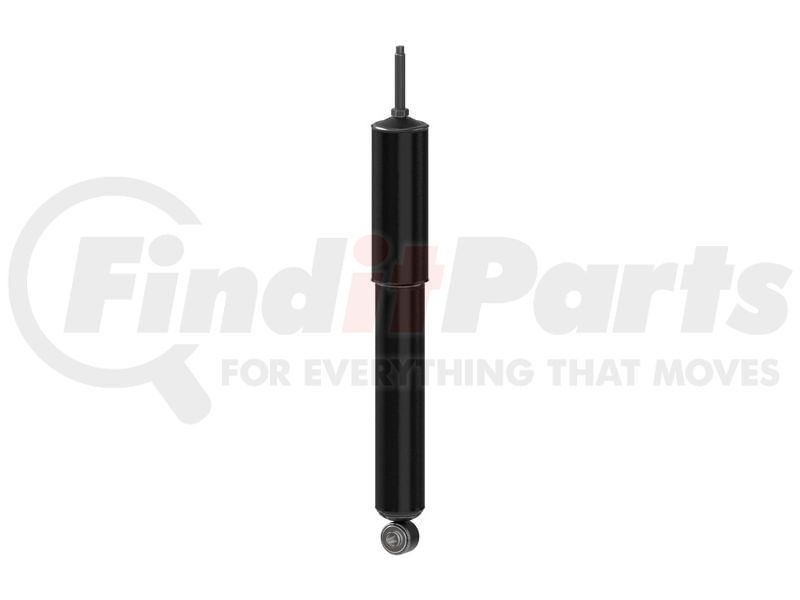

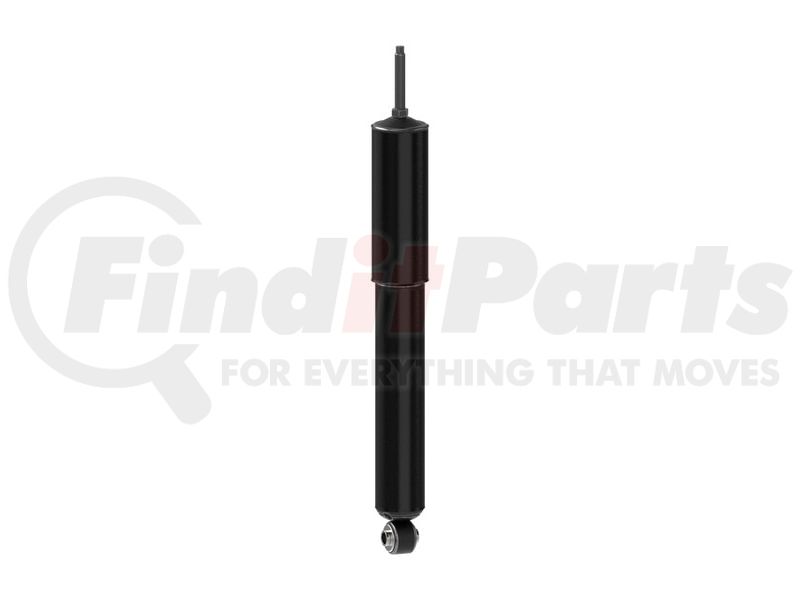

Magnum Front Suspension Shock Absorber
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 65167 Specifications
Product Attributes
| Compressed Length | 13.375 IN |
| Compressed Length | 339.7 MM |
| Extended Length | 20.875 in |
| Extended Length | 530.2 MM |
| Travel Length | 7.5 in |
| Travel Length | 190.5 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS47 |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Upper Mount Code | S5 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01167 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Finish | Painted |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Shock Absorber Bore Size | 44.5 MM |
| Shock Absorber Bore Size | 1.75 IN |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Adjustable Damping | No |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
| Foam Cell Design | No |
| Shaft Diameter | 18 MM |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598026309 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 65167 Cross References
| Brand | Part Number |
|---|---|
| 65167MM, MAE65167 | |
| Autopart International | 2725539647 |
| BILSTEIN | 24186674 |
| BULLDOG HD SHOCKS | HD1215-0006 |
| FORD | 7C3418045HB |
| Ford | 1C3Z18125DA, 5C3Z18124JA, 5C3Z18125DA, 7C3Z18124HA, 7C3Z18124NJA, 7C3Z18125DCA, 7C3Z18125DJA, 7C3Z18125LJA, 9C3Z18125C, BC3Z18124AC, BC3Z18124J, BC3Z18124Q, BC3Z18124W, BC3Z18125AD, BC3Z18125AP, BC3Z18125AQ, BC3Z18125B, BC3Z18125G, BC3Z18125H, BC3Z18125X, FC3Z18124A, FC3Z18124B, FC3Z18125A, FC3Z18125B, HC3Z18124F, HC3Z18124J, HC3Z18124Q, HC3Z18124W, HC3Z18125A, HC3Z18125AD, HC3Z18125B, HC3Z18125C, HC3Z18125D, HC3Z18125EA, HC3Z18125ED, HC3Z18125EE, HC3Z18125EF, HC3Z18125J, HC3Z18125K, HC3Z18125X, PC3Z18124CGA, PC3Z18124CHA, PC3C18045HA, PC3C18045CHA, PC3Z18124SGA, PC3C18045CGA, LC3Z18124F, PC3Z18124HA, PC3C18045SGA, LC3Z18124S, LC3Z18124G |
| GABRIEL | G63969, 58944 |
| HALDEX | SA65167 |
| KYB | 349004, 565121, 345080, 554347 |
| MOTORCRAFT | ASH12171, ASH24498 |
| NAPA Shocks | 65167 |
| OEM | FC3Z18124A, BC3Z18124J, BC3Z18124AC, 7C3Z18124NJA, 7C3Z18124HA, BC3Z18124Q, FC3Z18124B, BC3Z18124W |
| PRT HD | 170228 |
| SENSEN | 1215-0006 |
| Sensen | 12150006 |
MONROE 65167 Fits Vehicles
- Renegade Veracruz (2019-2023)
- Thor Motor Coach Omni (2019-2023)
- Thor Motor Coach Four Winds Super C (2013-2019)
- Thor Motor Coach Chateau Super C (2013-2019)
- Thor Motor Coach Outlaw (2014-2015)
- Jayco Seneca XT (2023)
- Ford F-600 Super Duty (2020-2024)
- Ford F-450 Super Duty (2005-2026)
- Ford F-550 Super Duty (2005-2025)
