(888) 312-8812 Login SignupADVICS A6F063 ADVICS OE Disc Brake Rotor
Tap to view 5 more
$8449
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
ADVICS A6F063 Part Description
Manufacturer
Product Description

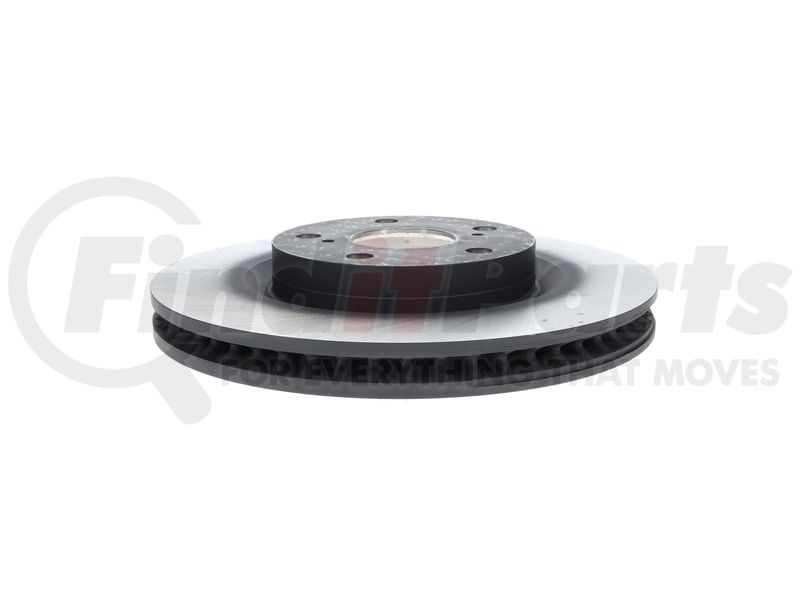

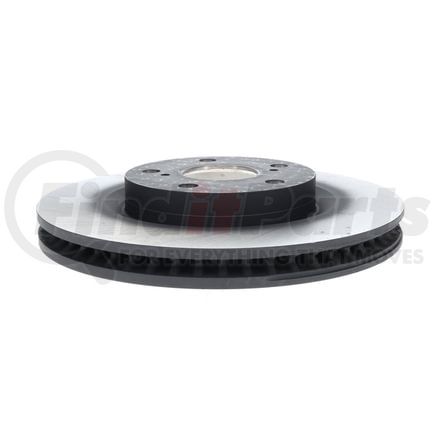

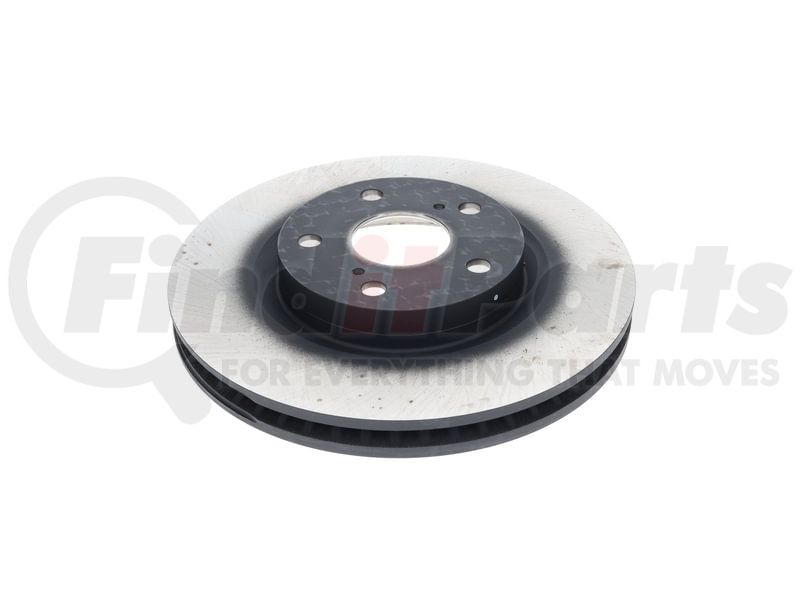

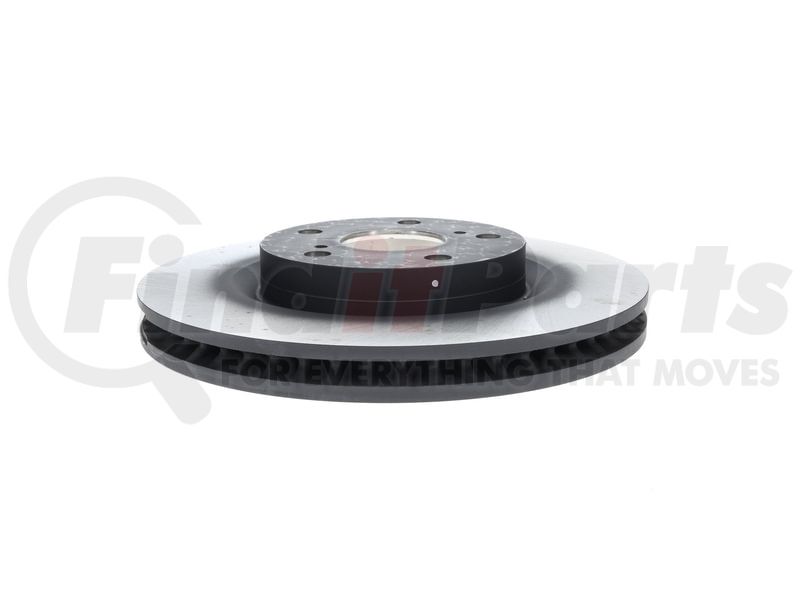

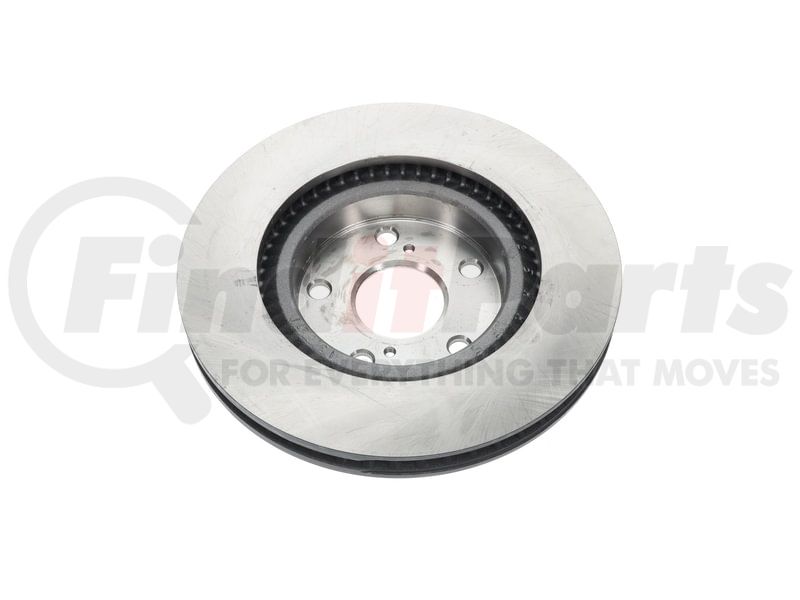

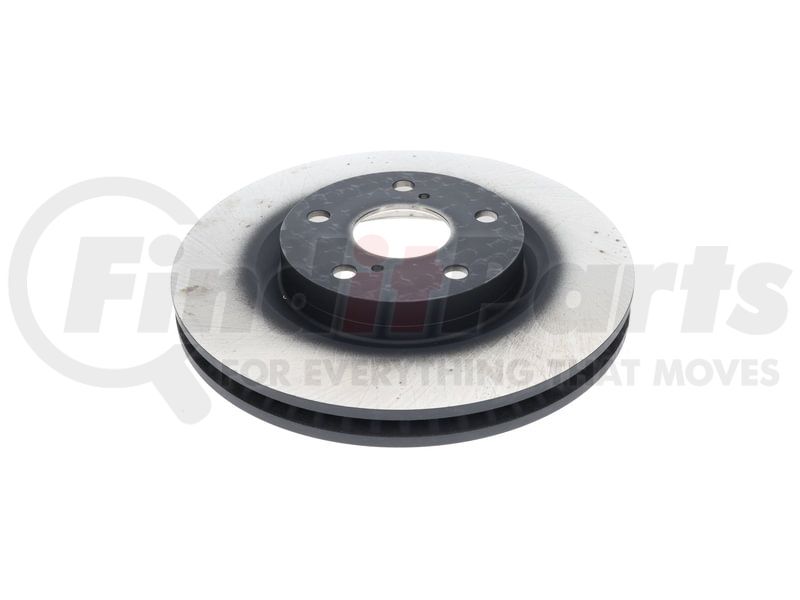

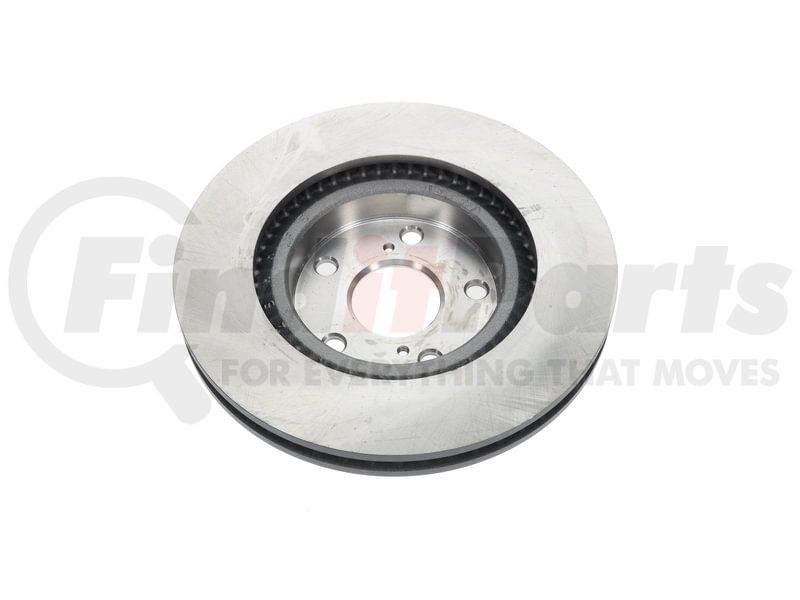

ADVICS OE Disc Brake Rotor
Features & Benefits
- Constructed to OEM weight, vane count and air gap using high carbon metallurgy to maintain thermal stability reducing opportunities for warping while providing longer pad and rotor life. Corrosion protection coating applied to match OEMs.
ADVICS A6F063 Specifications
Product Attributes
| Diameter | 296mm |
| Material | High Carbon |
| Discard Thickness | 25 MM |
| Nominal Thickness | 28 MM |
| Disc Finish | Non-Directional |
| Hat Finish | Coated |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Inside Diameter | 190 MM |
| Overall Height | 49.2 MM |
| Outside Diameter | 296 MM |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Premium |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 62 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 14.3 MM |
| 9448 | 5 EA |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309930 |
| UPC | 04562372092817 |
ADVICS A6F063 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | A6F063 |
| AISIN | A6F063 |
| Bendix | PRT6155 |
| Centric Parts | 120.44146 |
| Dura Corp | BR900340 |
| IMC | A6F063 |
| N/A | 980470, 980973, BR900340, YH145713P, A6F063, 604-76080, 320.44146F |
| Raybestos Brakes | 980470, 980973 |
| Toyota | 43512-06090, 43512-06150, 43512-33130, 43512-33140 |
| WORLDPAC | A6F063 |
| Wagner Brake | BD126407 |
ADVICS A6F063 Fits Vehicles
- Lexus ES300h (2013-2018)
- Toyota Avalon (2008-2018)
- Lexus ES350 (2007-2018)
- Toyota Camry (2007-2017)
