(888) 312-8812 Login SignupBENDIX K021564 SR-7™ Air Brake Spring Brake Modulating Valve - New
Tap to view 5 more
$40549
7 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
BENDIX K021564 Part Description
Manufacturer
Product Description
Spring Brake Valve
Features & Benefits
- Used primarily in dual circuit air brake systems with spring brake actuators
- Designed to provide a rapid application of the spring brake actuator when parking
- Modulates the spring brakes through the use of the service brake valve in case there’s a service brake system failure
- Prevents service and spring forces from compounding
- Bendix SR-7 valves have one park control, one service control, one supply, one balance, four delivery NPTF ports, and a diaphragm-protected exhaust port
- With two mounting studs for frame rail or cross member mounting
- Made of premium-quality materials to withstand harsh operating conditions and last longer than the competition
- All Bendix valves help save on maintenance and repair costs and reduce downtime
Courtesy of Bendix – All rights reserved

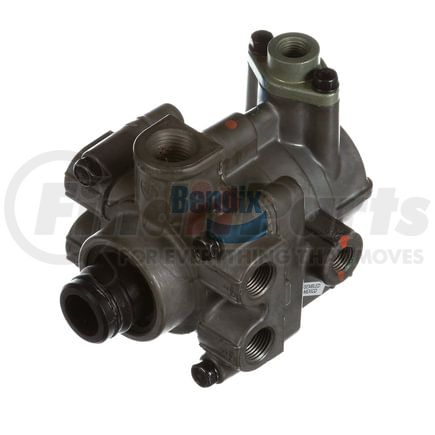

Bendix SR-7 Air Brake Spring Brake Modulating Valve
The Bendix SR-7 air brake spring brake modulating valve is the ideal replacement valve for your repair and maintenance project. Bendix engineers and tests this product using state-of-the-art technology to ensure the highest quality, maximum performance, and reliability.
BENDIX K021564 Specifications
Product Attributes
| Series | SR-7™ |
| Anti-Compounding | Yes |
| Balance Port | 1/4-18 NPT |
| Control Port | 1/4-18 NPT |
| Delivery Port 1 | 3/8-18 NPT |
| Delivery Port 2 | 3/8-18 NPT |
| Delivery Port 3 | 3/8-18 NPT |
| Delivery Port 4 | 3/8-18 NPT |
| Exhaust Orientation | Exhaust Facing Down |
| Exhaust Port | Exhaust Adapter (without Silencer) |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | 3/8-16 UNC-3B (2x) |
| Park Control Port | 1/4-18 NPT |
| Regulatory Compliance | FMVSS 121 |
| Spring Brake Hold-Off Pressure | 107 PSI |
| Supply Port | 1/2-14 NPT |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| UPC | 04068078225189 |
| VMRS Code | 013010496 |
BENDIX K021564 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX K021564 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
