CENTRIC 402.42009 Part Description
Manufacturer
Product Description

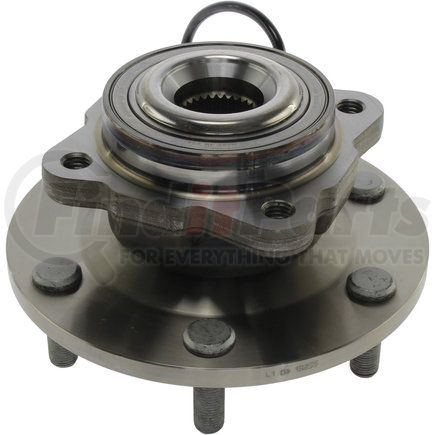

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 402.42009 Specifications
Product Attributes
| Off-set [cntrc] Mm | 2.219 |
| Inner Mount Pilot [cntrc] In | 3.503 |
| Off-set [cntrc] In | 56.360 |
| Inner Mount Pilot [cntrc] Mm | 88.980 |
| Notes [cntrc] | Same Hub as 402.42000 but with a different ABS Wire/Connector |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.250 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Spline Quantity | 32 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 77.670 MM |
| Wheel Pilot Diameter | 3.058 IN |
| Brake Pilot Diameter | 81.990 MM |
| Brake Pilot Diameter | 3.228 IN |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.733 IN |
| Flange Diameter | 171.020 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 00805890906476 |
CENTRIC 402.42009 Cross References
CENTRIC 402.42009 Fits Vehicles
- Nissan Armada (2012-2015, 2017-2019)
