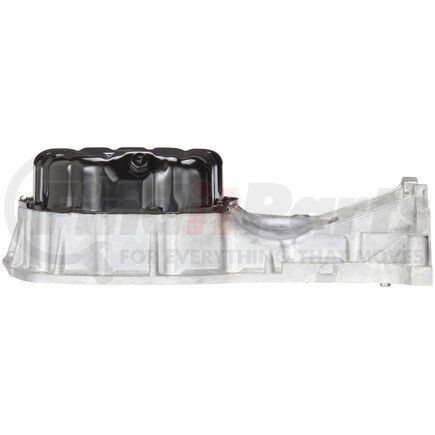

(888) 312-8812 Login SignupSPECTRA PREMIUM HYP13A Engine Oil Pan
Tap to view 3 more
$339.95
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
SPECTRA PREMIUM HYP13A Part Description
SPECTRA PREMIUM HYP13A Specifications
Product Attributes
| Baffled | Yes |
| Crank Shaft Wiper Included | No |
| Maximum Depth | 122.0000 MM |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Engine Oil Cooler Return Fitting | No |
| Kick Out Type Pan | No |
| Pickup Included | No |
| Sump Location | Front |
| Sump Type | Wet |
| Windage Tray Included | No |
| Finish | Black Powder Coating On Steel / Bare Aluminum |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 19 |
| Drain Thread Size | M14 X 1.5 |
| California_prop 65 Message | Y |
| Material | Cold Rolled Steel (EDDQ)/Aluminum |
| Capacity | 4.0000 LT |
| Length | 460.0000 MM |
| Maximum Width | 286.0000 MM |
| Color | Black & Silver |
| Oil Level Sensor Port | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8409914000 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | KR |
| UPC | 00671607015294 |
| VMRS Code | 045013001 |
| UNSPSC | 26101735 |
SPECTRA PREMIUM HYP13A Cross References
SPECTRA PREMIUM HYP13A Fits Vehicles
- Hyundai Sonata (1999-2001)
- Hyundai Santa Fe (2001)
