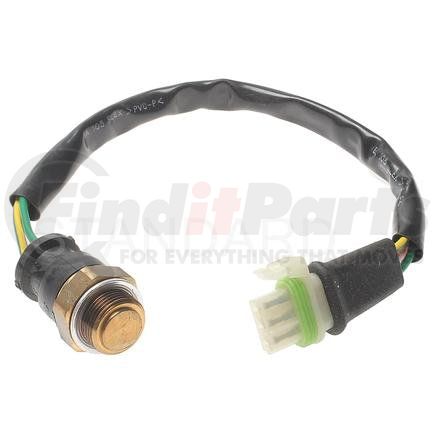

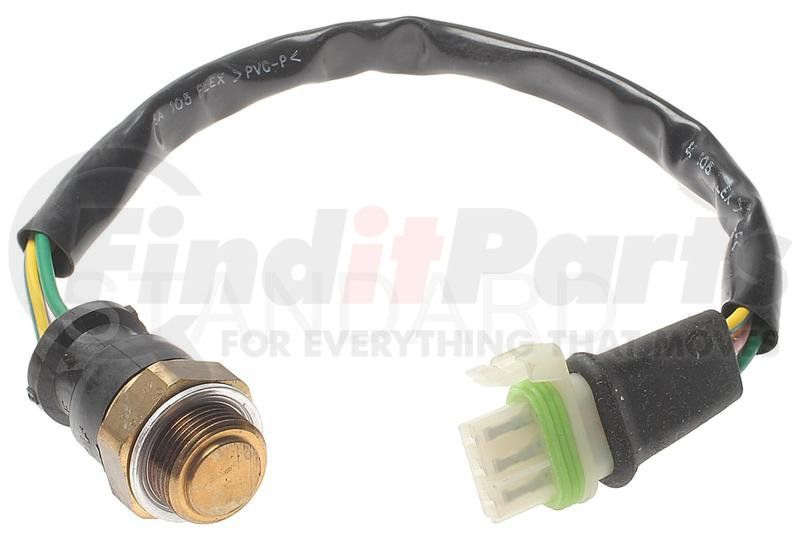

(888) 312-8812 Login SignupSTANDARD IGNITION TS238 Coolant Fan Switch
Tap to view 4 more
$4299
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Dec 24
STANDARD IGNITION TS238 Part Description
Manufacturer
Product Description
Coolant Fan Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
STANDARD IGNITION TS238 Specifications
Product Attributes
| Attachment Method | Plug In |
| Bulb Included | No |
| Color/Finish | Black, White |
| Connector Gender | Male |
| Connector Quantity | 1 |

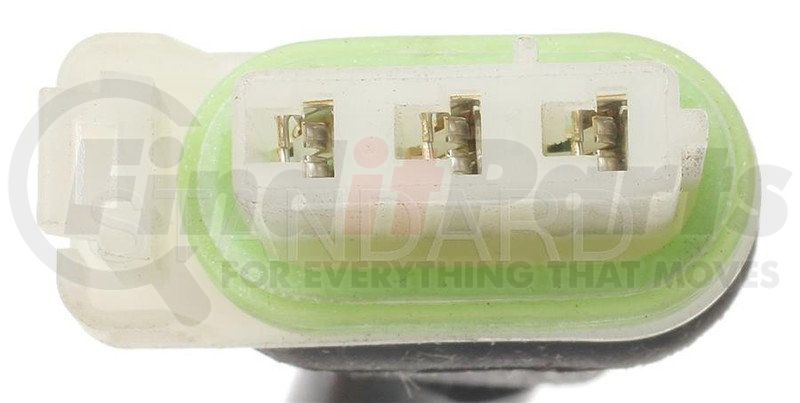

| Connector Shape | Rectangular |
| Finish | Brass |
| Hardware Included | No |
| Harness Length - inches | 12 |
| Harness Length - mm | 304.8 |
| Housing Material | Plastic, Metal |
| Mounting Bracket(s) Included | No |
| Open at Idle | Yes |
| Overall Width (MM) | 31.496 |
| Switch Actuation Style | Toggle |
| Switch Shape | Rectangular |
| Terminal Gender | Female |
| Terminal Quantity | 3 |
| Terminal Type | Blade |

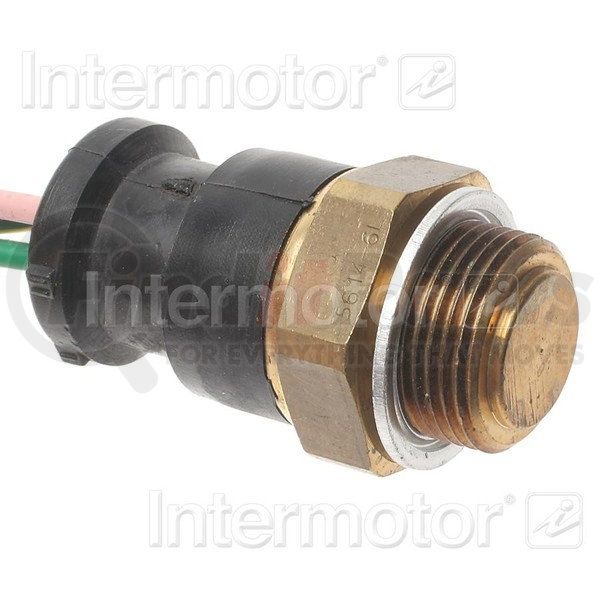

| Thread Size | 22MMX1.50 |
| Voltage | 12 |
| Width - Inches | 1.24 |
| Wire Quantity | 3 |
| Wiring Harness Included | Yes |
Additional Information
| Country of Origin (Primary) | IT |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769089306 |
STANDARD IGNITION TS238 Part Interchanges
| Brand | Part Number |
|---|---|
| Echlin | FS124 |
| Kem | RF75 |
| ACDelco | 19021188, E1852A |
| BWD | TFS26 |
| Chrysler | T0777683 |
| Duralast | SU16169, SW578, TXSB10001 |
| General Motors | 19021188 |
| Jeep | T0777683 |
| Renault | T0777683 |
| AMC | 7700777683, T0777683 |
| Airtex | 1S4414 |
| CARQUEST Premium By WELLS | 53-13874 |
| N/A | 5012983AA |
STANDARD IGNITION TS238 Fits Vehicles
- Eagle Medallion (1988-1989)
