(888) 312-8812 Login SignupRAYBESTOS 981009R Raybestos R-Line Brake Rotor
$50.48
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 981009R Part Description
Manufacturer
Product Description

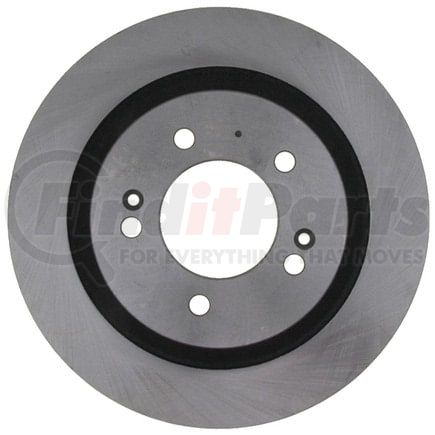

Raybestos R-Line Brake Rotor
Application Summary
2022-2015 Hyundai Sonata Rear, 2020-2013 Kia Optima Rear, 2022-2021 Kia Forte Rear, 2019-2017 Hyundai Ioniq Rear, 2019-2018 Kia Niro Rear, 2020-2018 Hyundai Elantra GT Rear, 2022-2020 Kia Forte5 Rear, 2019-2015 Kia Soul EV Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981009R Specifications
Product Attributes
| Center Hole Diameter | 2.992 IN |
| Center Hole Diameter | 76 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.02 IN |
| Inside Diameter | 203.7 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 11.181 IN |
| Outside Diameter | 284 MM |
| Overall Height | 1.268 IN |
| Overall Height | 32.2 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213037258 |
RAYBESTOS 981009R Cross References
| Brand | Part Number |
|---|---|
| ADVICS | R6R286U |
| ATE BRAKE PRODUCTS | 410400 |
| AUTOXTRA | AX901430 |
| Advance Auto Parts | YH504544 |
| AutoZone | 70121DG, 70121DL |
| Autoxtra | AX901430P |
| BRAKEBEST | 981009R, 981009RGS |
| CENTRIC | 120.50029, 121.50029 |
| DURA CORP | BR901430 |
| Hyundai | 51712AA000, 51712BE000, 51712L1000, 51712L1700, 5841101700, 58411G2300, 58411L0000, 58411L1000, 58411L1200 |
| KIA | 584113V500 |
| NEWTEK AUTOMOTIVE | R1430 |
| Newtek Automotive USA | R1430 |
| PEP BOYS | 901430G |
| POWERSTOP | JBR1712EVC |
| TopNotch | TN981009GEO |
| WORLDPAC | 1407-633028, 1407-720517, 1427-633029, 1427-732841 |
RAYBESTOS 981009R Fits Vehicles
- Hyundai Azera (2016-2017)
- Hyundai Elantra (2018, 2021-2025)
- Hyundai Elantra GT (2018-2020)
- Hyundai Ioniq (2017-2021)
- Hyundai Kona (2024-2025)
- Hyundai Sonata (2015-2025)
- Kia Cadenza (2014-2016)
- Kia Forte (2021-2024)
- Kia Forte5 (2020-2022)
- Kia K4 (2025)
- Kia K5 (2021-2025)
- Kia Niro (2017-2022)
- Kia Niro EV (2023-2025)
- Kia Optima (2012-2020)
- Kia Soul EV (2015-2020)
