(888) 312-8812 Login SignupRAYBESTOS 980578R Raybestos R-Line Brake Rotor
$62.10
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980578R Part Description
Manufacturer
Product Description

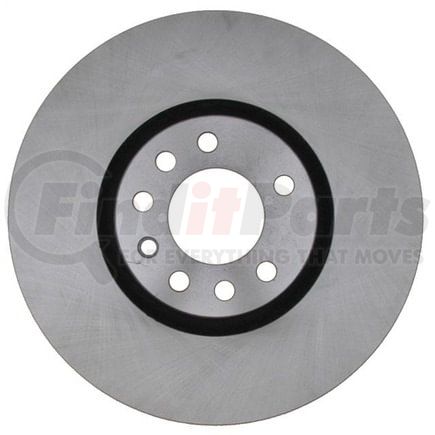

Raybestos R-Line Brake Rotor
Application Summary
2011-2003 Saab 9-3 Front, 2011-2010 Saab 9-3X Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980578R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.047 IN |
| Inside Diameter | 179 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.362 IN |
| Outside Diameter | 314 MM |
| Overall Height | 1.772 IN |
| Overall Height | 45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352870495 |
RAYBESTOS 980578R Cross References
| Brand | Part Number |
|---|---|
| AUTOZONE | 45404, 45404DG |
| BENDIX | PRT5600 |
| BRAKEBEST | 980578, 980578FZN, 980578R, 980578RGS |
| BREMBO | 09.9177.11, BFR135710 |
| CENTRIC | 120.38020, 121.38020, 125.38020, 125.38020CRY, 126.38020CSL, 126.38020CSR, 126.38020SL, 126.38020SR, 127.38020L, 127.38020R |
| Centric Parts | 120.38020, 121.38020, 125.38020, 125.38020CRY, 126.38020CSL, 126.38020CSR, 126.38020SL, 126.38020SR, 127.38020L, 127.38020R |
| DURA CORP | BR34291, BR901208 |
| DuraGo | BR901208 |
| Dynamic Friction Company | 604-65019 |
| MAGMA PRODUCTS | PMR503017 |
| NAPA BRAKES | SDK6396 |
| NEWTEK AUTOMOTIVE | 34291 |
| Newtek Automotive USA | 34291 |
| POWERSTOP | EBR687EVC |
| PROMAX | 14-34291 |
| Qualis | 45404 |
| SAAB | 93175606 |
| UAP | R38020 |
| Ultra Brake | SA-406 |
| WABCO | PS180156 |
| WABCO - Archived | PS180156 |
| WAGNER BRAKE | BD180155, BD180156 |
| WINHERE | 6620273 |
RAYBESTOS 980578R Fits Vehicles
- Peugeot 407 (2006-2008)
- Cadillac BLS (2007-2008)
- Saab 9-3X (2010-2011)
- Saab 9-3 (2003-2011)
