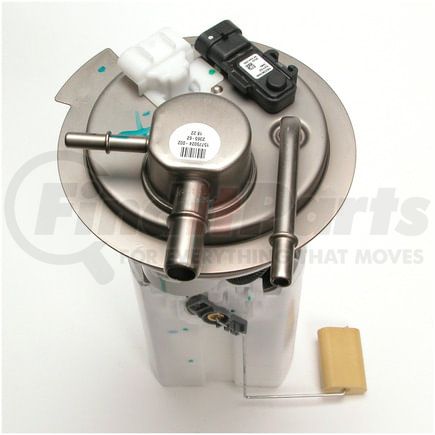

(888) 312-8812 Login SignupDELPHI FG0402 Fuel Pump Module Assembly
MSRP: $923.10
$35449
Save $568.61
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 17
DELPHI FG0402 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0402 Specifications
Product Attributes
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Vapor Pressure Sensor | Yes |
| Fuel Type | Flex |
| System Pressure | 54 psi |
| Item Grade | Standard Replacement |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Regulator Included | Yes |
| Maximum Pressure | 73 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 250 82 |
| Resistance Ohms Full | 40 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 11 68 |
| Average Flow Rating | 28 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Fuel Type | Flex |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 54 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604160374 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0402 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | M10030, MU1332, MU1435 |
| AUTOBEST | F2689A |
| Airtex | E3678M |
| AutoZone | DFG0402 |
| Bosch | 67571, 66076 |
| Carquest | M3480498 |
| Carter | P76088B, P76088M |
| EVO Driveline | RE0913S |
| GMB | 530-2275 |
| General Motors | 19133516, 19153041, 19153042, 25366555, 25371045, 25384425, 25384426, 19303381, 19303384, 19331946, 19331949 |
| Magneti Marelli | 1AMFP00130 |
| N/A | USEP3678M, F2689A, C0247M, 4010476 |
| Precision Fuel | A30188 |
| Spectra Premium | SP3678M, SP61435M |
| TYC | 150109-A |
DELPHI FG0402 Fits Vehicles
- GMC Savana 3500 (2004-2008)
- GMC Savana 2500 (2004-2008)
- GMC Savana 1500 (2004-2008)
- Chevrolet Express 3500 (2004-2008)
- Chevrolet Express 2500 (2004-2008)
- Chevrolet Express 1500 (2004-2008)
