Gates 26235 - Molded Turbocharger Hose Kit
$10499
MSRP: $121.10
Save: $16.11
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

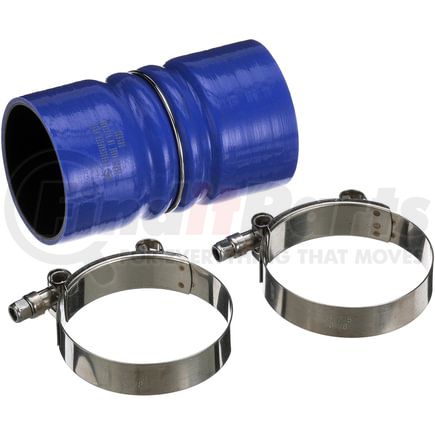

Molded Turbocharger Hose Kit
Application Summary
2012-10 Dodge, Ram Series Pickup, 6-Cyl. 6.7 L Diesel, Pipe To Intercooler (Hot Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 5.12 IN |
| End 1 Inside Diameter | 2.72 in |
| End 2 Inside Diameter | 2.72 in |
| Minimum Clamping Length | 2.88 IN |
| Maximum Clamping Length | 3.19 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 1 |
| Centerline Length | 130 MM |
| End 1 Inside Diameter | 69 MM |
| End 2 Inside Diameter | 69 MM |
| Minimum Clamping Length | 73.2 MM |
| Maximum Clamping Length | 81 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075604877 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
Part Interchanges
Fits Vehicles
- Ram 3500 (2011-2012)
- Dodge Ram 2500 (2010)
- Dodge Ram 3500 (2010)
- Sterling Truck Bullet 55 (2010)
- Dodge Ram 4500 (2010)
- Ram 2500 (2010-2012)
- Sterling Truck Bullet 45 (2010)
- Ram 5500 (2011-2012)
- Ram 4500 (2011-2012)
- Dodge Ram 5500 (2010)
