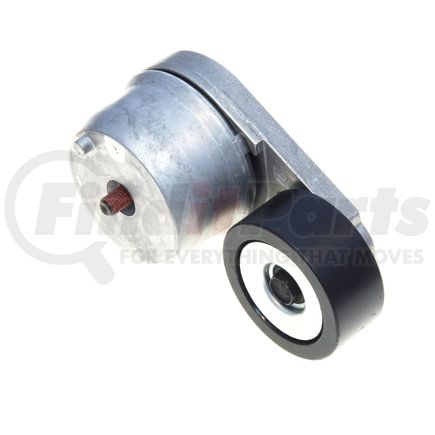

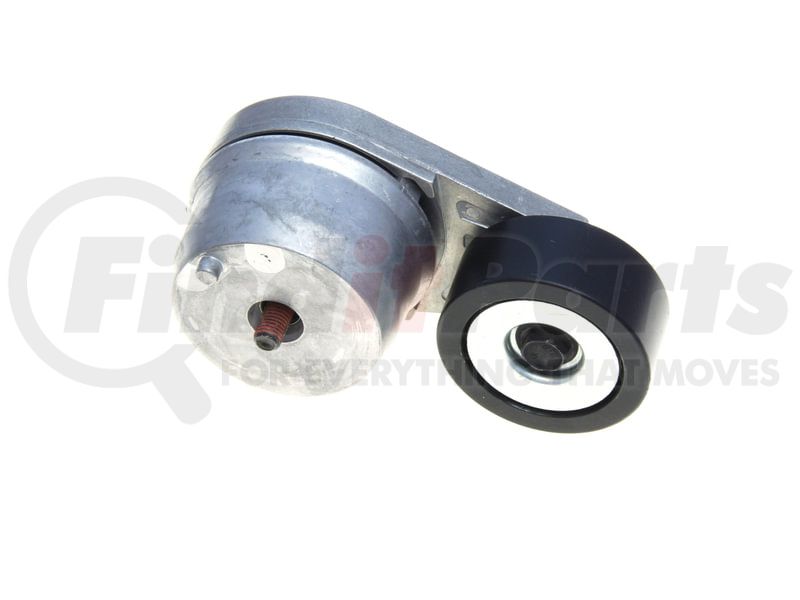

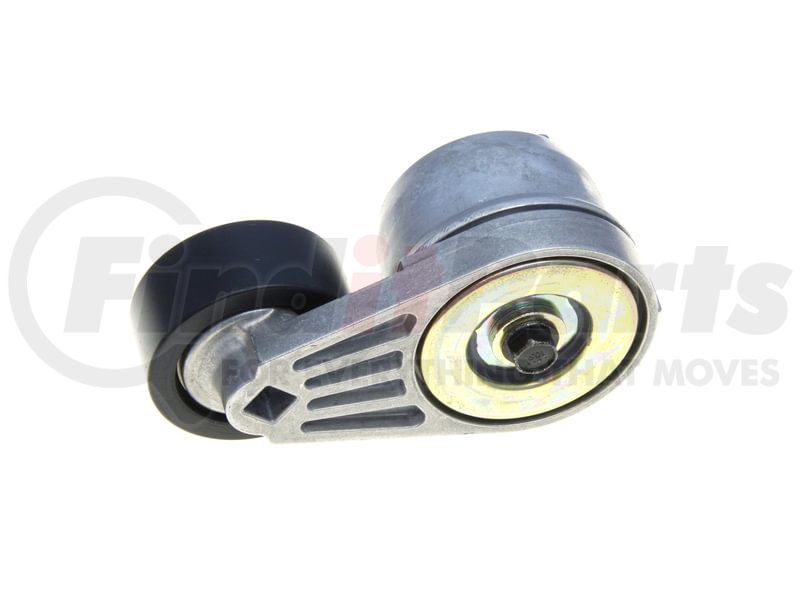

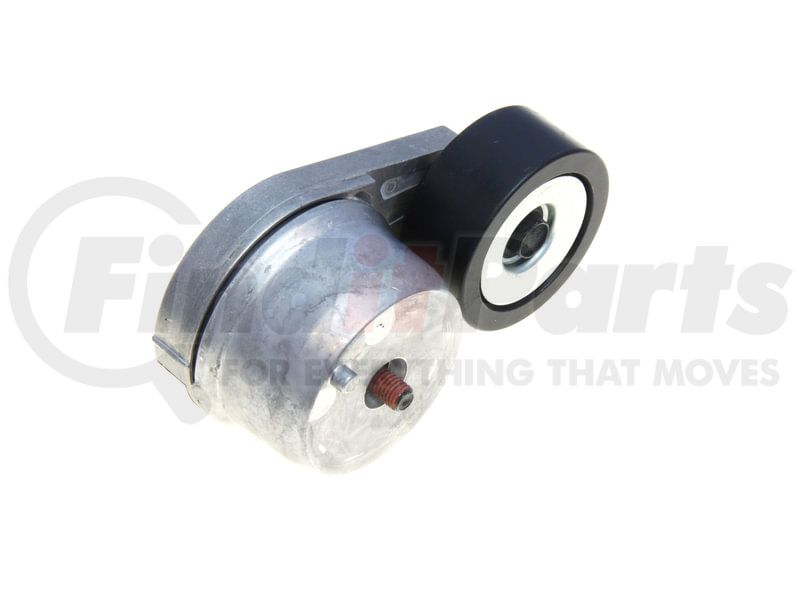

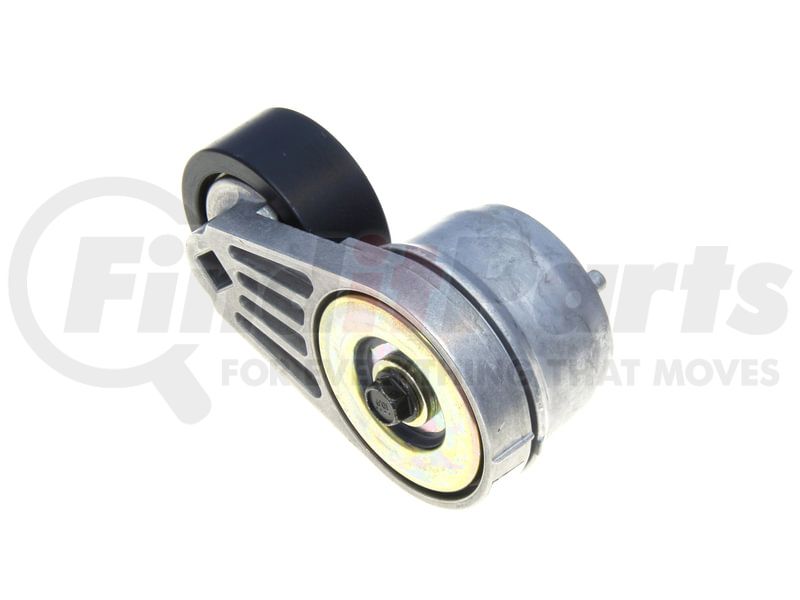

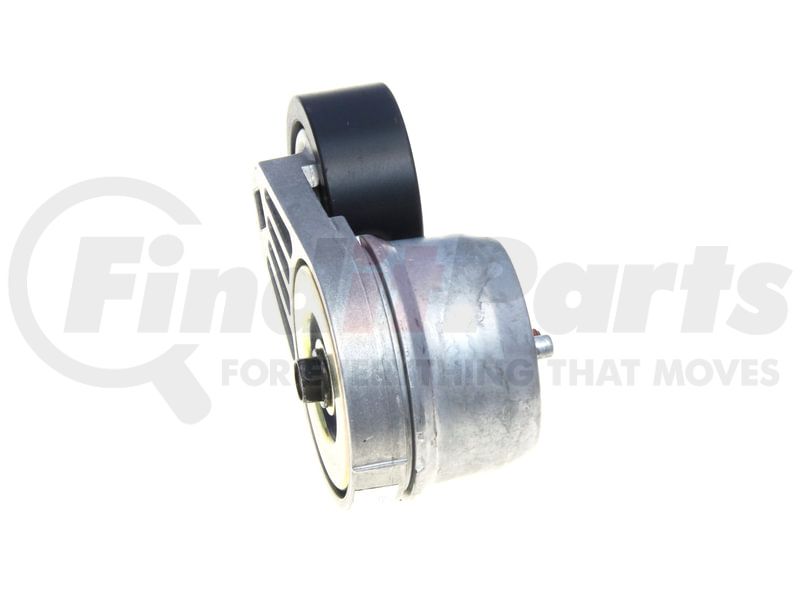

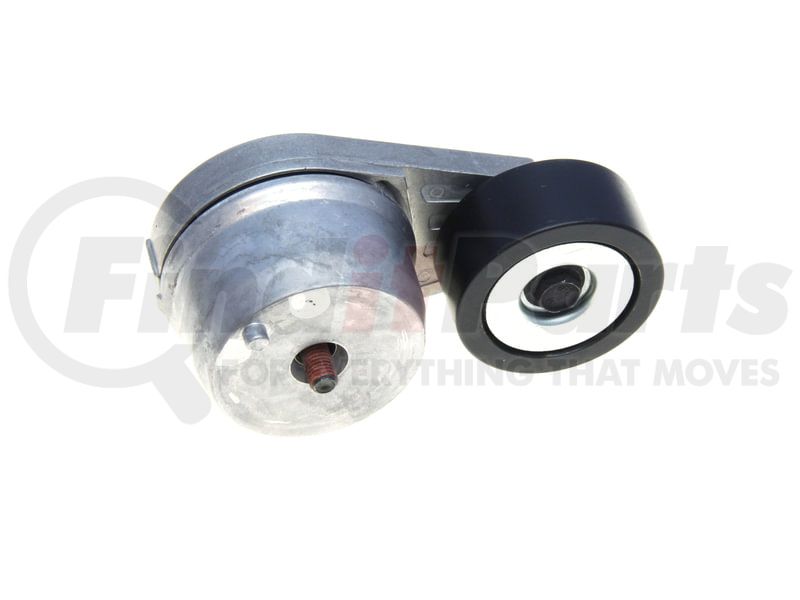

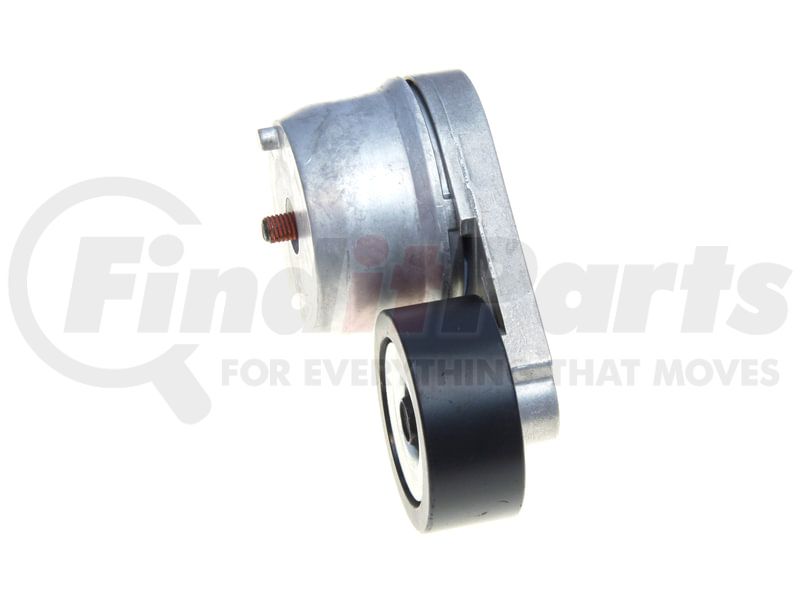

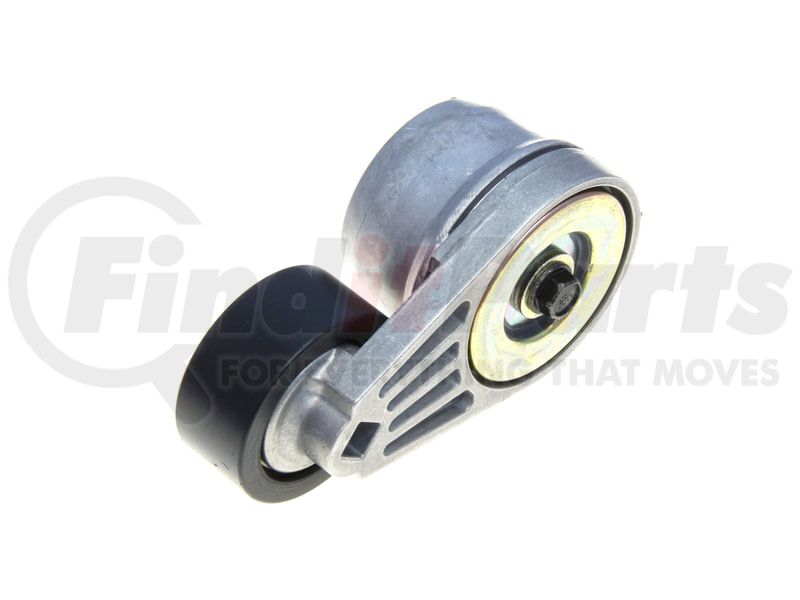

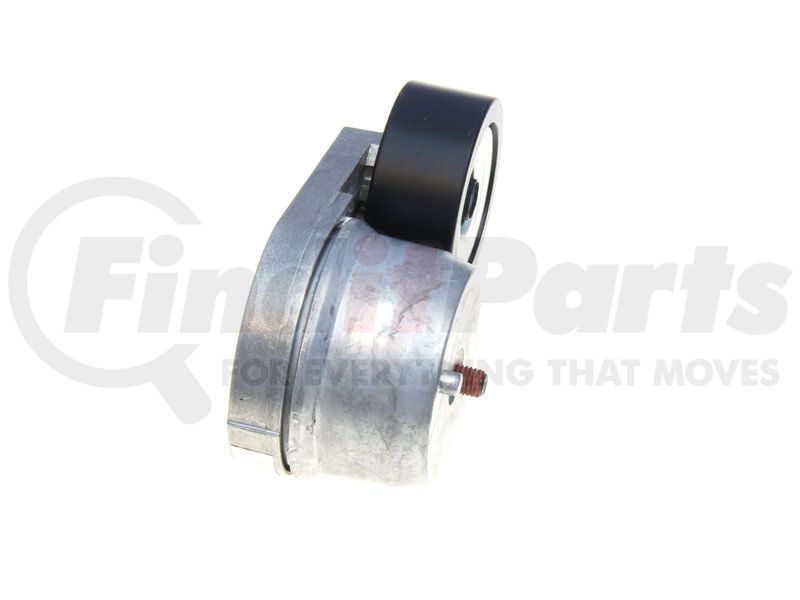

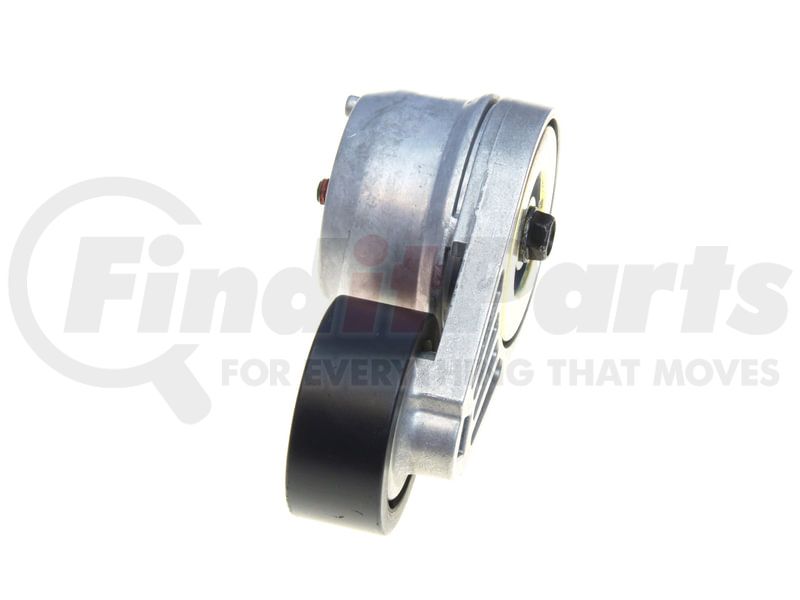

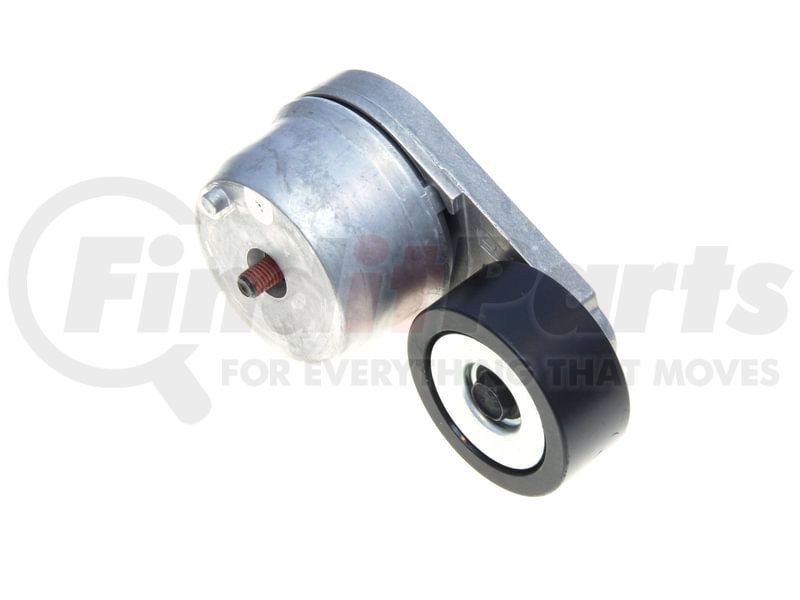

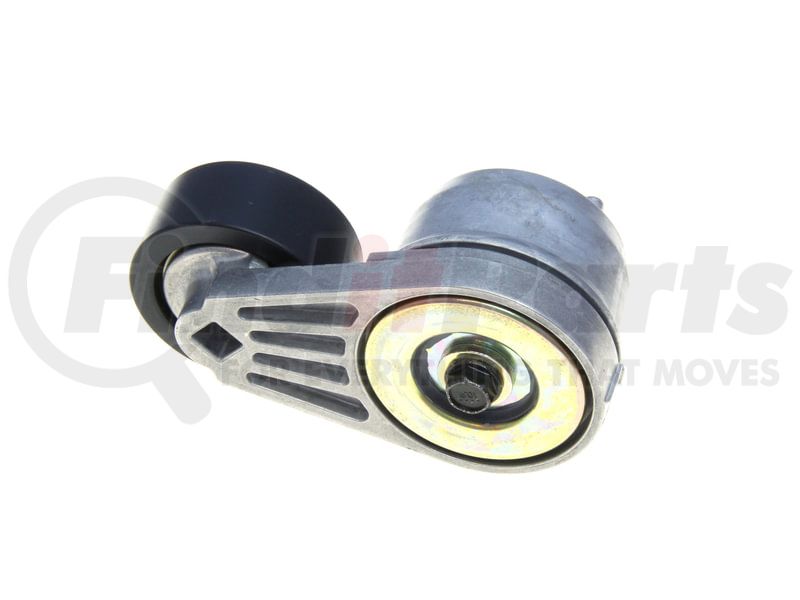

(888) 312-8812 Login SignupGATES 38517 Pulleys and Tensioners - Green Stripe DriveAlign Heavy-Duty Belt Tensioner
Tap to view 11 more
$14849
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
GATES 38517 Part Description
Manufacturer
Product Description
FleetRunner Heavy-Duty Automatic Belt Drive Tensioner
Application Summary
1996-1992 Ford, F800, Cummins B Series 5.9 L Diesel, Tensioner Assy. - Fan & Alt.
Features & Benefits
- Spring-loaded arm creates a movable tensioning point along the belt path
- Metal pulley surface provides a smooth contact area for the belt
- Shape keeps the tensioner within the accessory drive layout
- Cast housing gives the unit a firm mechanical structure
Gates Accessory Drive Belt Tensioner
The Gates Accessory Drive Belt Tensioner maintains proper belt tension across the accessory drive system. It applies controlled force to the belt, keeping it aligned with the pulleys as the engine operates. Movement in the tensioner allows it to respond to changes in belt load and engine speed, preventing slack or misalignment. Over time, wear in this component can affect how the belt tracks across the system. Installed along the belt path, the Gates 38517 keeps that tensioning function in place.
GATES 38517 Specifications
Product Attributes
| Pulley Quantity | 1 |
| Groove Quantity | 0 |
| Material | Steel |
| Contact Surface | Smooth/Backside |
| Pulley 1 Flanged | No |
| Outside Diameter | 2.95 IN |
| Bearing Bore Inside Diameter | 1.18 IN |
| Width | 1.28 IN |
| Belt Type | V-Ribbed |
| Mounting Hole Quantity | 1 |
| Contents | Tensioner Assy., Bolt |
| Pulley 1 Groove Quantity | 0 |
| Outside Diameter 1 (in) | 2.95 |
| Outside Diameter 1 (mm) | 75 |
| Width 1 (in) | 1.28 |
| Width 1 (mm) | 32.5 |
| Bearing Bore Inside Diameter | 30 MM |
Additional Information
| Country of Origin (Primary) | CA |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Stock Status | S |
| UPC | 00072053674835 |
| VMRS Code | 042003076 |
| UNSPSC | 26111805 |
GATES 38517 Cross References
| Brand | Part Number |
|---|---|
| 77801017, GT38517 | |
| 4-SEASONS | 45825 |
| ACDelco | 38517 |
| Alliance Truck Parts | GT38517 |
| BANDO | 680081 |
| CARQUEST | 38517 |
| CONTINENTAL AG | 49517, 49027 |
| Carquest | 89407 |
| Continental Belt | 4011 |
| Cummins | 3976833, 3978021, 3921524, 3924026, 3929428, 3930269, 3930769, 3934814, 3934815, 3934816, 3936197, 3936198, 3957433 |
| DAYCO | 89491 |
| DORMAN | 419-375 |
| Dayco | 89490, 89407 |
| GOODYEAR BELTS | 55907 |
| Goodyear | 49517 |
| KIT MASTERS | 689407, 689403 |
| Litens | 910007A |
| NAPA Belts/Hose | 38517 |
| NAVISTAR | FLT689407 |
| SKF | VKM910007 |
| Tendeco | 910007 |
GATES 38517 Fits Vehicles
- Freightliner XC Raised Rail (2005)
- Freightliner XC Straight Rail (2005)
- Kenworth T300 (2003-2007)
- Freightliner XC (2005)
- Freightliner FC80 (2001, 2003-2007)
- Freightliner MT55 (2004-2007)
- Freightliner FC70 (1999-2004)
- Freightliner MT45 (2004-2006, 2010)
- Ford B-800 (1995-1998)
- Ford F-750 (2005-2007)
- Thomas Saf-T-Liner (2005)
- Ford F-650 (2005-2007)
- Ford LN7000 (1993-1997)
- Ford F-800 (1993-1999)
- Ford F-700 (1992-1997)
- Ford F-600 (1992-1994)
- Ford F-700 LPO (1993-1994)
- Blue Bird Vision School Bus (2007)
- Sterling Truck SC8000 Cargo (1999-2007)
- Blue Bird All American FE (2007)
- Ford F-800 LPO (1995-1998)
- Ford F-600 LPO (1993-1994)
- Sterling Truck SC7000 Cargo (1999-2003)
