CENTRIC 120.04003 Part Description
Manufacturer
Product Description

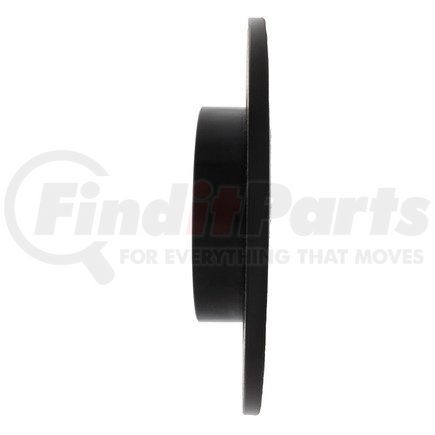

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.04003 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] In | 5.307 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 3.820 |
| Misc Holes [cntrc] | 5 |
| Hat Id [cntrc] Mm | 134.800 |
| Weight [cntrc] Lbs | 8.400 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.000 MM |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Painted |
| Overall Height | 40.600 MM |
| Overall Height | 1.598 IN |
| Outside Diameter | 264.000 MM |
| Outside Diameter | 10.394 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 59.000 MM |
| Center Hole Diameter | 2.323 IN |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Diameter | 13.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890966821 |
CENTRIC 120.04003 Cross References
CENTRIC 120.04003 Fits Vehicles
- Fiat 500L (2014-2020)
