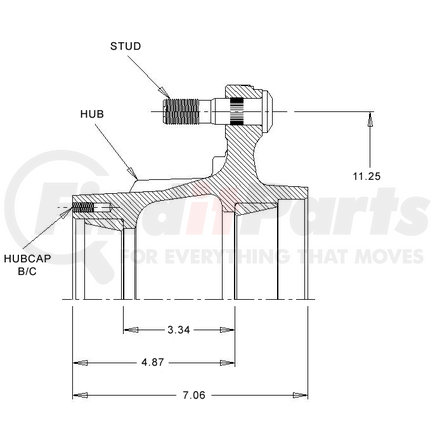

(888) 312-8812 Login SignupWEBB 10209--ML Hub Assembly, Driver Side (LH), Ductile Iron, 10 Studs, Outboard Mount
Tap to view 1 more
$47099
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
WEBB 10209--ML Part Description
Manufacturer
HUB INFORMATION
| Part Number | 10209--MLT |
| Hub Number | 1020 |
| Description | 10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (3/4"-16) Shoulder Stud |
| Hub Material | Cast |
| Mounting Type | BSN |
| Drum Type | Outboard |
| Disc Wheel | Steel/Alum (Dual) |
| Wheel Stud | 159183 |
| Stud Stand Out | 1.36 |
| ABS Ring | 51554 |
| Drum Options | 61571F, 66853B, 66893F, 66815F, 66812F |
| Drum Type | Outboard |
| Number of Studs | 10 |
| Bolt Circle | 11.25 |
| Stud Description | 3/4"-16 Serrated Stud |
| Outer Bearing Cup | HM212011 |
| Outer Bearing Cone | HM212049 |
| Inner Bearing Cup | HM218210 |
| Inner Bearing Cone | HM218248 |
| Webb Axle Group | 2 |
| Cup Code | 9 |
| Notes |
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels. Grease Hubcap Kit: 73655 |
WEBB 10209--ML Specifications
Product Attributes
| Overall Depth | 12.8 in |
| Hole Count | 10.0 |
| BOLT CIRCLE | 11.25 in |
| Material | Ductile Iron |
| Wheel Interface | Hub Piloted (TN) |
| Mount Style | Outboard |
WEBB 10209--ML Cross References
| Brand | Part Number |
|---|---|
| W301201A, WEB10209--ML |
WEBB 10209--ML Customer Reviews
No reviews yet
Be the first to review this product!
WEBB 10209--ML Manufacturer Information
In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
