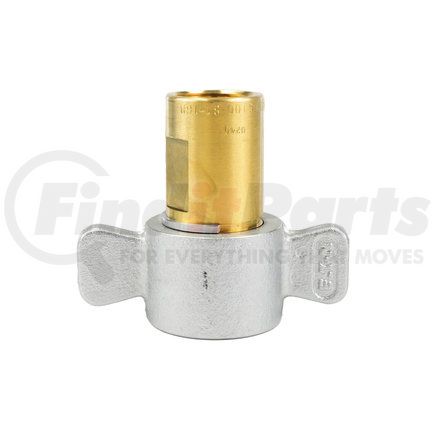

WEATHERHEAD 5100-S5-16B - Hansen and Gromelle Coupling - Coupling, FD51, Female Half BUNA-N, W/ WING Nut
- Part Number
- 5100-S5-16B
- Manufacturer
- WEATHERHEAD
- Description
-
Hansen and Gromelle Coupling - Coupling, FD51, Female Half BUNA-N, W/ WING Nut
details
$11499
MSRP: $425.10
Save: $310.11
In stock
limited availability at this price!
. Learn more
WEATHERHEAD part description
California Proposition 65 Warning
California Proposition 65 Warning
| A in | 3.68 |
| Air Inclusion (cc. max) | 0.5 |
| B in | 4.38 |
| Body interface size | 16 |
| Coupling Size | 16 |
| Coupling Type | Female |
| Description | Female NPT, Valve WITH Wing Nut Less Flange |
| Family | 5100 Series |
| Fig. | 6 |
| Fluid Loss (cc. max) | 0.35 |
| Hex1 (in) | 1.44 |
| Max. Operating Pressure (Connected)- Hydraulic (ps | 3000 |
| Max. Operating Pressure (Disconnected) (psi) | 3000 |
| Port/Tube Outside Diameter Size | 16 |
| Rated Flow (LPM) | 151 |
| Rated Flow (gpm) | 40 |
| Sub-Title | Thread to Connect |
| Thread (P) | 1-11 1/2 |
| Type | Female NPT |
| Vacuum (Connected only ) (in./Hg) | 28 |
Eaton Weatherhead 5100 Series Coupling
The Eaton Weatherhead Hansen and Gromelle 5100 Series coupling ensures minimal air inclusion during connection for consistent and dependable system performance. Its tubular valve construction guarantees lower environmental and worker safety hazards.
Features & Benefits
- Brass body and Buna-N seal material for unmatched durability and leak-free functionality
- Comes with steel flange for accessible bulkhead mounting
- Tubular valve ensures no fluid loss during disconnection
- Meticulously tested to withstand high pressures, extreme temperatures, impact, and vibration
- Not rated for continuous hydraulic impulse applications
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
