Name: NGK Spark Plugs 1507 NGK Standard Carded Spark Plug
SKU: 1507
Price: 5.49 USD
Availability: InStock

NGK SPARK PLUGS part description

Product Description

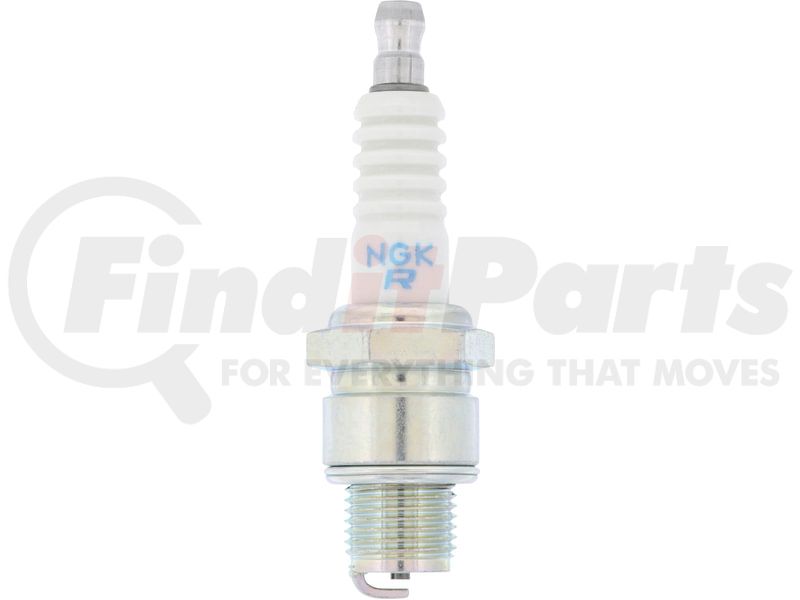

NGK Standard Carded Spark Plug

Features & Benefits

NGK Standard spark plugs are proven technology that offer reliable performance. Actual OE or equivalent replacement spark plug. NGK Standard plugs are treated with corrosion-resistant plating to ensure ease of installation and removal.
ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
NGK Standard plugs are an OE cornerstone that have provided decades of reliable performance. Engineered specifically for OE applications.
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
The solid Copper Core offers superior heat dissipation, conductivity and broad heat range. For even greater performance consider upgrading to a NGK Iridium IX Spark Plug.
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Product Attributes

Part Number	BR6HS BLYB
Stock Number	1507
Resistance	5000.0 82
Ground Electrode Tip Design	Standard

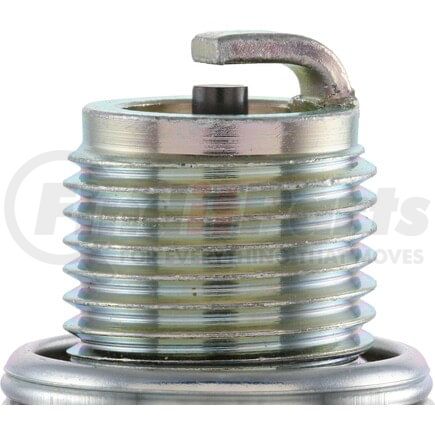

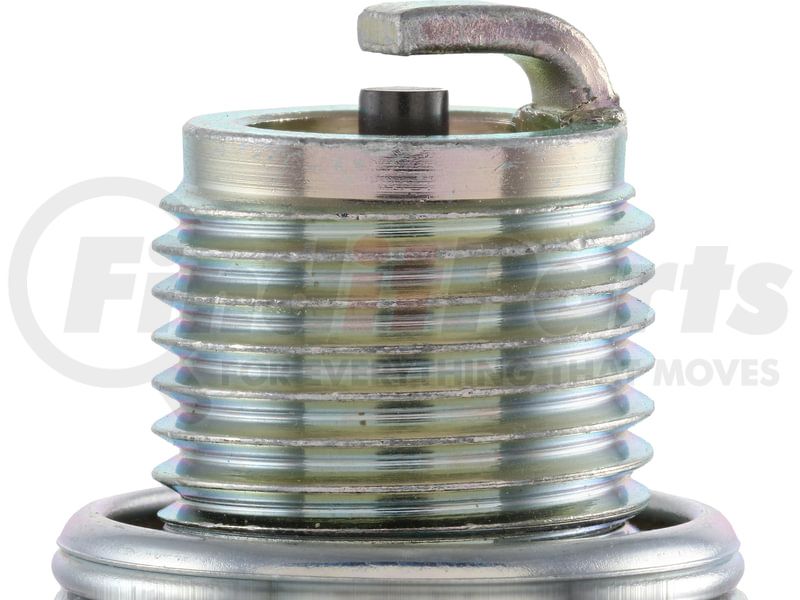

Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Nickel
Pre-Gap Size	.028 IN
Ground Electrode Quantity	1
Hex Size	13/16 IN
Insulator Height	55.00 MM
Manufacturer Heat Range	6
Seat Type	Flat
Reach	0.500 IN
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	BR6HS BLYB
Washer Included	Yes
Grade Type	Regular
Hex Size	13/16"
Insulator Height	2.14 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Nickel
9459	No
9506	0.04 IN
9608	Standard
9745	Crush
9805	Non-Projected

Additional Information

Harmonized Tariff Code (HTS)	8511100000
Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
UPC	00087295015070
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Cub Cadet Challenger 400 4x4 (2018)
Cub Cadet Challenger 400 (2016-2018)
Cub Cadet Challenger 400 LX (2016-2018)
Yamaha LB80 Chappy (1977)
Yamaha LB50 Chappy (1978-1982)
Yamaha LB80 II Chappy (1976-1978)
Kubota RTV400Ci (2012-2018)
KTM 50 SXR Pro Sr (1997)
KTM 50 SXR Pro Jr (1997)
Yamaha LB50 (1981-1982)
Arctic Cat Kitty Cat (1977-1981, 1985-1999)
Yamaha TY80 (1974-1975)
Honda MR50 (1974-1975)
