NGK SPARK PLUGS part description

Product Description

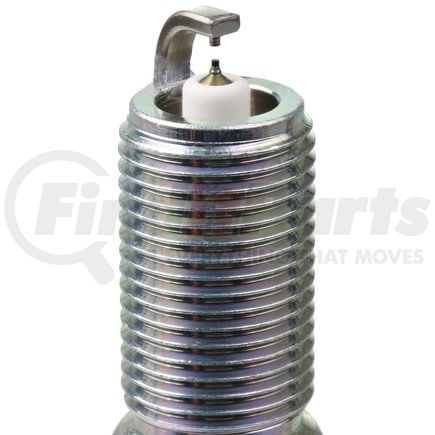

NGK Ruthenium HX High Ignitability Spark Plug

Features & Benefits

  • HIGH IGNITABILITY DOUBLE FINE ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
  • RUTHENIUM ALLOY CENTER ELECTRODE: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
  • PLATINUM PIN TYPE GROUND ELECTRODE: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology

Product Attributes

Stock Number 91276
Part Number LTR6AHX
Resistance 5000 82
Ground Electrode Tip Design Dual Fine Electrode - High Ignitability
Ground Configuration Standard
Ground Electrode Core Material Nickel
Electrical Terminal Type Non-Removable Nut
Center Electrode Core Material Copper
Center Electrode Tip Material Ruthenium
Pre-Gap Size .044 IN
Ground Electrode Quantity 1
Hex Size 5/8 IN
Insulator Height 52.50 MM
Manufacturer Heat Range 6
Seat Type Tapered
Reach 25.00 MM
Thread Diameter 14.00 MM

Additional Information

Harmonized Tariff Code (HTS) 8511100000
Warranty Time UOM MO
Warranty Time 2
Country of Origin (Primary) JP
UPC 00087295912768
VMRS Code 033003005
UNSPSC 26101732

Part Interchanges

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
