CENTRIC 120.6509 Part Description
Manufacturer
Product Description

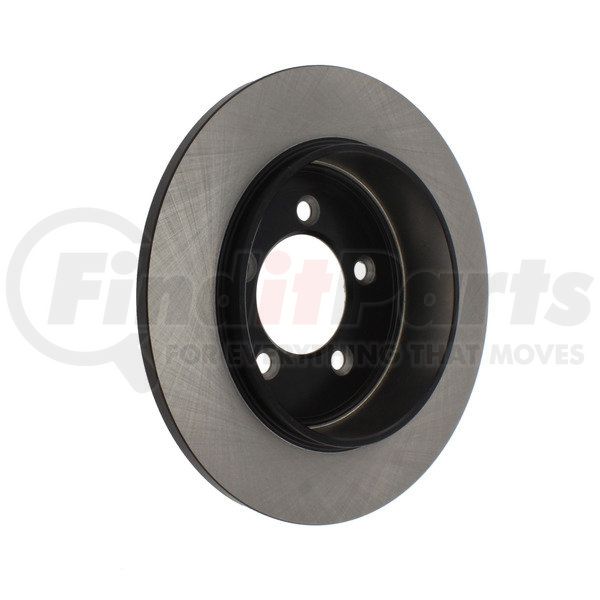

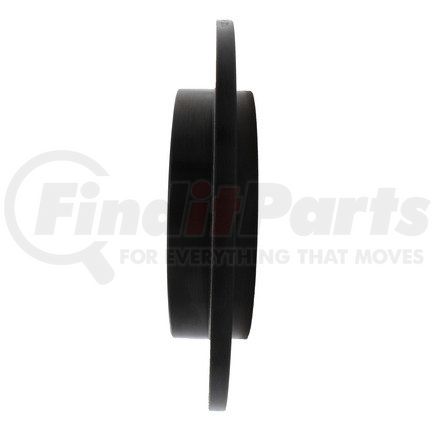

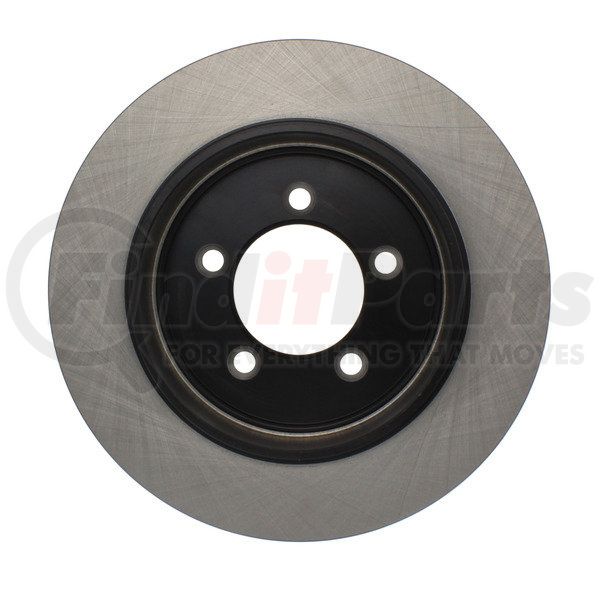

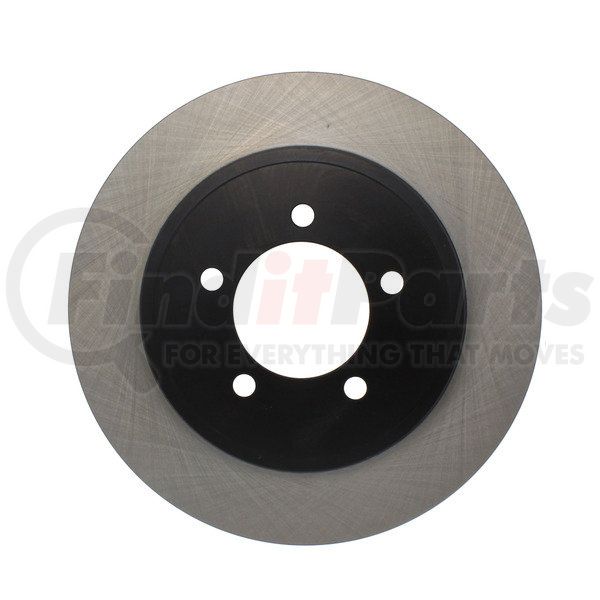

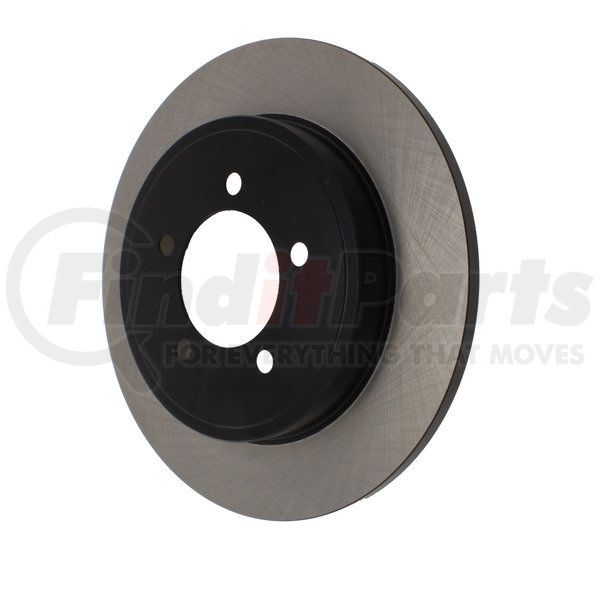

Centric Premium Brake Rotor
Application Summary
Ford Explorer 2010-2002, Explorer Sport Trac 2010-2007, Mercury Mountaineer 2010-2002
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
CENTRIC 120.6509 Specifications
Product Attributes
| Discard Thickness | 11.000 MM |
| Nominal Thickness | 0.476 IN |
| Hat Finish | Coated |
| Overall Height | 2.291 IN |
| Outside Diameter | 301.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 184.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 3.228 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.700 MM |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.272 |
| Max Pb Drum Dia [cntrc] Mm | 184.700 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 6.360 |
| Weight [cntrc] Lbs | 14.000 |
| Discard Thickness | 0.433 IN |
| Nominal Thickness | 12.100 MM |
| Overall Height | 58.200 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Disc Mounting | Floating / DIH |
| Maximum Drum Diameter | 7.272 |
| Misc Holes | 0 |
| Weight | 6.360 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890166399 |
CENTRIC 120.6509 Cross References
CENTRIC 120.6509 Fits Vehicles
- Mercury Mountaineer (2002-2010)
- Ford Explorer Sport Trac (2007-2010)
- Ford Explorer (2002-2010)
