CENTRIC 120.80010 Part Description
Manufacturer
Product Description

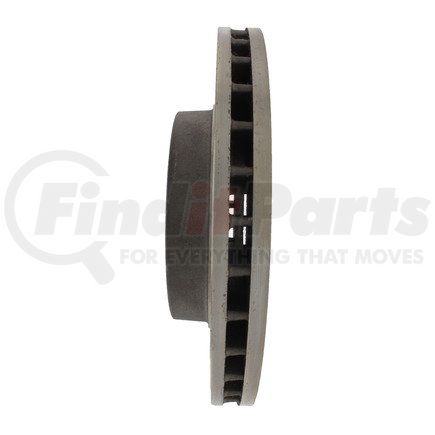

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.80010 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Hat Shaped |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 15.230 |
| Weight [cntrc] Lbs | 33.500 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.320 IN |
| Discard Thickness | 33.530 MM |
| Nominal Thickness | 1.435 IN |
| Nominal Thickness | 36.450 MM |
| Overall Height | 75.400 MM |
| Overall Height | 2.969 IN |
| Outside Diameter | 362.000 MM |
| Outside Diameter | 14.252 IN |
| Mounting Bolt Hole Quantity | 6 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 4.598 IN |
| Center Hole Diameter | 116.800 MM |
| Mounting Bolt Hole Circle Diameter | 6.000 IN |
| Mounting Bolt Hole Circle Diameter | 152.400 MM |
| Mounting Bolt Hole Diameter | 13.590 MM |
| Mounting Bolt Hole Diameter | 0.535 IN |
| Hat Finish | Painted |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890036760 |
CENTRIC 120.80010 Cross References
CENTRIC 120.80010 Fits Vehicles
- GMC P60 (1983-1990)
- Chevrolet P60 (1983-1990)
- GMC P6000 (1983-1990, 1992-1996)
- GMC C7000 (1988-1990)
- GMC C6000 (1988-1990)
- GMC C5000 (1988-1990)
- Chevrolet C70 (1988-1990)
- Chevrolet C60 (1988-1990)
- Chevrolet C50 (1988-1990)
- GMC P4500 (1988-1990)
- Chevrolet P40 (1988)
