CENTRIC 121.62010 Part Description
Manufacturer
Product Description

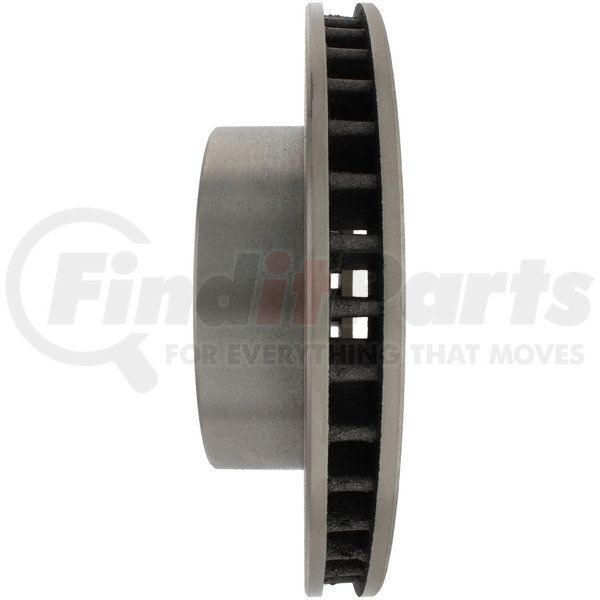

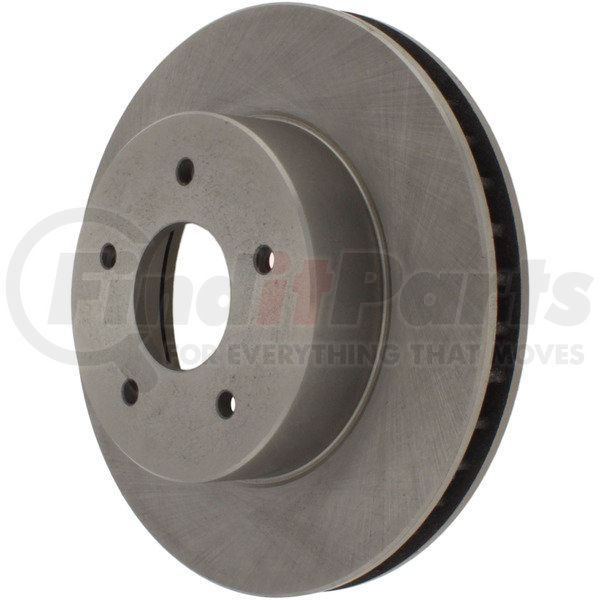

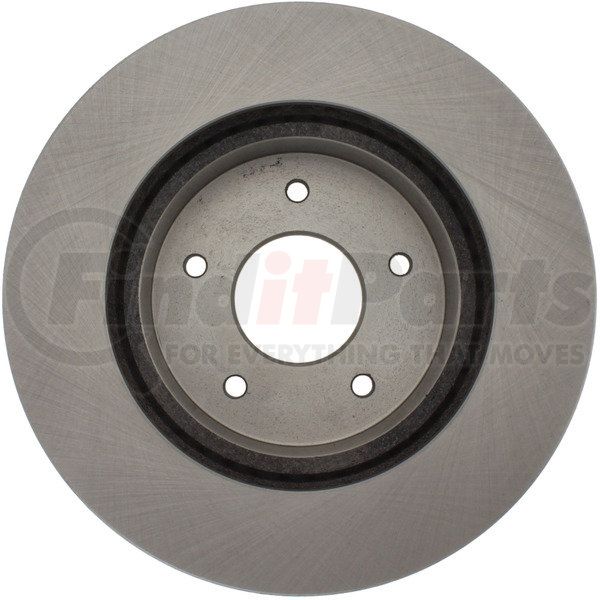

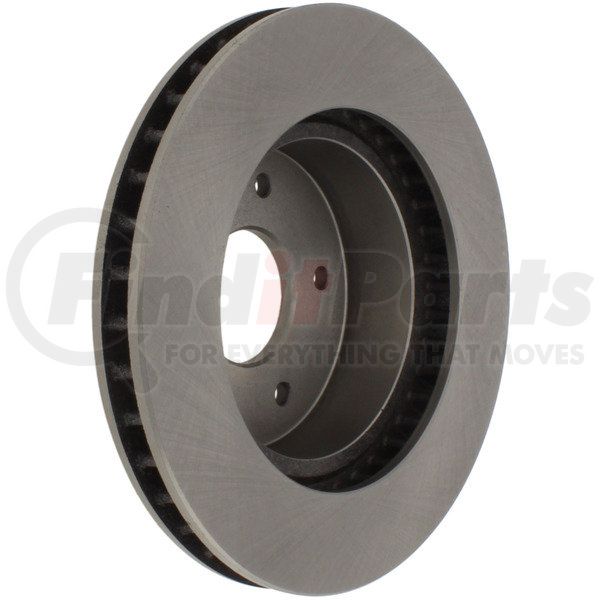

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.62010 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.090 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 20.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Standard |
| Discard Thickness | 1.215 IN |
| Discard Thickness | 30.860 MM |
| Nominal Thickness | 31.750 MM |
| Nominal Thickness | 1.250 IN |
| Overall Height | 3.079 IN |
| Overall Height | 78.200 MM |
| Outside Diameter | 298.200 MM |
| Outside Diameter | 11.740 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 71.500 MM |
| Center Hole Diameter | 2.815 IN |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.457 IN |
| Stud/Lug Hole Diameter | 11.600 MM |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890049678 |
CENTRIC 121.62010 Cross References
| Brand | Part Number |
|---|---|
| MAGMA PRODUCTS | PMR223001 |
| N/A | BD60240, 52-60240, 5260240, 5544, BR5544, R93840, 5544G, 107208, 03991024, 03998278, 3991024, 3998278, 19174916, PRT1212, 141212, 101440, 85748, 503, AR8210E, D5004, X50272, BR1207, 105500, 5500, 5500R, 78-36010, 7836010, 78936010, 60047011, 18A102, 177641 |
| PRONTO | BR5544 |
| RAYBESTOS | 5500, 5500R |
| WAGNER | BD60240 |
CENTRIC 121.62010 Fits Vehicles
- Chevrolet Corvette (1963-1982)
