(888) 312-8812 Login SignupRAYBESTOS 5500 Raybestos Specialty - Street Performance Brake Rotor
MSRP: $125.95
$10099
Save $24.96
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
RAYBESTOS 5500 Part Description
Manufacturer
Product Description

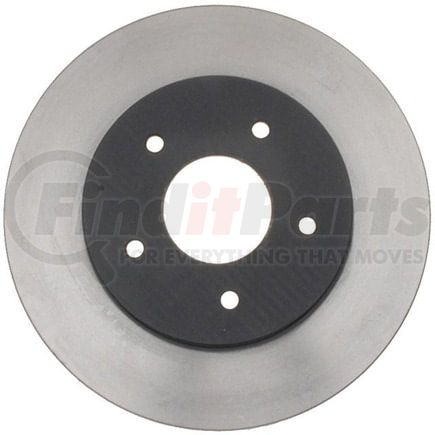

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1982-1963 Chevrolet Corvette Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 5500 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.814 IN |
| Center Hole Diameter | 71.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.215 IN |
| Discard Thickness | 30.85 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.75 IN |
| Mounting Bolt Hole Circle Diameter | 120.65 MM |
| Mounting Bolt Hole Diameter | 0.45 IN |
| Mounting Bolt Hole Diameter | 11.45 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 11.75 IN |
| Outside Diameter | 298.45 MM |
| Overall Height | 3.08 IN |
| Overall Height | 78.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999078780 |
RAYBESTOS 5500 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-505, 177-623, 177-649, 177-650 |
| ADVANCE AUTO PARTS | 141212, YH141212 |
| AUTOPART INTERNATIONAL | 25140 |
| AUTOSPECIALTY | AR8210, AR8210E |
| AUTOXTRA | 60240, AX5544 |
| AUTOZONE | 5544 |
| BENDIX | 141212 |
| BRAKE HEADQUARTERS | BR55440 |
| BRAKE PRO | 4615500 |
| BRAKEBEST | 5500, 5500R, 5500RGS, BD60240 |
| CALIFORNIA DRUM & ROTOR | 60240 |
| CENTRIC | 120.62010, 121.62010, 125.62010, 125.62010CRY, 126.62010CSL, 126.62010CSR, 126.62010SL, 126.62010SR, 127.62010CL, 127.62010CR, 127.62010L, 127.62010R, 128.62010L, 128.62010R, 227.62010L, 227.62010R, 228.62010DL, 228.62010DR, 320.62010F, 120.6201 |
| CENTURY | 5004 |
| Casting Numbers | 20961, 210261-C, 211543-C, 325605, 635004 |
| Centric Parts | 120.62010, 121.62010, 125.62010, 125.62010CRY, 126.62010CSL, 126.62010CSR, 126.62010SL, 126.62010SR, 127.62010CL, 127.62010CR, 127.62010L, 127.62010R, 128.62010L, 128.62010R, 227.62010L, 227.62010R, 228.62010DL, 228.62010DR, 320.62010F |
| DAYTON WALTHER | D4559 |
| DURA CORP | BR5544 |
| DuraGo | BR5544 |
| Dynamic Friction Company | 604-47011 |
| EIS BRAKES | D5004 |
| EUROROTOR | 5544 |
| GM | 3991024, 3998278 |
| GREN | 661802 |
| GUARDIAN | 52-60240 |
| General Motors | 3991024, 3998278 |
| HOLLANDER | 1337 |
| KELSEY HAYES | 14559, 86836 |
| MAGMA PRODUCTS | PSR223001 |
| MCI | 5070 |
| MIDAS | BR1207 |
| MIGHTY DISTRIBUTING SYSTEM | 5544 |
| N/A | 120.62101, 121.62101, 126.62101CSL, 126.62101CSR, 126.62101SL, 126.62101SR, 127.62101CL, 127.62101CR, 127.62101L, 127.62101R, 128.62101CL, 128.62101CR, 128.62101L, 128.62101R, 227.62101L, 227.62101R, 320.62101, 320.62101F |
| NEWTEK AUTOMOTIVE | 5544 |
| Newtek Automotive USA | 5544 |
| PARTS MASTER | P60240 |
| PRONTO | BR5544 |
| QUALIS | 5544 |
| QUALITEE INTERNATIONAL | 64-93-840 |
| QUALITY BRAND | 5544 |
| ROADMATES | 526058 |
| ROCKHILL | 5544 |
| STANDARD ROTORS AND DRUMS | 5544 |
| THE UNIVERSAL GROUP | 101440 |
| TRUSTAR | 493840, R93840 |
| UAP | 5544 |
| Universal | 101440 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50272 |
| WAGNER | BD60240 |
| WAGNER BRAKE | BD60240 |
| WINHERE | YH2284 |
RAYBESTOS 5500 Fits Vehicles
- Chevrolet Corvette (1963-1982)
